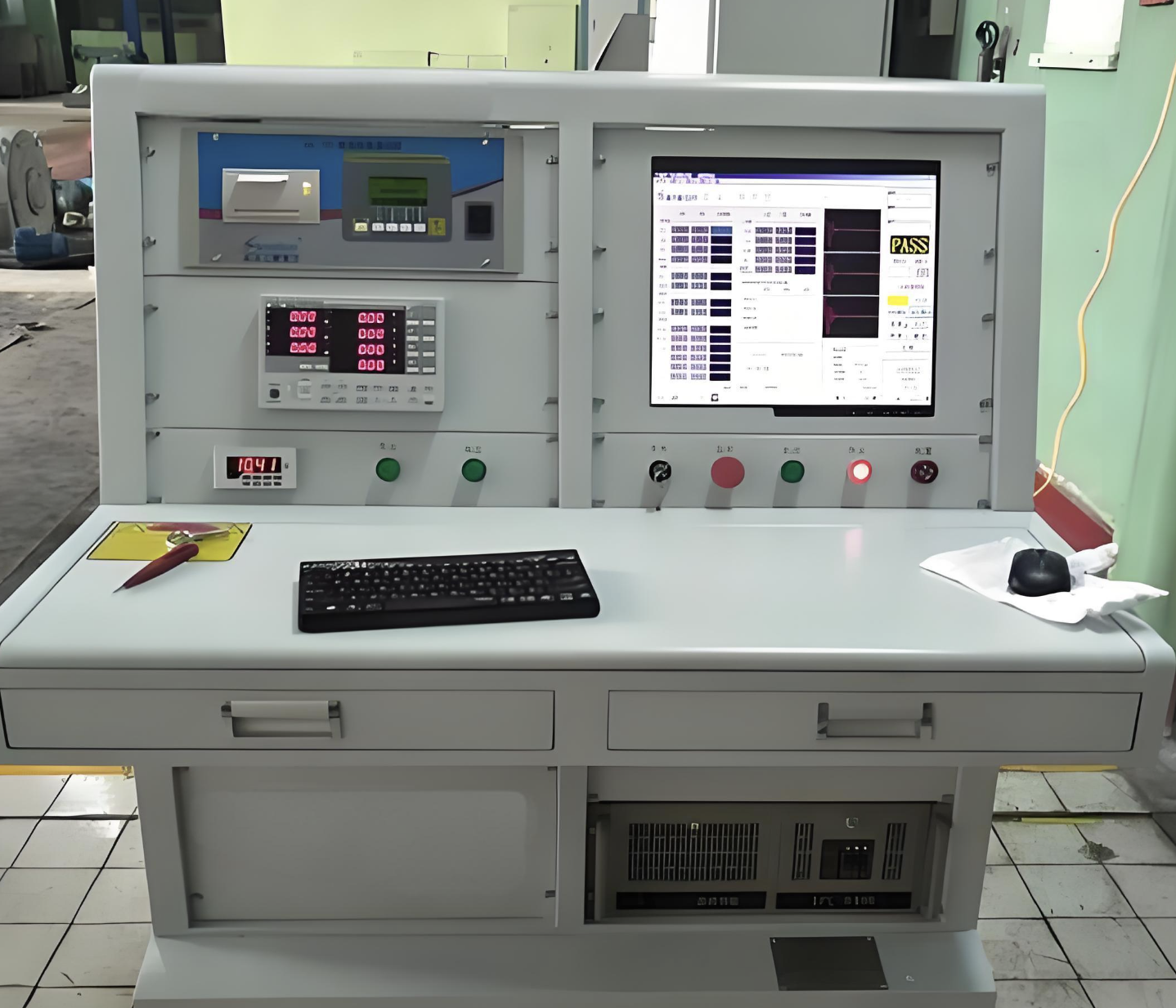

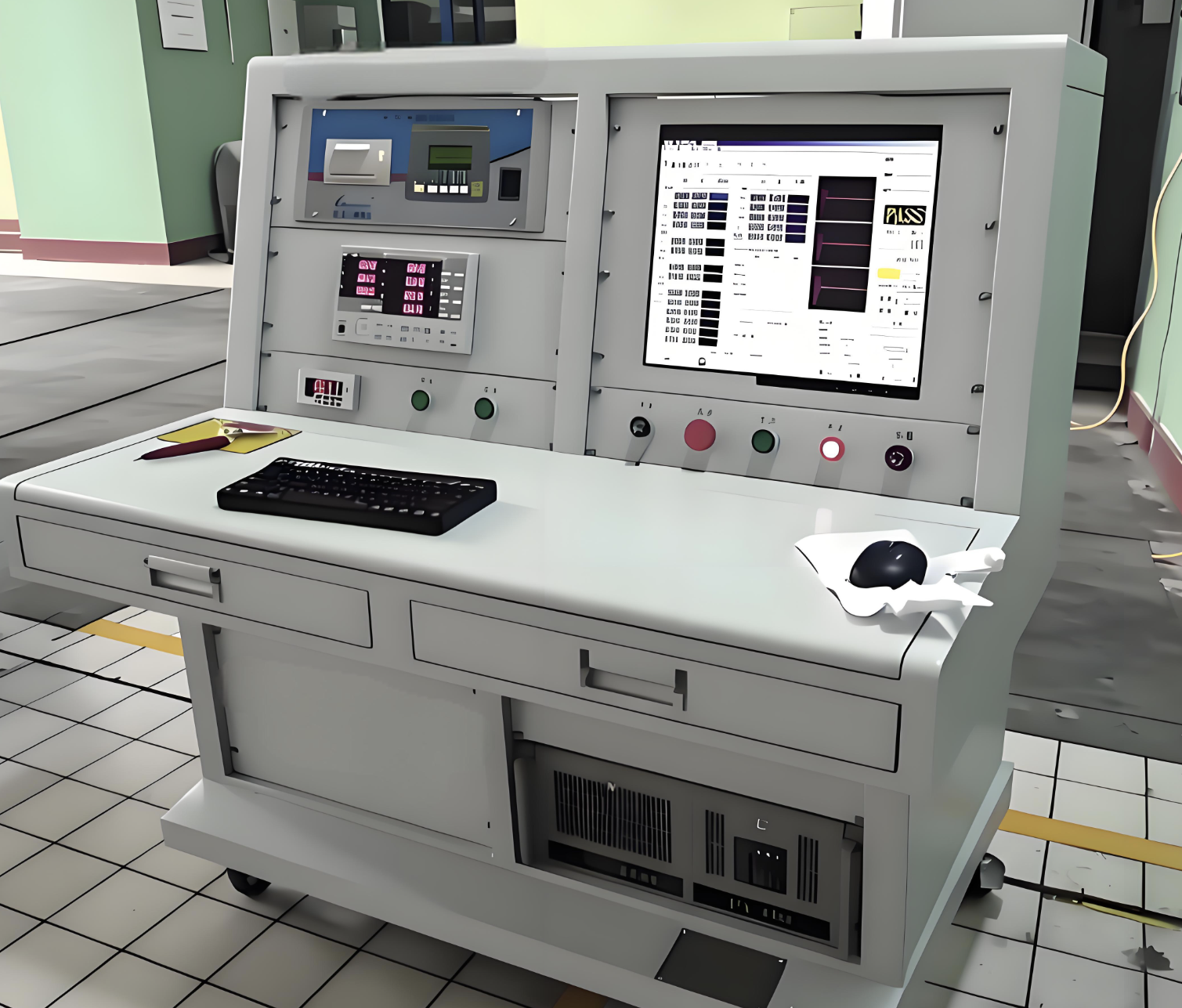

This test stand stands out for its modular design that allows for quick replacement of testing components to adapt to different motor specifications. It is equipped with a high-precision non-contact temperature rise detection system, which avoids contact interference with the motor surface and ensures accurate temperature measurement results. The built-in intelligent data analysis system can automatically identify abnormal parameters during the test and give early warning prompts. It supports remote data transmission and remote debugging, which can meet the needs of workshop centralized management. In addition, it has passed CE and ISO9001 certifications, ensuring the safety and reliability of long-term use in harsh industrial environments.
The overall size of the test stand is 1200mm (length) × 800mm (width) × 1600mm (height), with a net weight of 320kg. The maximum test speed can reach 15000 rpm, and it supports continuous testing for 8 hours without interruption. The data acquisition frequency can be adjusted from 10Hz to 1000Hz according to testing needs. The operating temperature range is 0℃ to 40℃, and the storage temperature range is -20℃ to 60℃. It is equipped with a 10-inch LCD human-machine interaction touch screen, supporting Chinese and English operating interfaces, which is convenient for operators of different levels to use. The test stand is also equipped with an emergency stop device and overcurrent protection function to ensure the safety of operators and tested equipment.
This test stand is mainly suitable for small and medium-sized motor manufacturing enterprises, motor repair shops, power distribution equipment maintenance teams and industrial equipment maintenance departments. It can be used for production line offline inspection of induction motors, asynchronous motors and other low voltage motors, acceptance inspection of purchased motors, performance detection of repaired motors, and regular performance monitoring of industrial motors. Typical application scenarios include motor factory production testing, mining equipment motor maintenance, water pump motor performance testing and fan motor performance evaluation.
