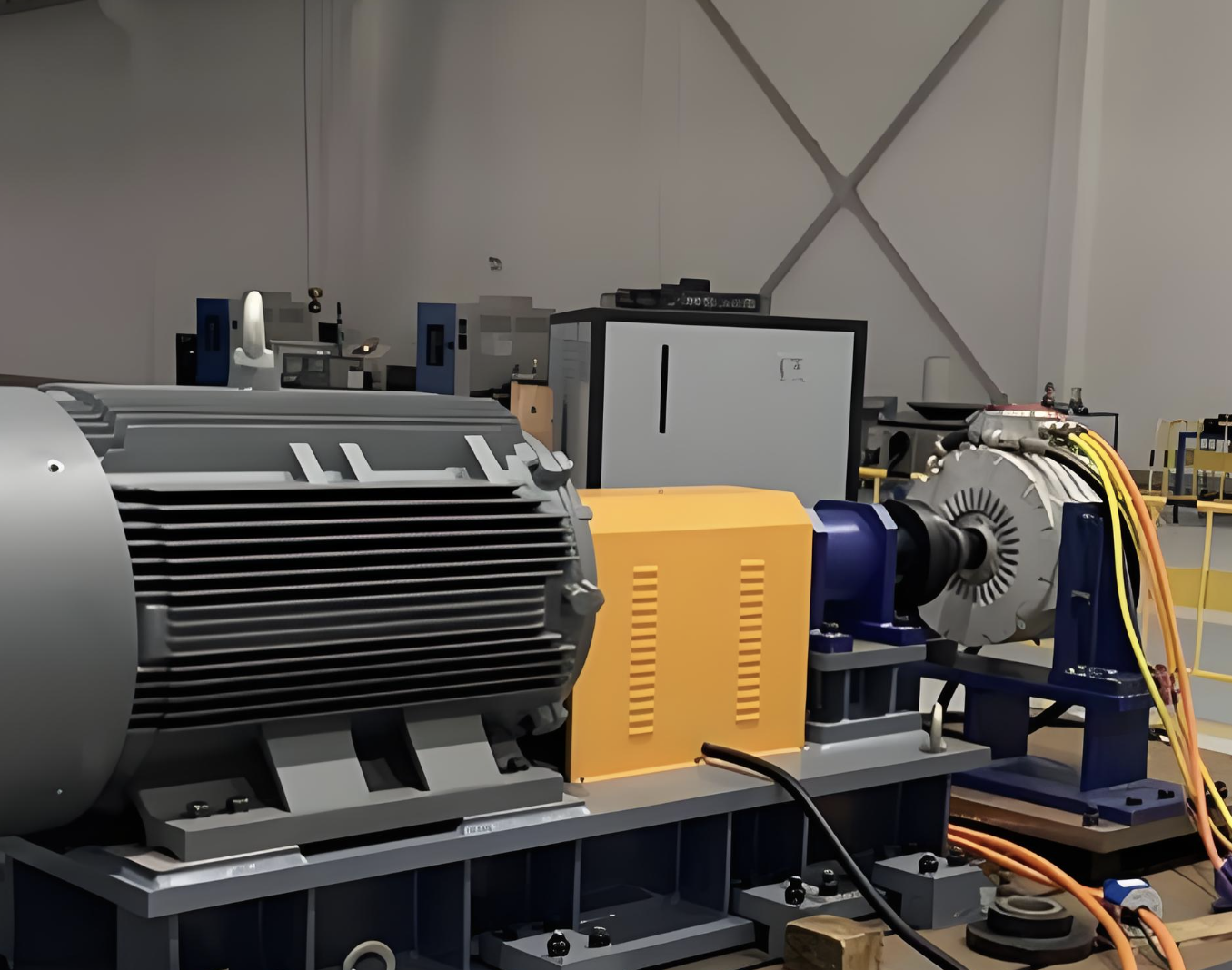

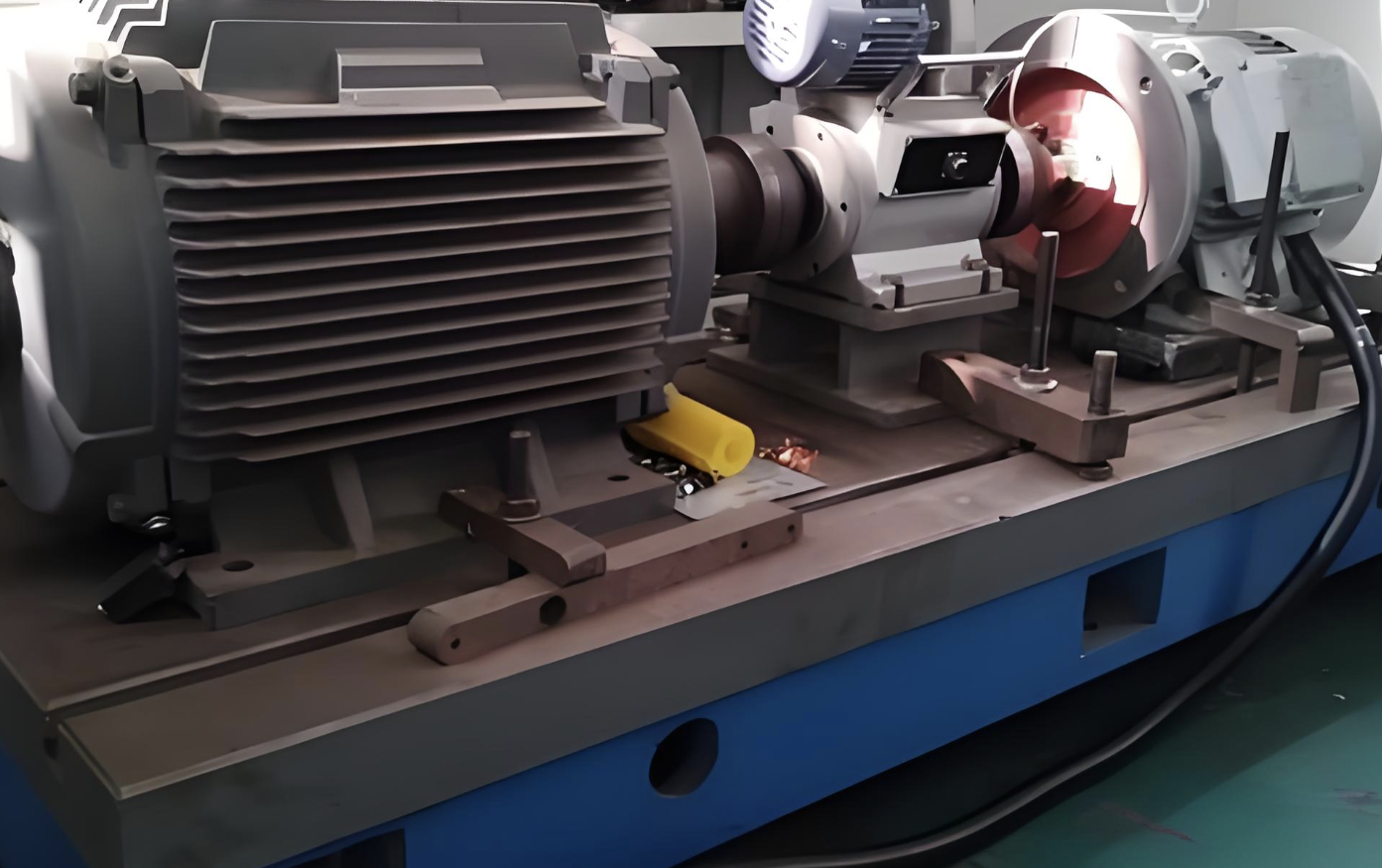

The core advantages include a stepless speed regulation load system that can simulate actual operating working conditions of motors, providing more accurate test data consistent with actual use scenarios. The built-in professional motor test software supports automatic identification of motor rated parameters, and can generate standardized test reports in PDF format. The 3-phase high-precision power acquisition module can accurately measure input power, output power and efficiency of the tested motor. The desktop fixed design ensures stable testing environment, and the dust-proof IP43 rating meets the use requirements of general industrial workshops. It also supports remote data sharing through the local area network, facilitating centralized management of test data for production teams.
The test voltage range is 0~690V AC with ±0.3% FS accuracy, and the test current range is 0~200A with ±0.2% FS accuracy. The maximum test power is 100kW, and the speed regulation range is 0~3000rpm. The overall dimensions are 1200mm in length, 800mm in width and 900mm in height, with a net weight of 85kg. It uses 380V 3-phase 50/60Hz power supply, and supports real-time dynamic data acquisition at 10Hz sampling frequency. The built-in software can automatically calculate motor efficiency, power factor and torque parameters, and supports exporting test reports in multiple formats.
This product is suitable for medium and small industrial motor manufacturing enterprises, motor repair factories and motor performance testing institutions. It can be used for factory inspection of fan motors, water pump motors and conveyor belt motors, performance testing of new motor development and sampling inspection of mass-produced motors. It meets the testing requirements of most low voltage motors with power below 100kW, and is suitable for fixed workshop testing scenarios with stable power supply.
