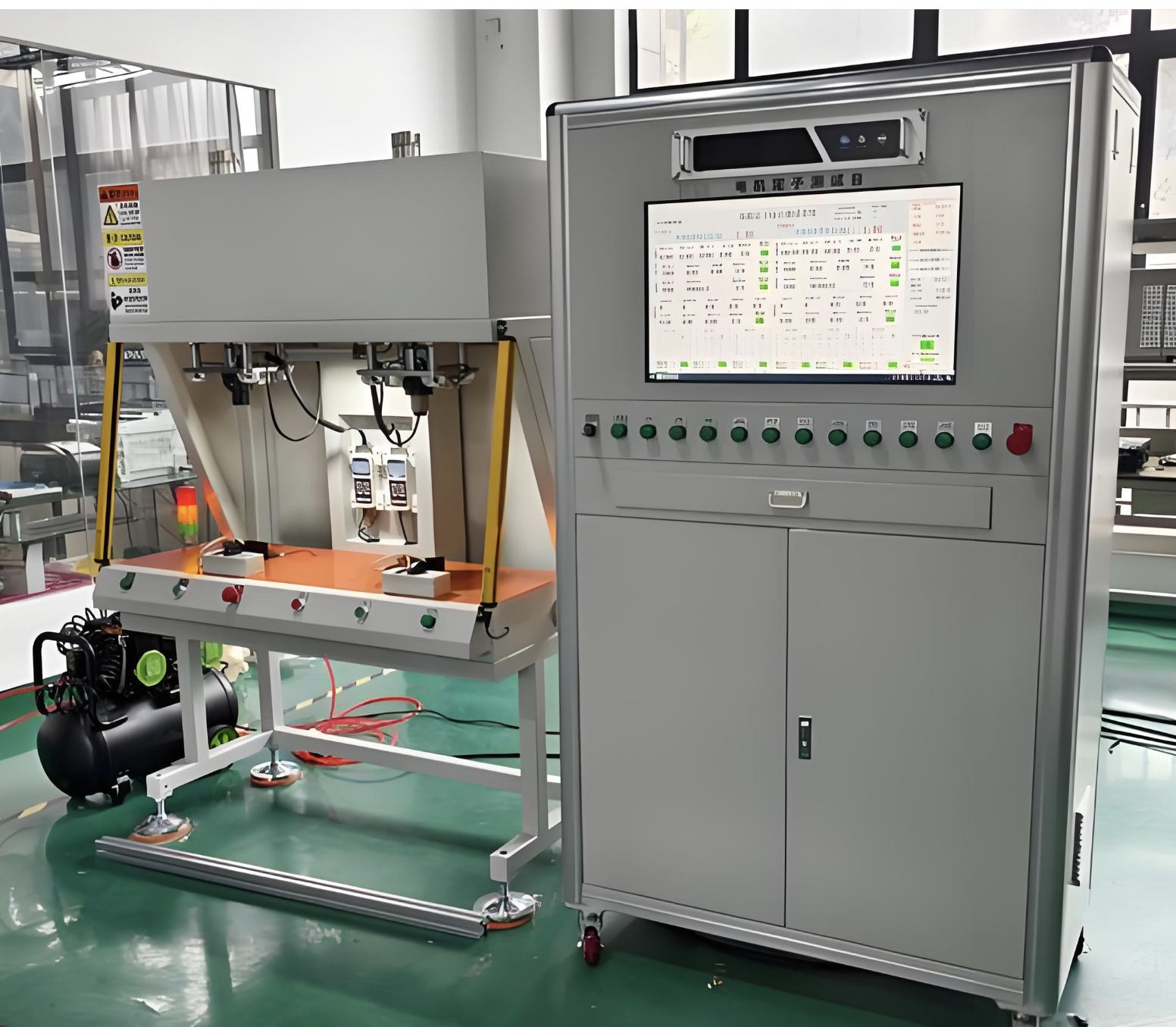

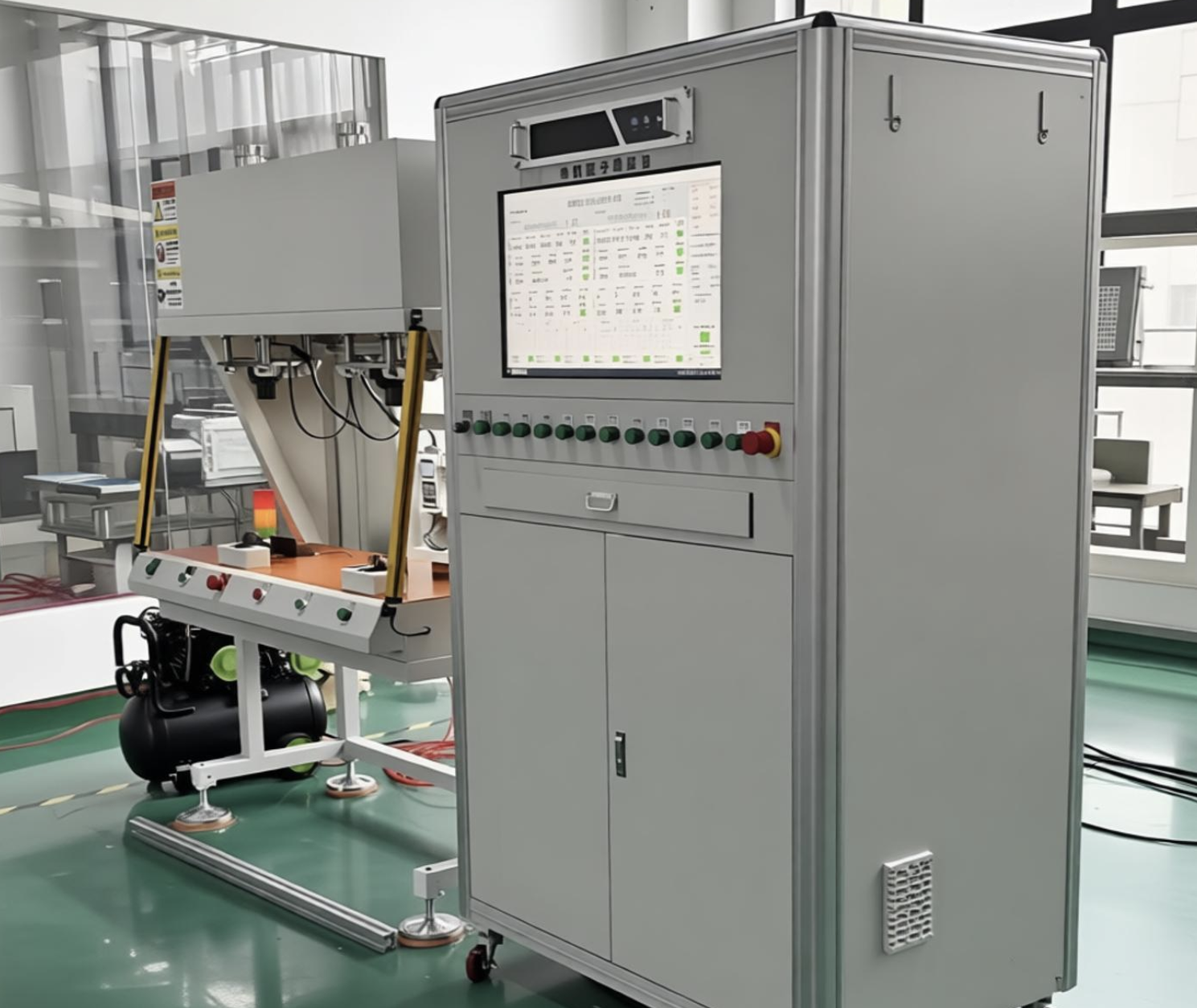

Low-Voltage Motor Stator Test Bench

Product features:

This product stands out with its portable and space-saving design, solving the pain point that traditional fixed test benches cannot be moved for on-site maintenance. It is equipped with quick-connect terminals that can complete wiring in 30 seconds, reducing the time spent on preparation before testing. The one-key test mode simplifies complex parameter setting, allowing even novice operators to master the operation quickly. The built-in data export function supports generating standardized test reports in PDF format, which is convenient for archiving and customer communication. It also has an anti-slip rubber base to improve placement stability during testing, avoiding equipment displacement caused by vibration during motor operation.

Product specifications:

The product specifications include adjustable AC test voltage ranging from 0 to 415V, test current from 0 to 50A, and a maximum test power of 15kW, with a measurement accuracy of ±0.5% of full scale. It is equipped with a 7-inch capacitive touch LCD screen for real-time display of test data and parameter configuration. The built-in 16GB storage space can store up to 1000 sets of complete test records, supporting USB flash drive export and RS485 remote low-bandwidth communication. The overall dimensions are 650mm in length, 450mm in width, and 800mm in height, with a total weight of 32kg, making it easy for 1-2 people to carry and move. It meets the IP23 protection grade, suitable for indoor and semi-outdoor environments, and is equipped with an emergency stop button to quickly cut off the power in case of abnormal conditions.

Product application:

This test bench is widely applicable to small motor maintenance shops, agricultural machinery repair stations, community property electrical maintenance teams, and small pumping station motor overhauls. It can also be used for temporary testing of motors in construction sites and outdoor event venues. It is ideal for scenarios where fixed test equipment cannot be deployed, providing efficient and convenient motor fault detection and performance testing services.
