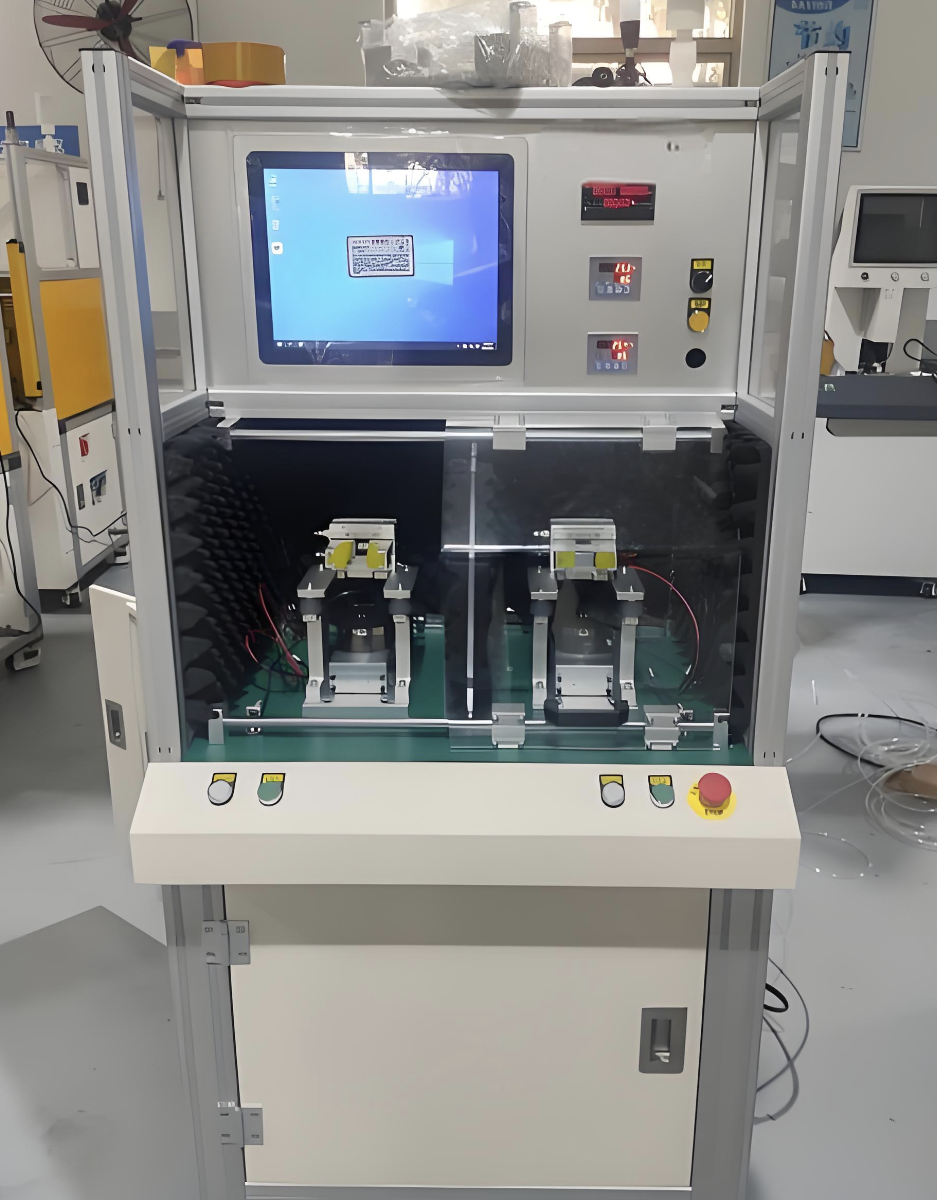

This test stand adopts a high-precision dynamometer and sensor system, with a torque measurement accuracy of up to ±0.1% FS, ensuring the accuracy of energy efficiency testing. It supports automatic testing procedures, which can complete all testing items without manual intervention, reducing human errors. The built-in standard report template can automatically generate test reports that meet national and international certification requirements, saving a lot of manual sorting time. It supports remote upgrading of testing procedures and data analysis models, and can keep up with the latest testing standards and requirements. In addition, it is equipped with a professional data analysis software that can conduct in-depth analysis of motor performance indicators and provide optimization suggestions for motor design.

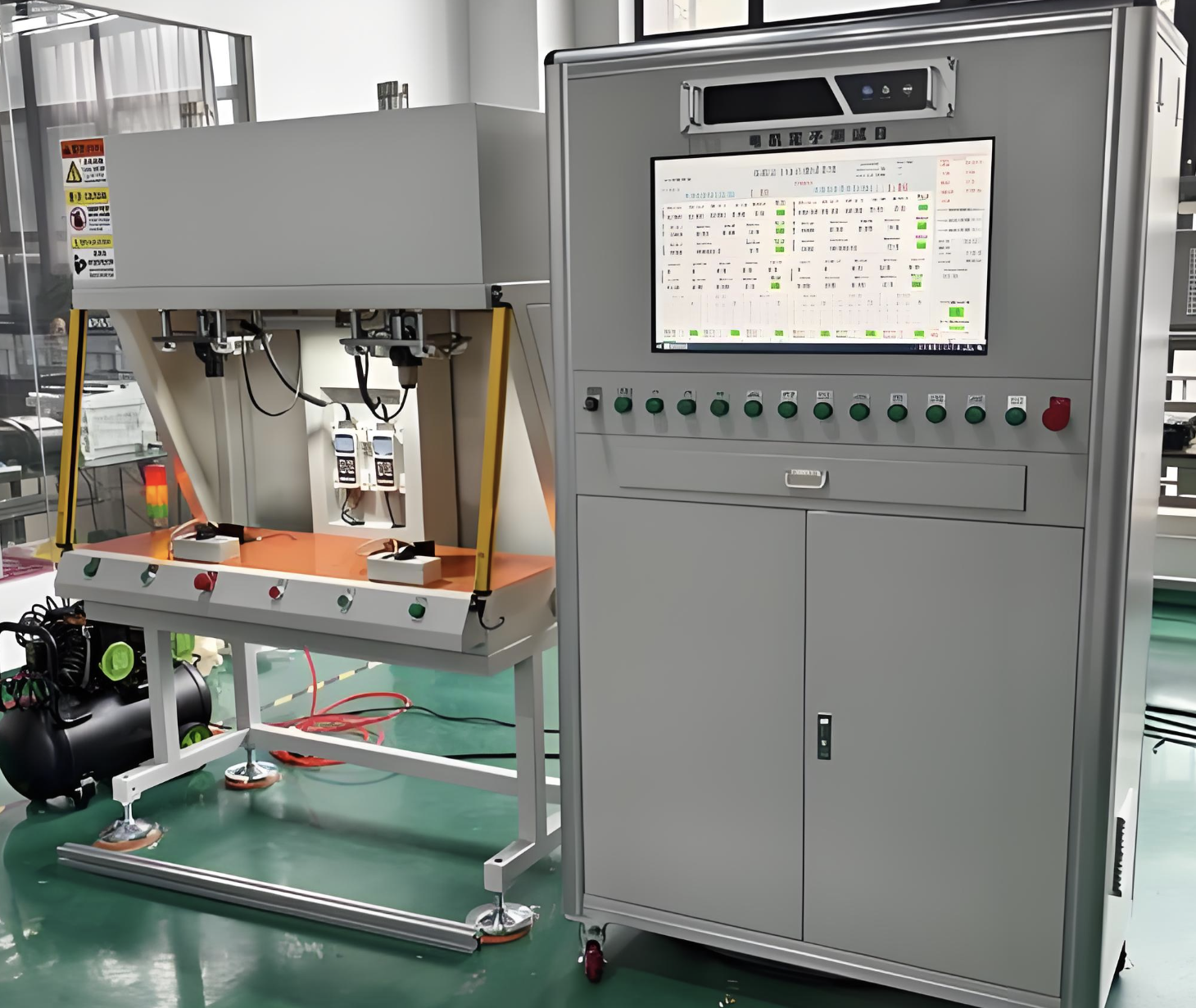

The overall size of the test stand is 1800mm × 1200mm × 2000mm, with a net weight of 850kg. The maximum test speed is 20000 rpm, and the dynamometer loading range is 0-2000N·m. The data acquisition frequency can be adjusted from 10Hz to 2000Hz, and the test data sampling accuracy is up to 16bit. The operating temperature range is 10℃ to 35℃, and the storage temperature range is -10℃ to 60℃. It is equipped with a 15-inch industrial LCD touch screen, and the supporting analysis software supports multiple languages including English, Chinese and Spanish. It has passed CE, UL and ISO9001 certifications, ensuring the reliability of long-term high-load testing.
This test stand is mainly suitable for motor manufacturing enterprises, national energy efficiency testing institutions, import and export trade companies and third-party testing laboratories. It can be used for energy efficiency rating of IE3, IE4 and other high-efficiency low voltage motors, performance testing of permanent magnet synchronous motors, factory acceptance testing of exported motors and research and development performance testing of new motors. Typical application scenarios include high-efficiency motor factory certification, motor energy efficiency labeling testing, export motor quality inspection and motor research and development performance verification.
