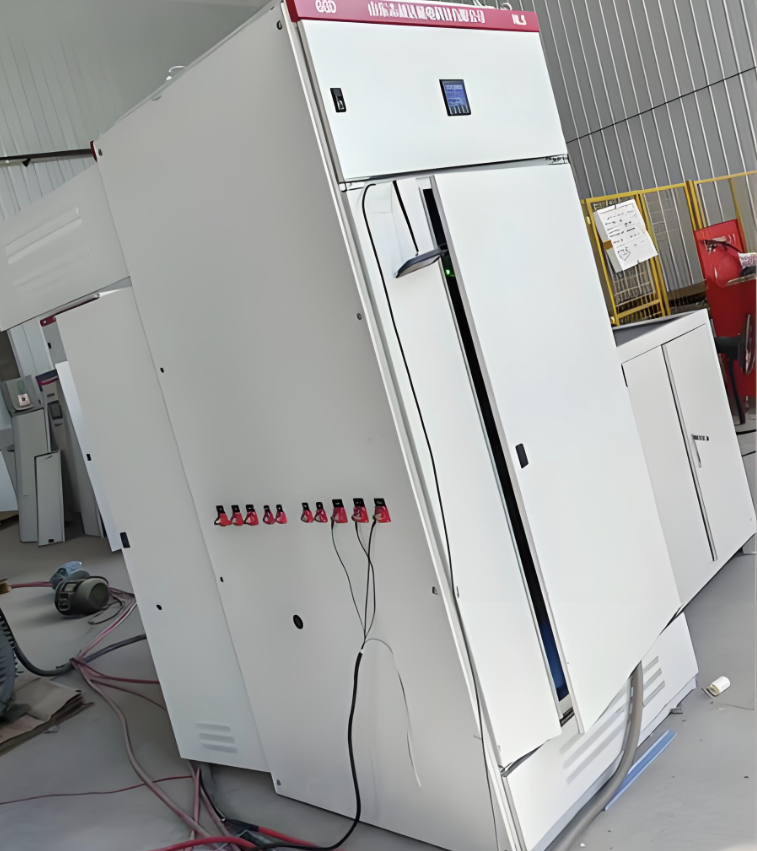

Equipped with a PLC fully automatic control system, this test bench can automatically complete the entire testing process without manual intervention, greatly improving testing efficiency and reducing labor costs. It has a higher test accuracy of ±0.2% of reading, which can meet the strict quality testing requirements of motor manufacturing enterprises. The built-in cloud data synchronization function can upload test data to the enterprise cloud platform in real time, facilitating unified management of product quality data. It also supports custom testing procedures, which can be adjusted according to the testing needs of different motor types, and is equipped with an over-voltage, over-current and over-temperature protection system to ensure the safety of equipment and operators. It has passed multiple international safety certifications, meeting the standards of major global motor manufacturing markets.

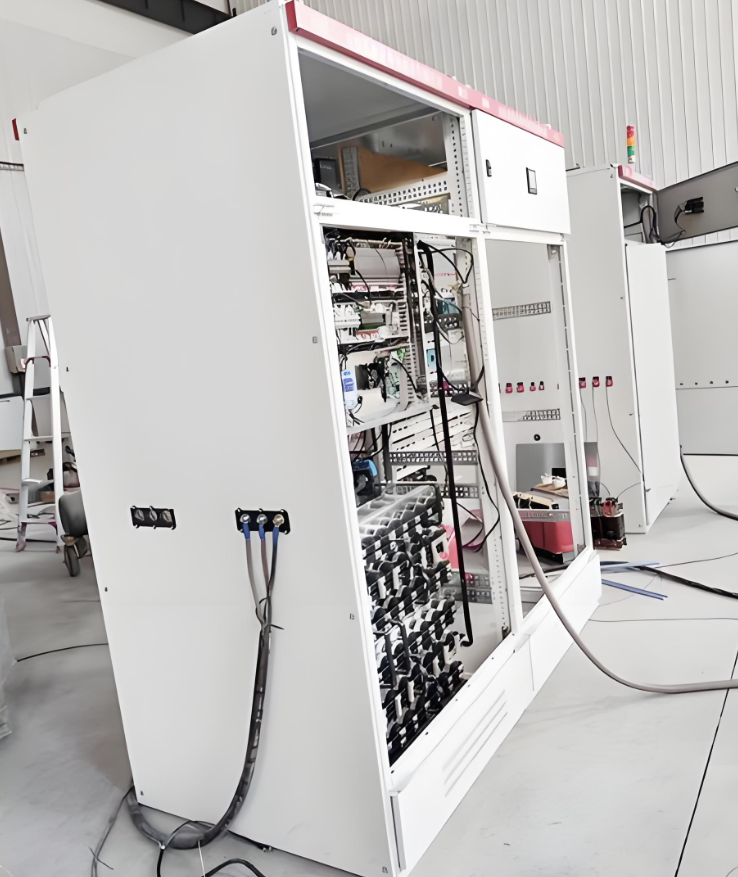

The overall dimensions are 1800mm (length) × 1200mm (width) × 1800mm (height), with a total weight of 850kg. The body is made of thickened cold-rolled steel plate, with a shock-absorbing base to reduce the impact of testing vibration on the equipment. The power supply requirement is 380V AC 50/60Hz, the test voltage range covers 0-690V AC and 0-1000V DC, and it can test low-voltage motors up to 500kW. The test accuracy can reach ±0.2% of the reading accuracy, and the display resolution is 0.01V and 0.001A. It has a built-in storage capacity of 100,000 sets of test data and supports cloud data synchronization. It is equipped with multiple interfaces such as USB, RS485, Ethernet and PROFIBUS, and is equipped with a PLC control system and a complete set of protection systems. It has passed CE, ISO9001 and ISO14001 certifications, meeting the environmental and safety standards of the EU and China.
It is mainly suitable for large motor manufacturing enterprises, professional motor testing institutions, third-party quality inspection institutions and other scenarios. It can complete full performance testing of various low-voltage motors such as three-phase asynchronous motors, synchronous motors and medium-sized servo motors, including no-load testing, load testing, insulation performance testing, rotor resistance testing and other projects. It can meet the mass testing needs of motor production lines, ensuring that each produced motor meets the quality standards, and can also provide professional testing reports for motor products to help enterprises improve product quality and market competitiveness.
