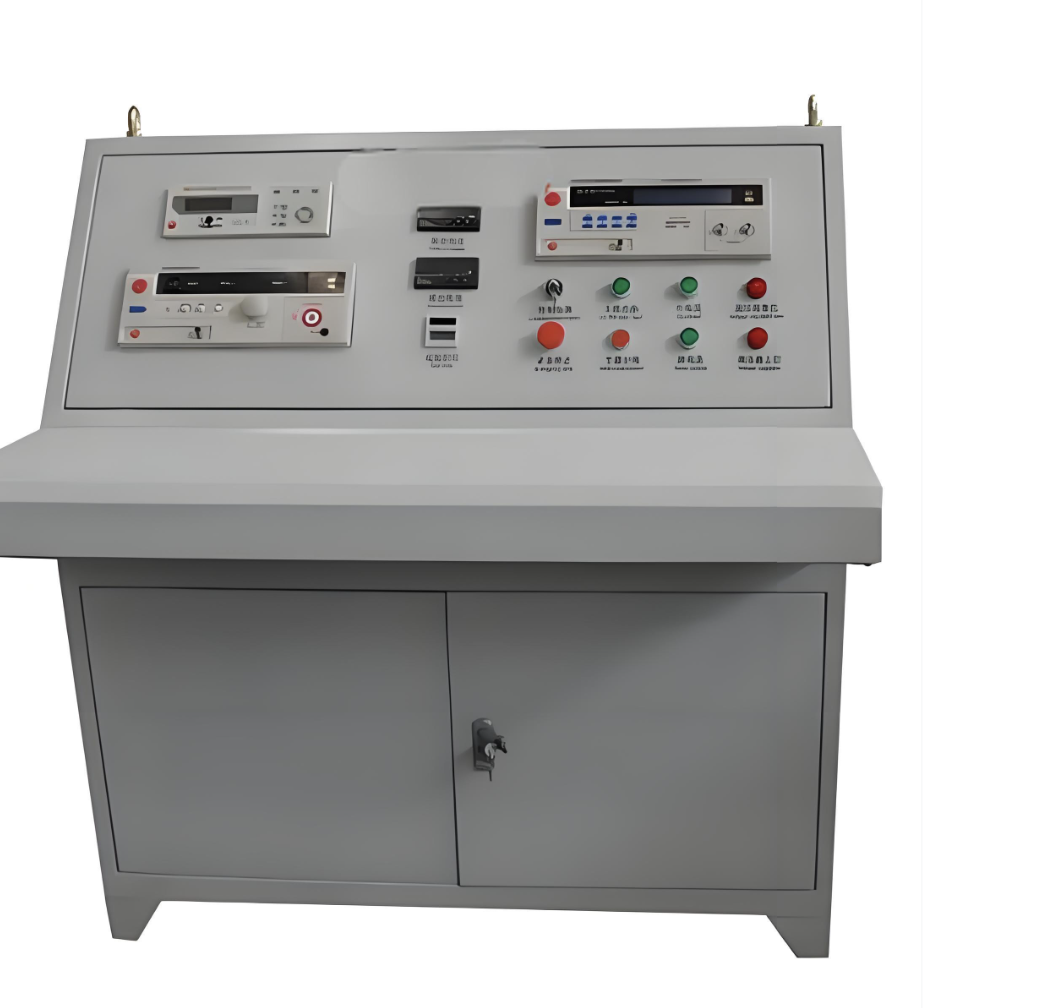

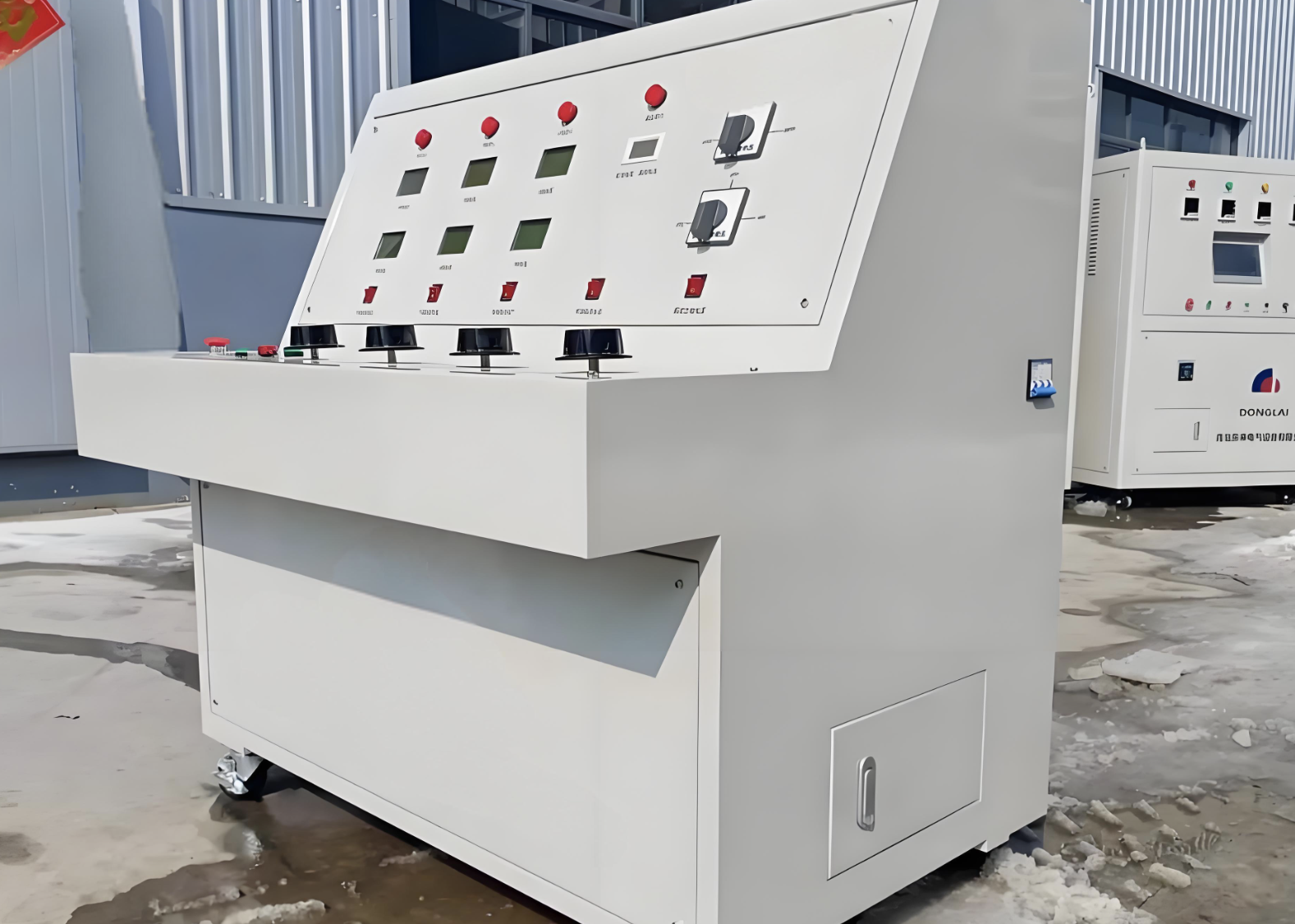

Intelligent Remote Monitoring Low-Voltage Motor Test Bench

Product features:

Featuring intelligent remote monitoring as a core highlight, this test bench resolves the pain points of managing multiple devices remotely and reducing maintenance costs. Users can monitor processes, view real-time data, and adjust parameters anytime via the cloud platform without being on-site. The built-in fault diagnosis module automatically detects issues and sends alerts, helping to cut down maintenance time significantly. Moreover, the cloud storage supports long-term secure storage of all test data, ensuring full traceability for quality control and customer audits. It also seamlessly integrates with enterprise production management systems, unifying test and production data for efficient operational management.

Product specifications:

The equipment has an adjustable AC test voltage range of 0 to 690V, test current from 0 to 250A, and a maximum test power of 800kW, with a measurement accuracy of ±0.2% of full scale. It is equipped with a 15-inch industrial touch LCD screen and a built-in industrial computer with 64GB of storage space, supporting local data storage and cloud upload. The communication interfaces include 5G, Ethernet, and WiFi, which can realize remote access and monitoring. The overall dimensions are 2300mm in length, 1600mm in width, and 1900mm in height, with a total weight of 950kg, and it is fixed on the foundation through embedded anchor bolts. It meets the IP54 protection grade, suitable for indoor production workshop environments, and complies with CE and IoT security certifications. It is equipped with an automatic wiring clamping device and an emergency stop system, ensuring the safety of the test process.

Product application:

This test bench is suitable for motor manufacturing enterprises with multiple production lines, third-party motor testing institutions, motor maintenance chain organizations, and remote operation and maintenance service teams. It can be used for remote monitoring and management of multiple test benches, and is ideal for enterprises that need to carry out cross-regional motor testing and quality management.
