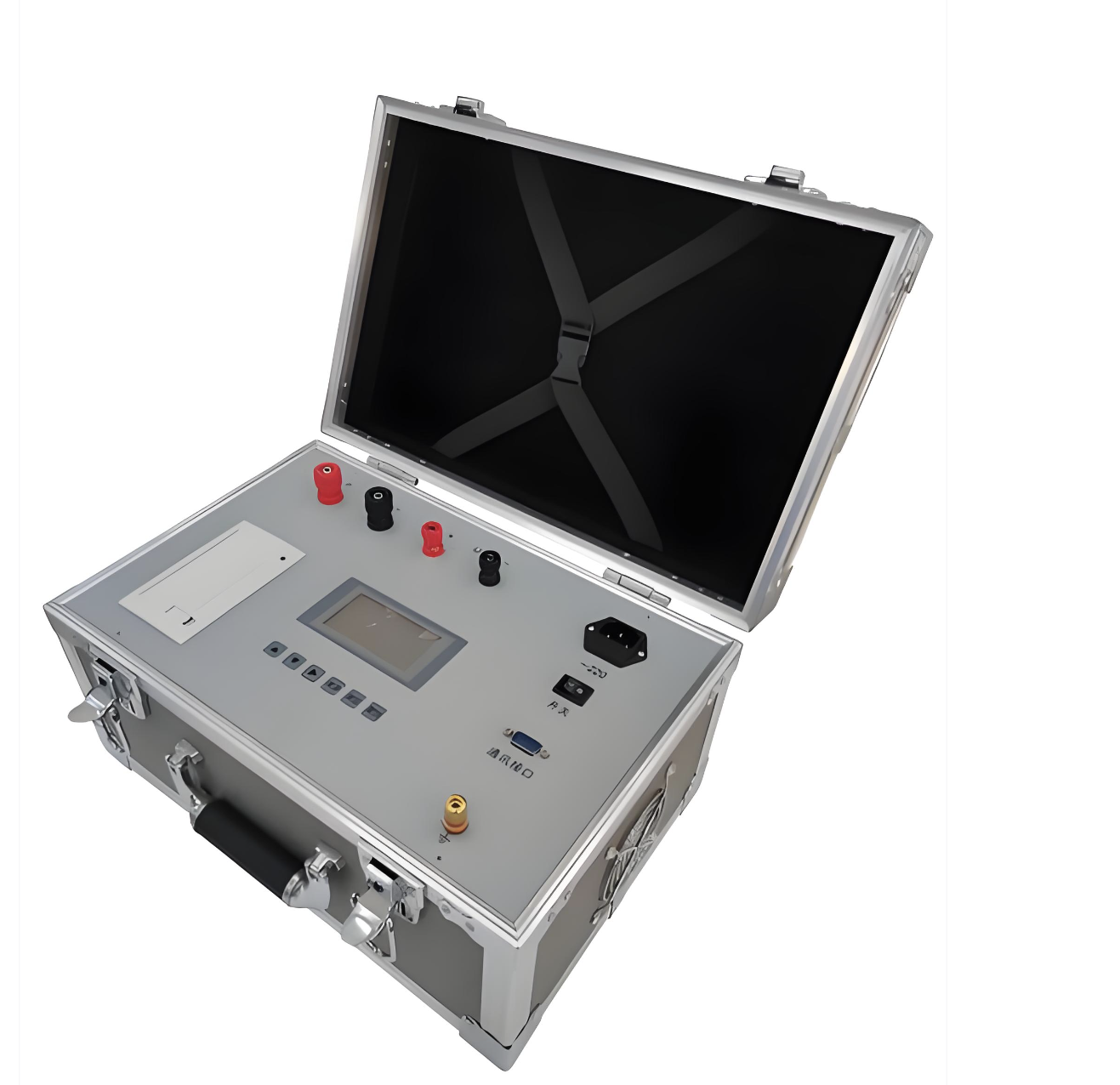

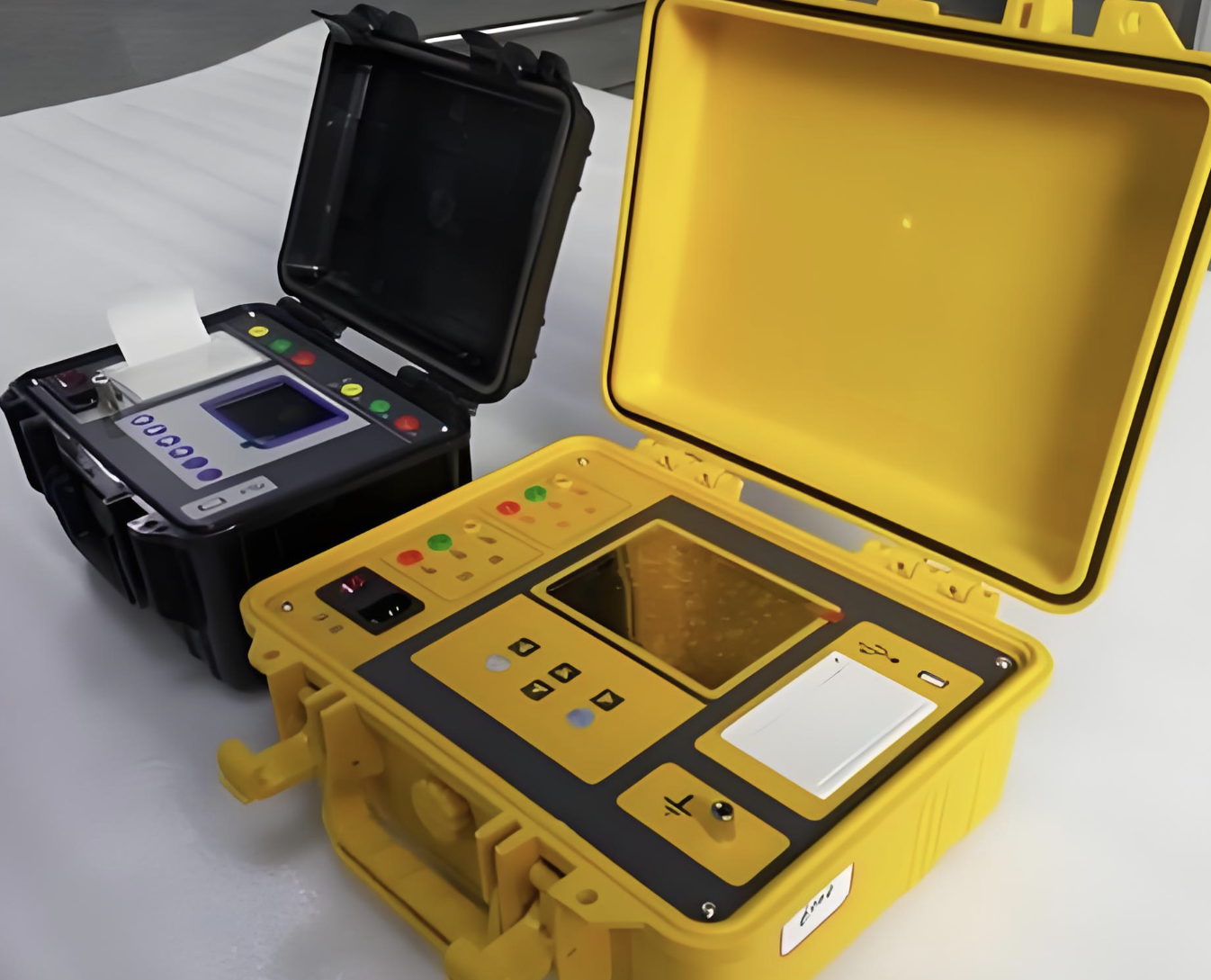

Adopts integrated design, integrating voltage regulation, measurement and control modules into one, with a total weight of only 35kg. It is equipped with a portable拉杆箱-style shell for easy vehicle transportation. It supports 220V single-phase civilian power supply, no special industrial power supply is required, adapting to outdoor temporary power supply scenarios. It is equipped with a 7-inch LCD screen, which can display real-time test data and generate simple test reports. It has overload automatic protection function to ensure operational safety during on-site testing, and can quickly export test data to a computer for archiving through the USB interface.
The test voltage range is 0-50kV AC, the maximum test capacity is 500kVA, and the measurement accuracy reaches 1.0 level. It is equipped with a 7-inch LCD screen, supporting one-click test process. The data storage capacity is 500 sets of test data, supporting USB data export. The whole machine has a protection level of IP54, which can cope with outdoor dust and light rain. It adopts 220V 50Hz single-phase power supply, the overall dimensions are 600*400*300mm, and the net weight is 35kg.
It is suitable for regular inspection of single-phase transformers in distribution areas of grass-roots power supply stations, performance verification of transformers after outdoor emergency repair, on-site inspection of box-type transformers in small photovoltaic power stations, and temporary fault troubleshooting by power emergency repair teams. It can cover conventional test items of single-phase oil-immersed and dry-type transformers with voltage levels from 10kV to 35kV.
