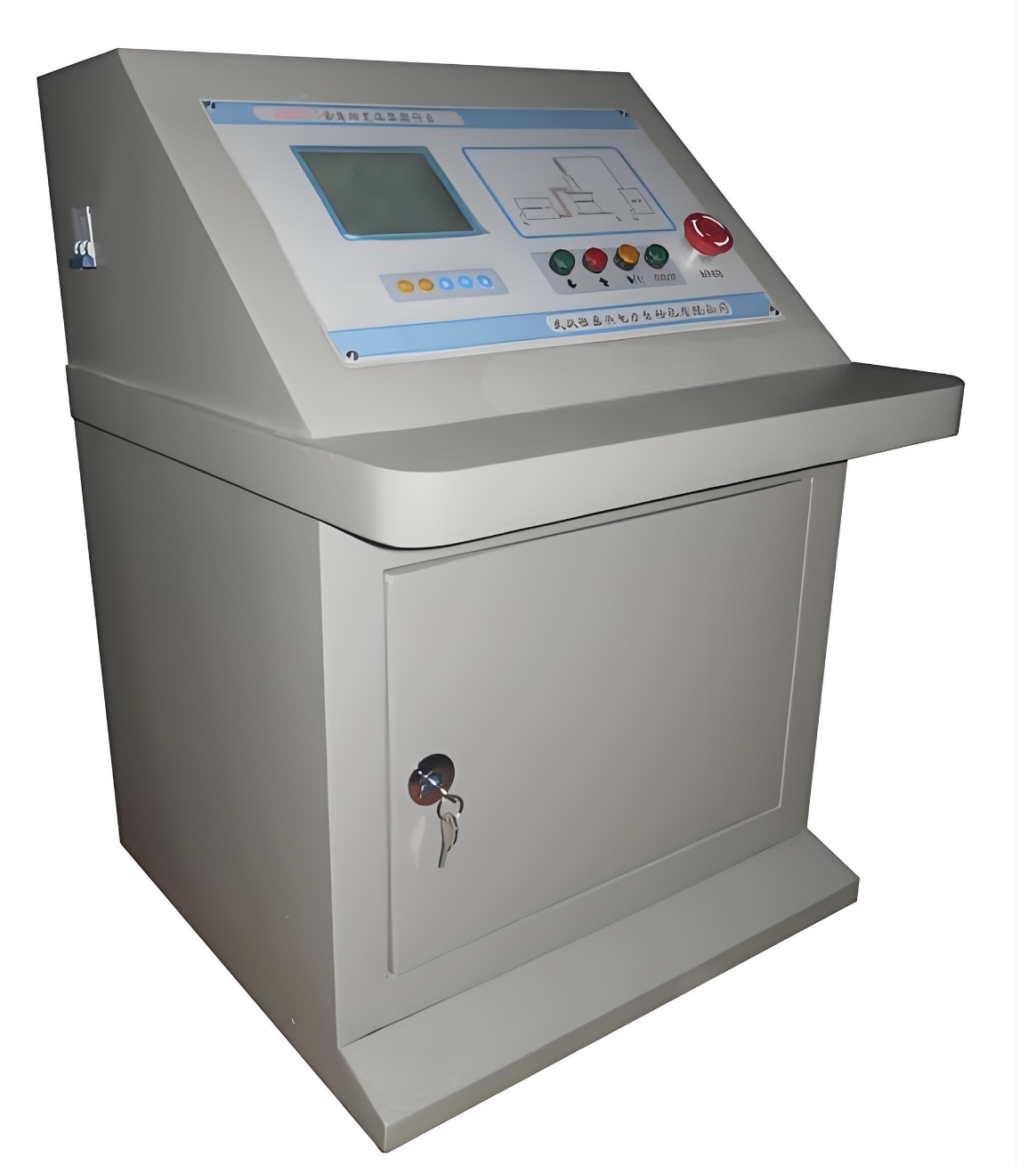

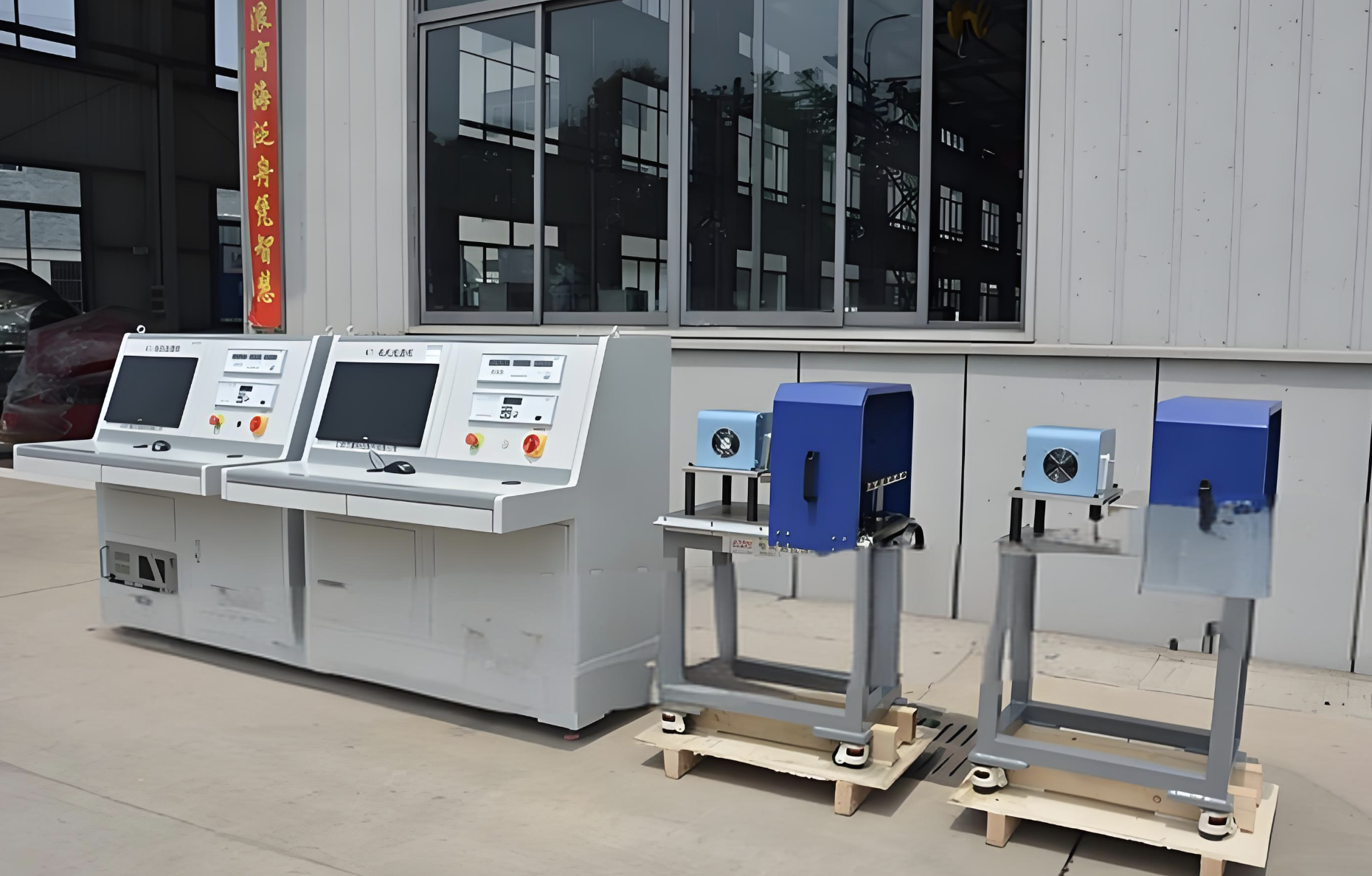

The key advantages include the mobile universal wheel design with brake function, which can be fixed stably during testing and easily moved when needed. The cyclic load testing system can simulate actual operating load changes of motors, testing the durability of motor windings, bearings and other components under alternating load conditions. The high-speed data acquisition system with 1-second sampling frequency can accurately record motor operating parameters during long-time testing, and the large-capacity data storage can store up to 10000 sets of test records. The built-in over-temperature monitoring function can detect the temperature of the tested motor in real time and trigger an alarm when the temperature exceeds the threshold, ensuring the safety of the durability testing process.
The test voltage range is 0~400V AC with ±0.4% FS accuracy, and the test current range is 0~100A with ±0.3% FS accuracy. The maximum test power is 150kW, and the cyclic load range is 0~100% rated load. The overall dimensions are 1800mm in length, 1000mm in width and 800mm in height, with a net weight of 120kg. It supports multiple power supply modes including 110V, 220V and 380V AC, and the data acquisition cycle can be set from 1 second to 60 seconds. The mobile universal wheels have load capacity of up to 500kg, ensuring stable movement of the test stand.
This product is suitable for durability testing of low voltage motors such as automotive starter motors, industrial motor bearings and marine low voltage motors. It can be used for long-time running testing of motor samples, aging testing of new motor development and reliability evaluation of repaired motors. It is ideal for scenarios that need mobile durability testing, and can be used in multiple workshop locations or on-site testing sites.
