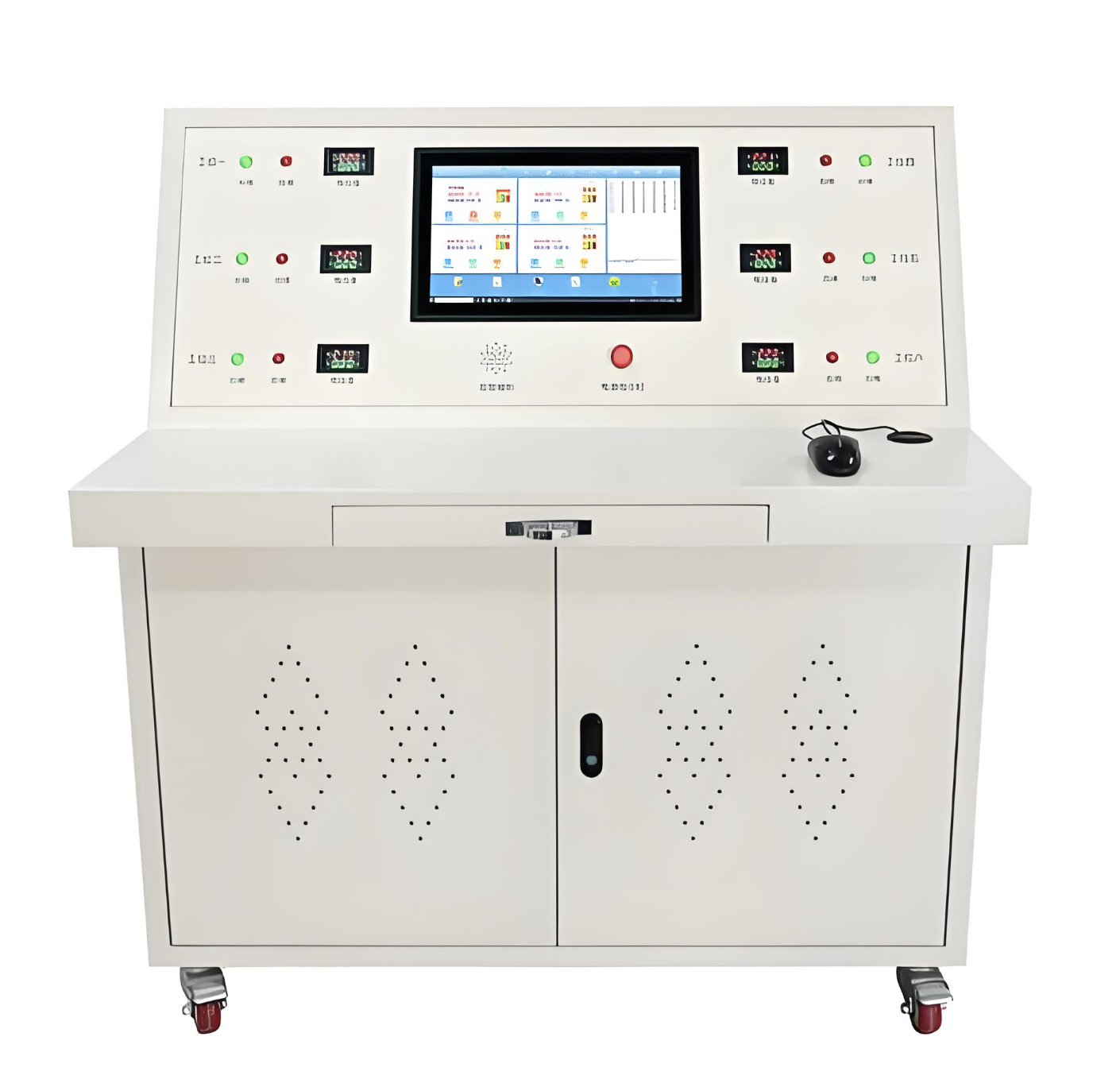

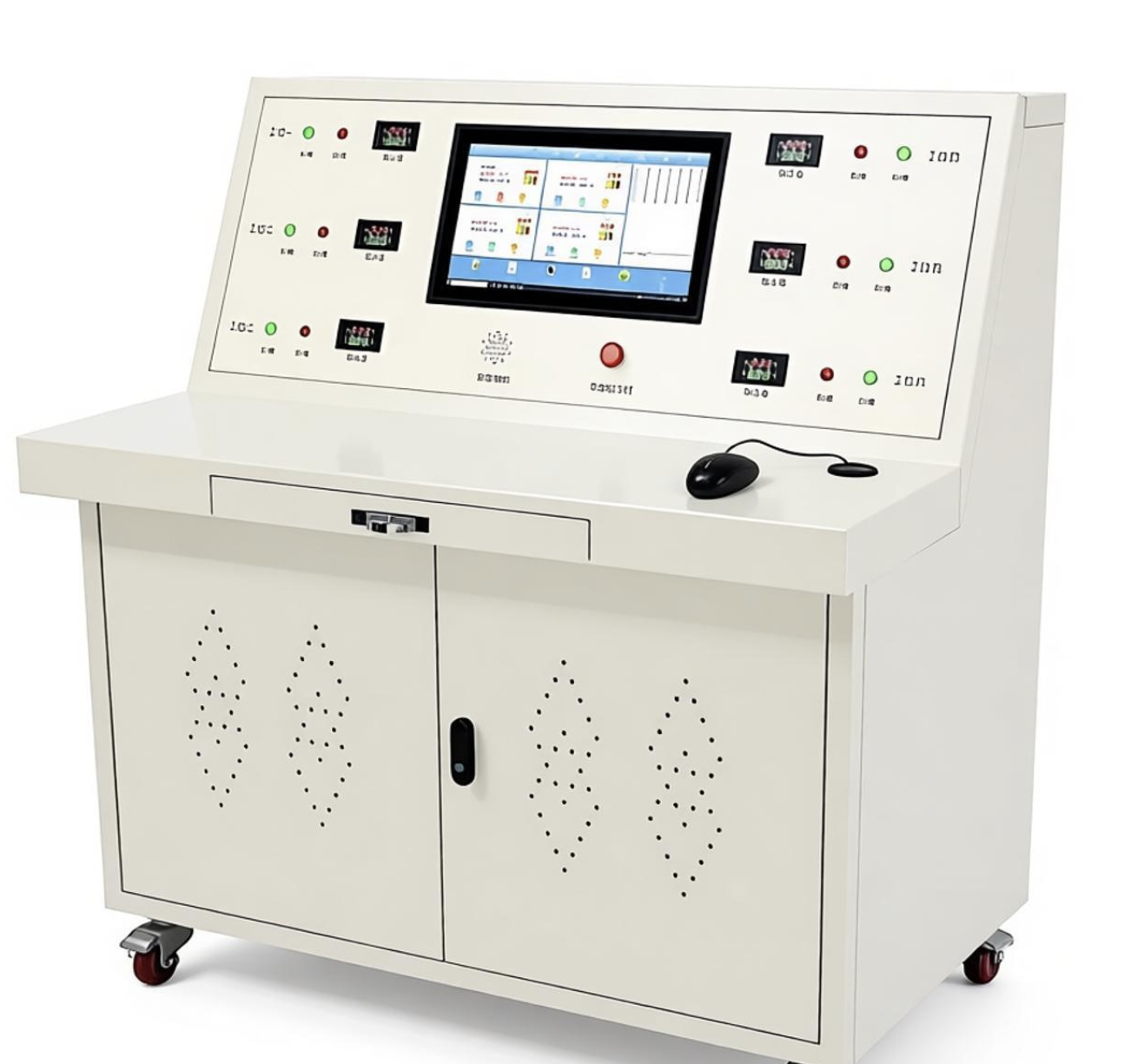

The core advantage of this test bench is its professional explosion-proof design, which meets the safety requirements of flammable and explosive environments, avoiding the risk of spark ignition during the test. It supports special safety test items such as spark test, leakage current test and insulation resistance test, which are mandatory for explosion-proof motors. The multi-point emergency stop device can quickly cut off the power and stop the test when any abnormal situation occurs, ensuring the safety of operators and test equipment. It also comes with a dust-proof and explosion-proof casing, effectively isolating the internal test components from the external dangerous environment.
The overall size of the test bench is 2800mm (length) × 2000mm (width) × 2500mm (height). It supports test voltage from 0 to 550V AC, test current from 0 to 150A, and maximum test power of 80kW, suitable for explosion-proof low voltage motors from 0.75kW to 80kW. The IP65 protection grade can effectively prevent dust, water spray and other foreign matters from entering the interior, adapting to the harsh environment of coal mines and chemical plants. It is equipped with a special explosion-proof touch screen, supporting safe operation in flammable and explosive environments, and the intrinsic safety interface can ensure safe data transmission in dangerous environments.
This test bench is mainly used in coal mine machinery manufacturing enterprises, chemical plant electromechanical equipment maintenance departments, oil and gas station supporting equipment testing centers, and national special safety inspection institutions. It can be used for safety performance testing of explosion-proof low voltage motors used in coal mine winches, chemical plant fans and oil and gas pumping units, ensuring that the motors meet the safety standards of flammable and explosive places, and providing reliable safety certification support for the use of motors in special industries.
