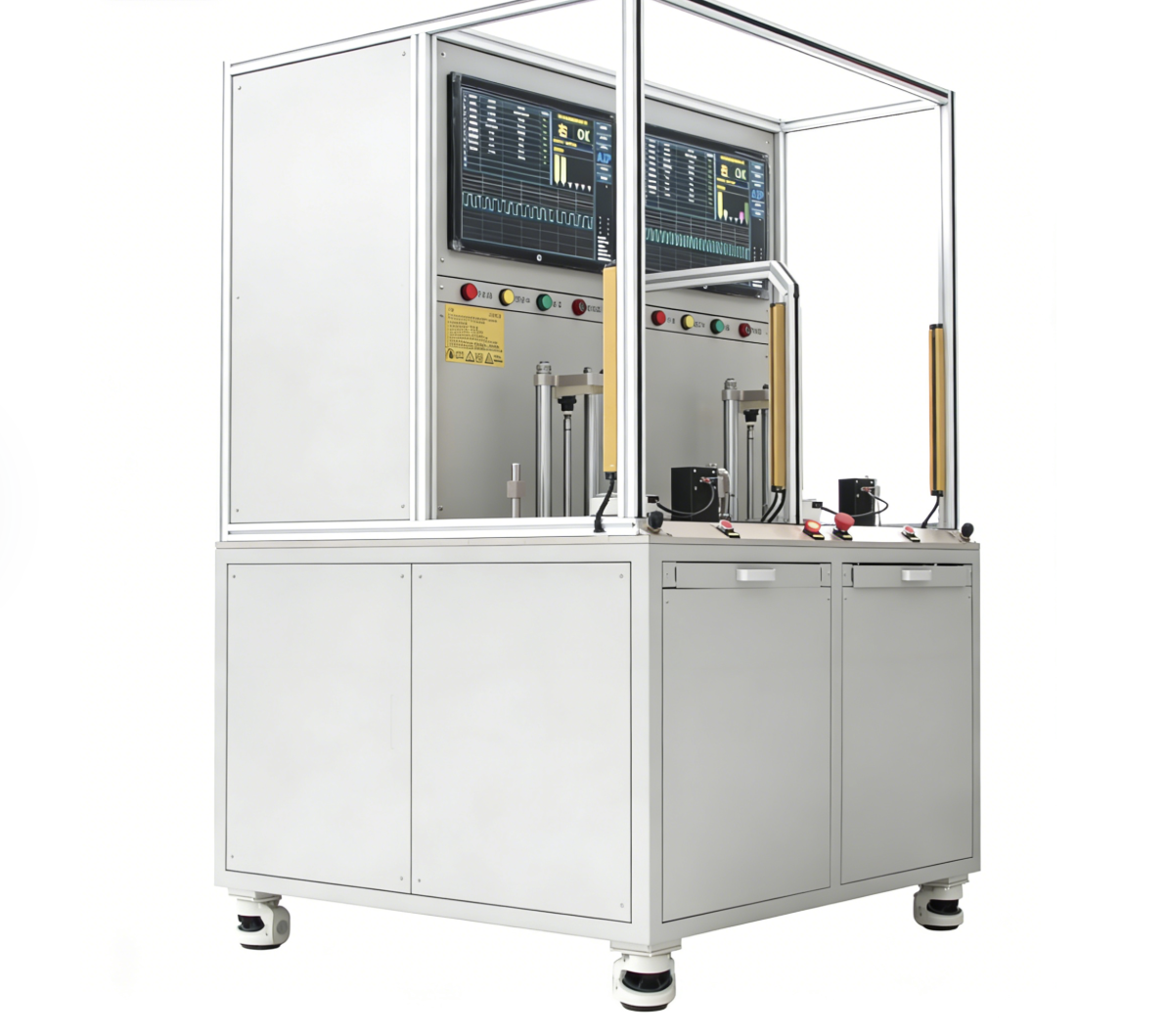

The biggest advantage of this test bench is its modular integrated design, which can be customized and docked according to the layout of different production lines, avoiding the waste of space and resources caused by separate testing stations. It supports 42 professional test items including winding resistance, insulation resistance, no-load current, speed stability and other detailed performance tests, ensuring comprehensive quality inspection of motors. The real-time data synchronization function with MES system enables full traceability of each motor's testing data, and the audible and visual alarm can quickly remind operators when abnormal test results occur, reducing the rate of defective products flowing into the market.

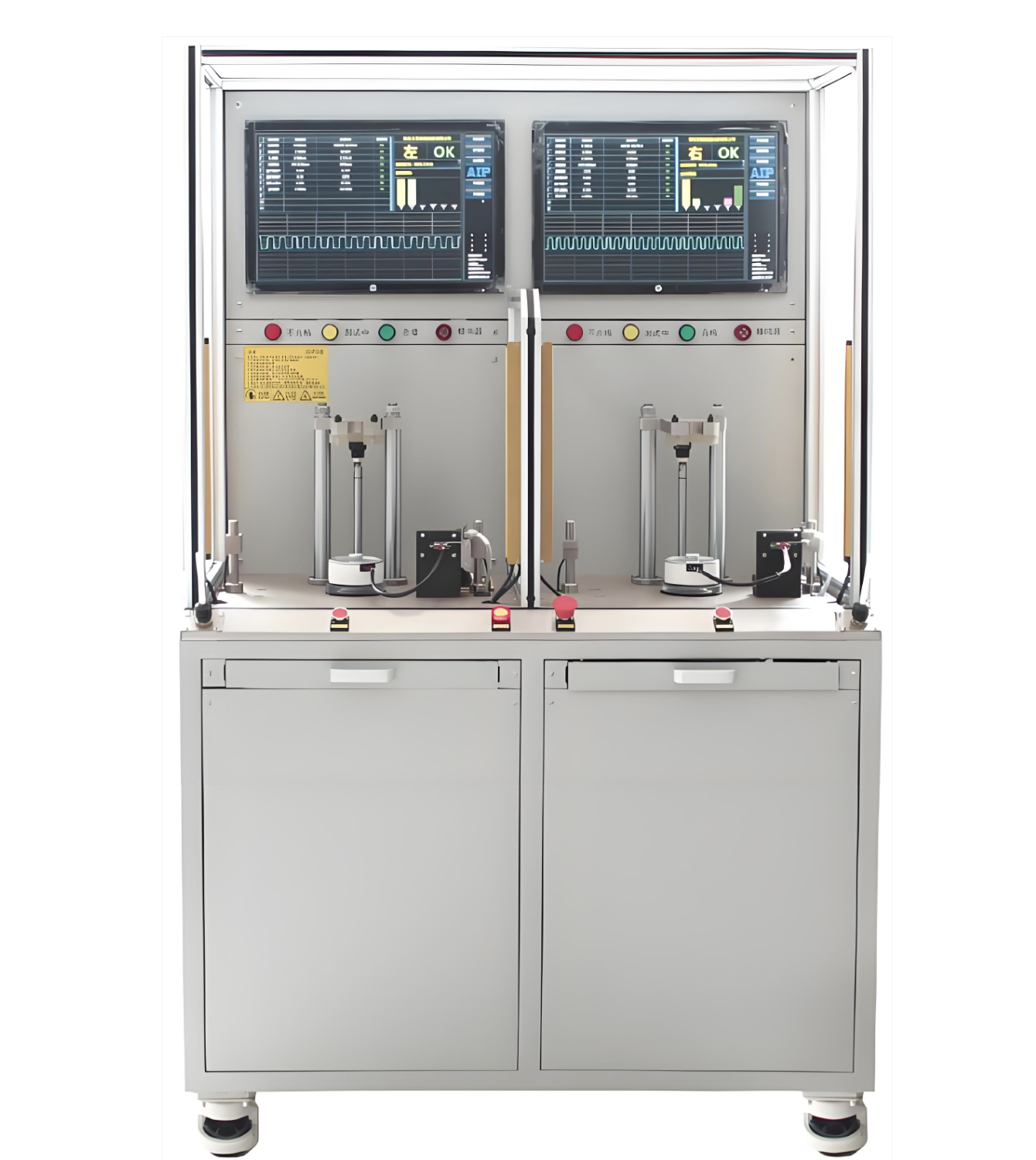

The overall size of the test bench is 2500mm (length) × 1800mm (width) × 2200mm (height). It supports test voltage from 0 to 690V AC, test current from 0 to 300A, and maximum test power of 200kW, suitable for low voltage motors from 0.75kW to 200kW. It is equipped with a 15-inch industrial touch screen, supporting multi-user authority management to avoid misoperation. The IP55 protection grade can adapt to the complex environment of the production line, preventing dust and oil mist from entering the interior. It also comes with an automatic clamping and fixing device, realizing the automatic positioning and testing of motors, reducing the labor intensity of operators.
This test bench is mainly used in large-scale low voltage motor manufacturing factories, mass production lines of electromechanical supporting products, and professional motor testing centers. It can be applied to the online testing of various low voltage motors such as industrial motors, reducer supporting motors, and fan motors, realizing fully automated quality control in the mass production process, and meeting the testing needs of large-batch and high-standard motor production.
