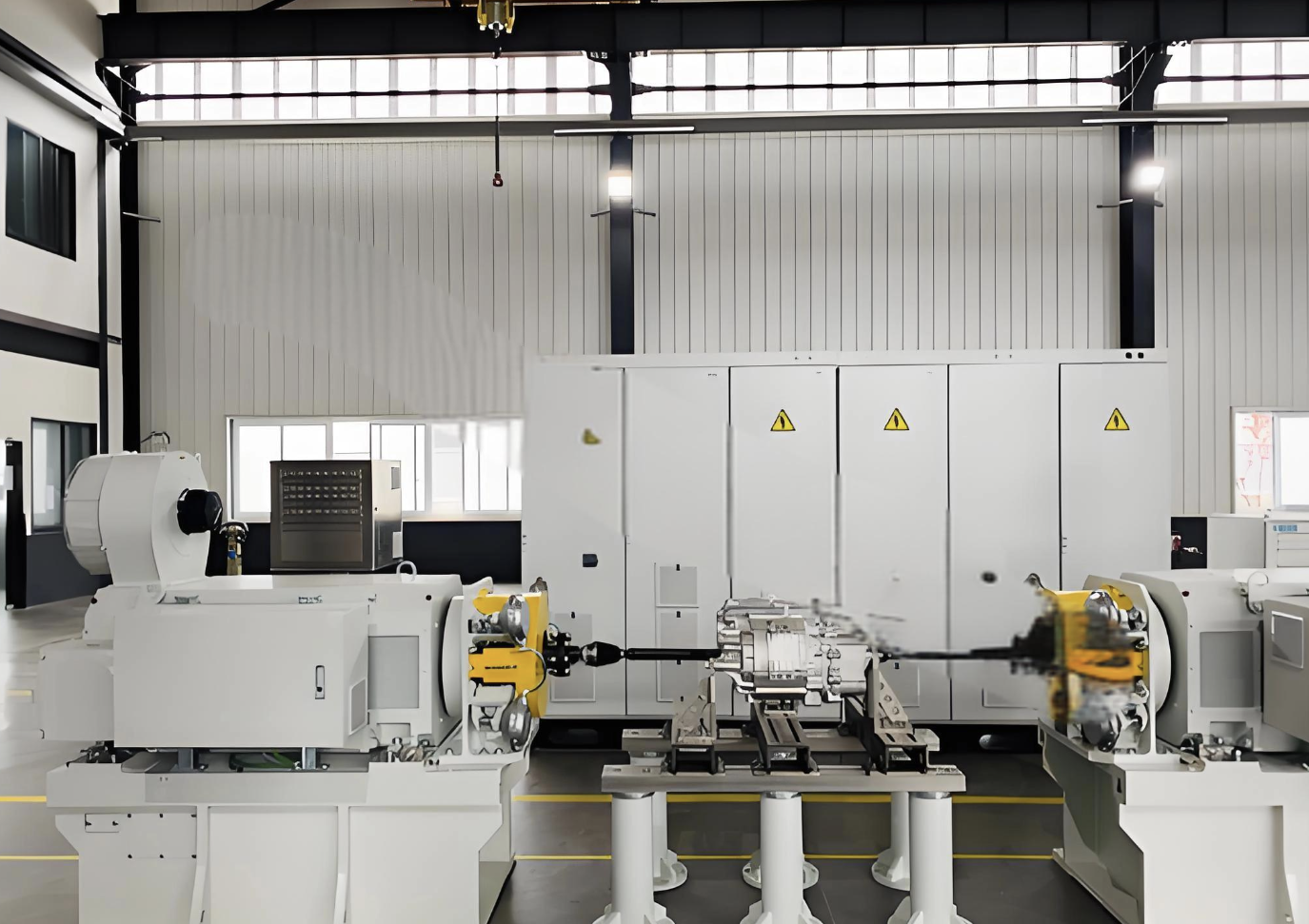

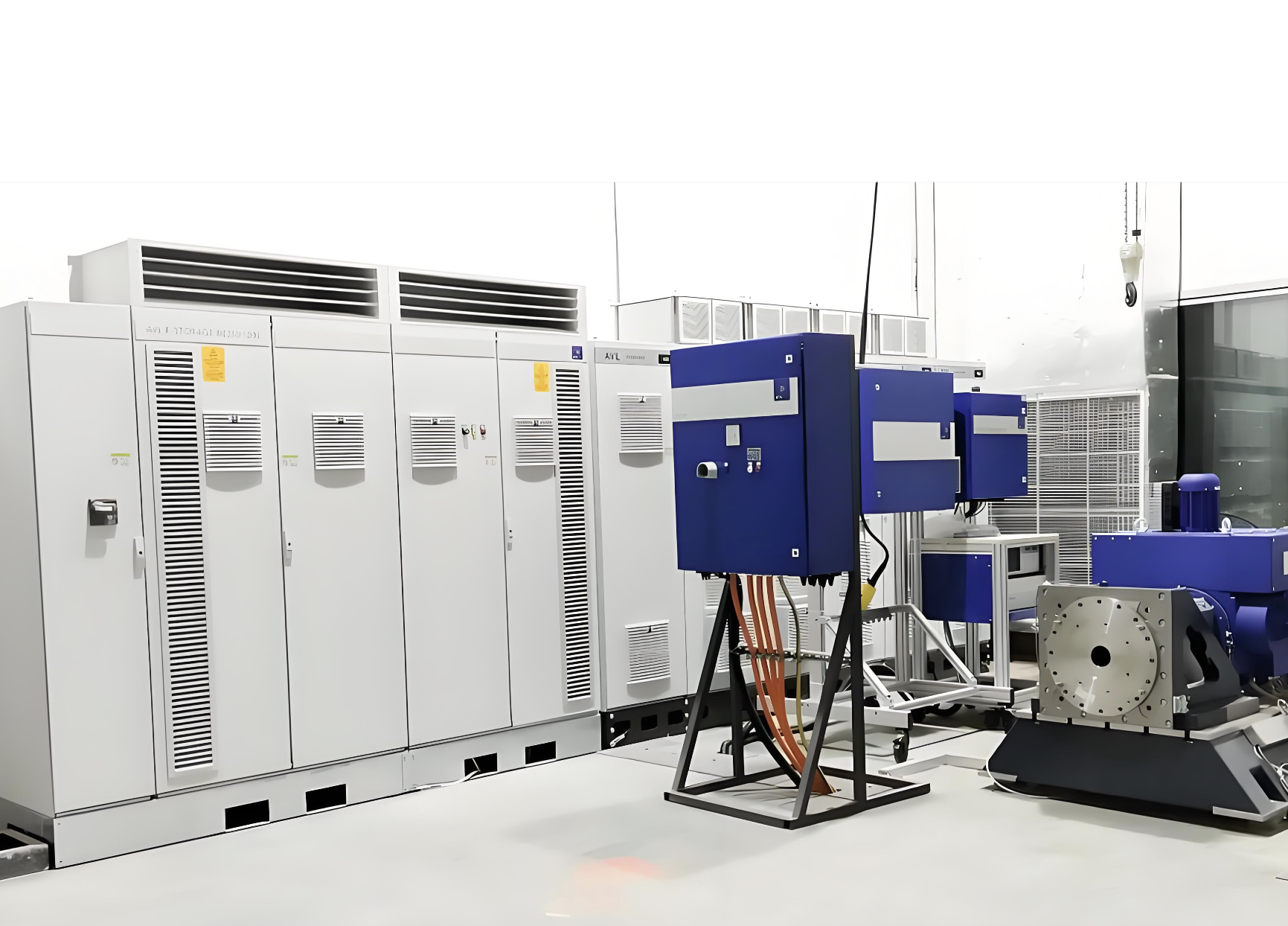

The core advantages of this product are its high degree of customization and efficient batch testing capability. It can be customized with 2–6 test stations according to the enterprise’s production capacity, realizing simultaneous testing of multiple motors and improving testing efficiency by 3–5 times compared with single-station test benches. It supports integration with the enterprise’s MES system, realizing automatic matching of production plans and test data, and automatically generating production quality reports. The equipment adopts a centralized control mode, with unified setting and adjustment of test parameters, reducing the error rate of manual operation. At the same time, it has passed CE and ISO9001 certifications, and its testing quality meets international standards.
The adaptable motor power range is 0.75kW-400kW, with a rated voltage of AC380V±10% 50Hz. The number of test stations can be customized from 2 to 6, and each test station can independently set test parameters and complete testing. The test items include full-range motor performance testing such as insulation resistance, turn-to-turn voltage, load efficiency and temperature rise. The overall dimensions and total weight are customized according to the actual site and production needs of the enterprise. It is equipped with a 27-inch industrial central control screen, with a data storage capacity of more than 100,000 test records. The protection grade is IP21, and it supports Ethernet and Profinet communication interfaces for high-speed data transmission. The whole machine adopts a heavy-duty welded structure, with strong stability and low noise during testing.
It is suitable for large-scale motor production enterprises, complete electrical equipment manufacturing enterprises and batch motor supporting enterprises. Typical application cases include batch testing of high-efficiency motor supporting for air conditioning units, full-range testing of new energy vehicle drive motors in batches, and factory inspection of supporting motors for large-scale engineering machinery. It can help enterprises realize fully automatic batch testing of motors, improve production efficiency, reduce labor costs, and meet the large-scale production quality control requirements of enterprises.
