The core technical highlights of this product lies in its integrated spray-stirring humidification structure, which ensures uniform water distribution without local over-humidification or dry dust leftover. The Q235 carbon steel main body has strong corrosion resistance and service life of more than 5 years under normal use. The manual control mode is simple and easy to operate, suitable for workers without professional technical training. It also has a self-cleaning stirring blade design to avoid material sticking and blockage, reducing daily maintenance frequency by 30% compared with traditional humidifiers.

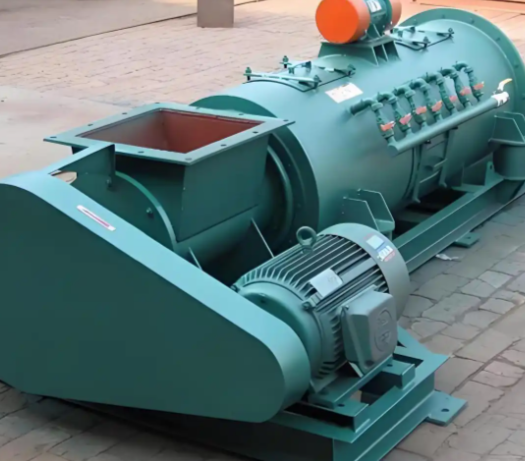

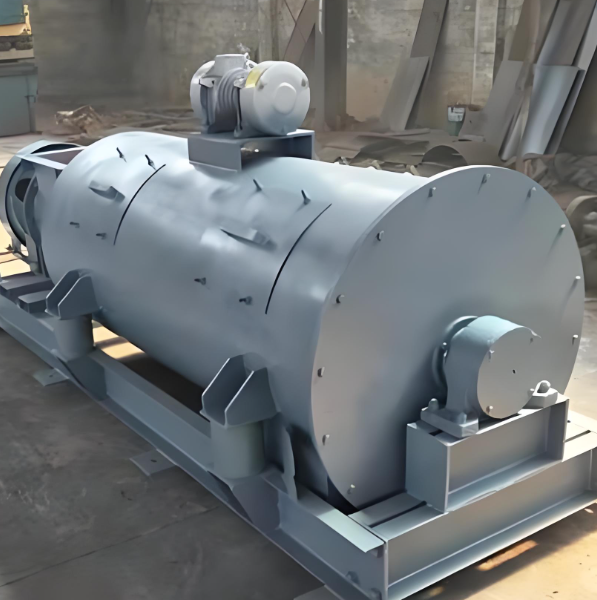

The single shaft fixed dust humidifier has an overall size of 2200mm in length, 800mm in width and 1200mm in height, with a net weight of 850 kg. It is equipped with a 4 kW three-phase asynchronous motor, supporting a processing air volume of 1500-3000 cubic meters per hour, and can handle dust materials with particle size not exceeding 5mm. The discharge pipe specification is Φ300mm, and it adopts a standard 380V/50Hz power supply. The equipment is equipped with a water inlet pipe with a diameter of 25mm, and the spray nozzle can be replaced according to different dust material characteristics.
This equipment is mainly applicable to small and medium-sized industrial scenarios such as small cement grinding stations, ore crushing workshops, food ingredient processing plants, and chemical raw material mixing lines. It can be installed at the feeding port, transfer point or packaging site of the production line to humidify dust materials before they are discharged, effectively reducing dust overflow during material handling. It is also suitable for matching with small-scale bag-type dust removal systems to form a complete dust suppression solution, helping enterprises reduce environmental protection inspection risks and meet the national industrial dust emission standards.
