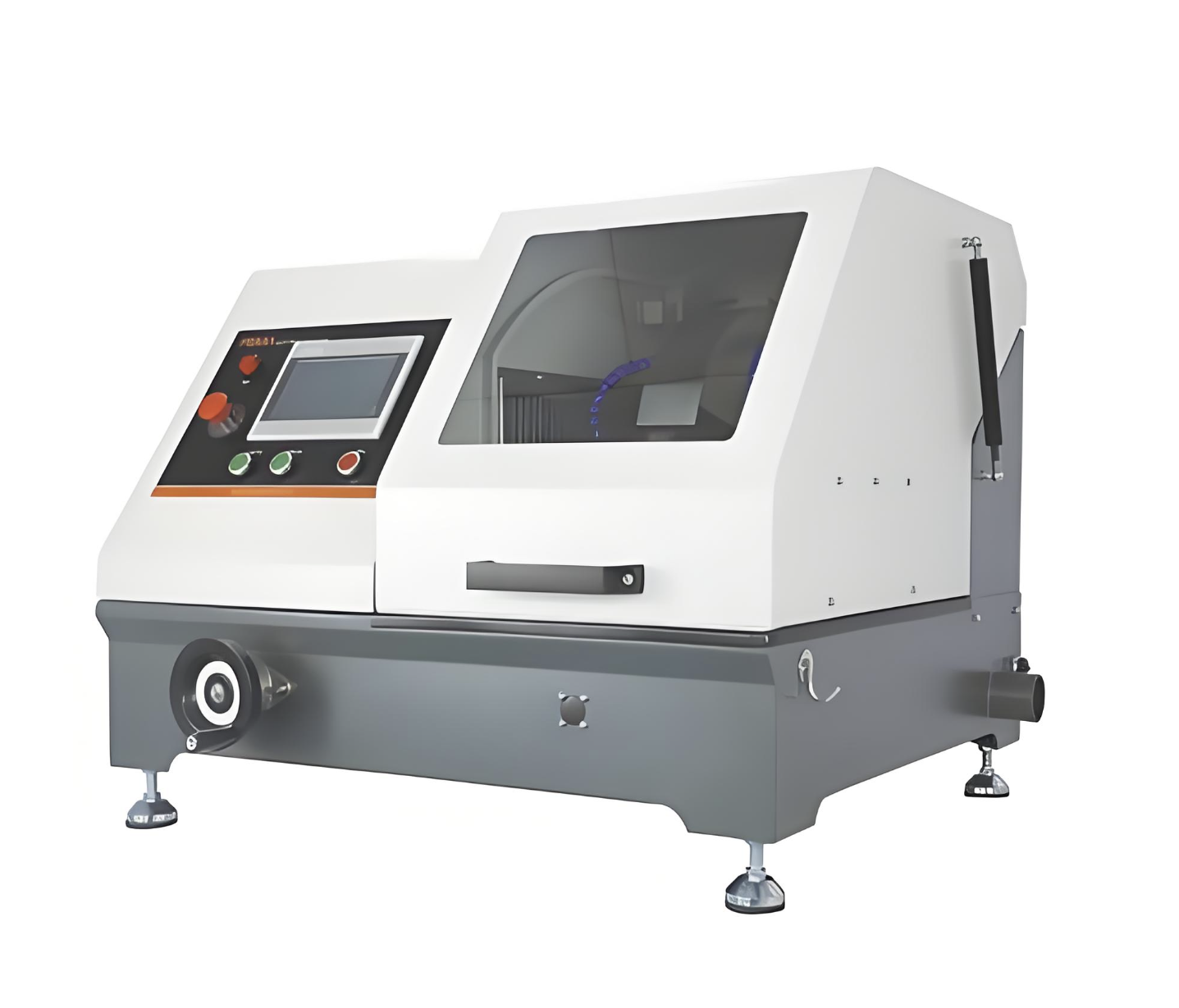

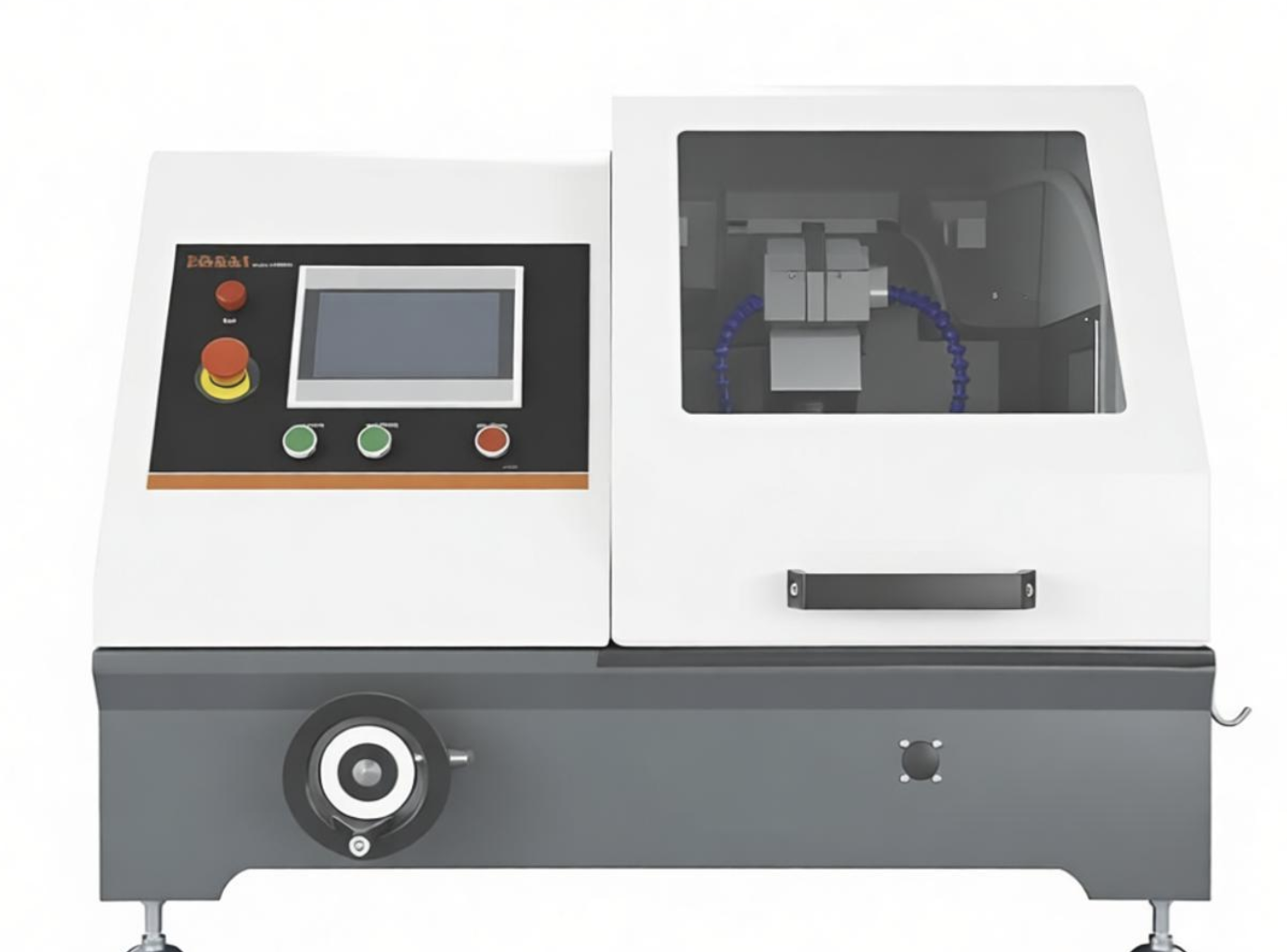

The core advantage of this product is the high-precision automatic feeding system with an accuracy of 0.01mm, which ensures that the cutting surfaces of batch samples have high consistency and flatness, reducing manual operation errors. It supports programmable cutting parameters, including feeding speed, cutting depth and other adjustable options, which can meet the cutting needs of different materials. The equipment is equipped with an intelligent overheating protection system, which automatically stops the machine when the motor temperature exceeds the threshold, extending the service life of the equipment. The dust-proof protective cover design reduces the diffusion of cutting debris, improving the working environment.
The equipment has a maximum cutting diameter of 180mm and a maximum cutting thickness of 120mm, matching φ250×2.0mm standard cutting discs. The motor power is 2.2kW, with a rated speed of 2400rpm, providing sufficient power for cutting large and hard materials. The automatic feeding stroke ranges from 0 to 150mm, and the feeding speed can be adjusted from 0.5 to 50mm/s. The operating table is made of cast iron, with good stability and vibration reduction effect. The safety protection grade reaches IP23, which can resist splashing water, suitable for working environments with water cooling systems. The total weight is 210kg, which needs to be fixed by matching the supporting base.
This equipment is suitable for large-scale material testing centers, automobile manufacturing enterprises, aerospace material detection departments and other scenarios with mass sample cutting needs. It can cut large metal blocks, alloy materials, composite materials and other samples, providing high-quality and consistent cutting surfaces for subsequent metallographic analysis. It can replace multiple manual cutting equipment to improve production efficiency, reduce labor costs, and meet the mass production inspection needs of the manufacturing industry.
