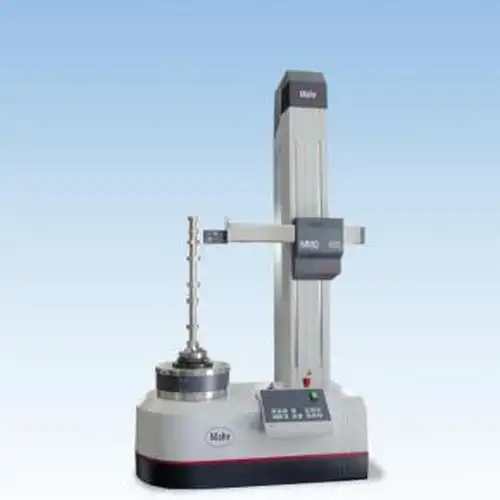

It adopts wireless data transmission technology, which can synchronize detection data to mobile terminals or PC terminals in real time for analysis. It has a self-calibration function, and no professional technicians are required to complete startup calibration. It supports offline data storage and can complete detection in a network-free environment. The body is shock-proof and adapts to complex on-site environments. It is equipped with an intelligent voice prompt function, simplifying the operation process and reducing the learning cost of operators.
Host size: 450mm(L) × 320mm(W) × 280mm(H), detection accuracy 0.1μm, maximum workpiece diameter 200mm, maximum workpiece load 100kg, piezoelectric sensor range ±200μm, spindle rotation accuracy ≤0.05μm, power supply DC 12V 20Ah rechargeable lithium battery, charging time about 3 hours, battery life 8 hours, working temperature range 0-40℃, relative humidity 30-70% RH, data storage capacity ≥5000 sets, protection grade IP54.
It is suitable for on-site quality inspection in industries such as heavy industry, wind power, rail transit, and shipbuilding. Specifically, it can be used for roundness detection of wind turbine tower flanges, on-site inspection of large motor spindles, form error inspection of engineering machinery castings, bearing inspection of railway locomotives, and on-site quality inspection of ship parts. It can help enterprises complete quality control on-site without moving large workpieces, reducing transportation and disassembly costs.
