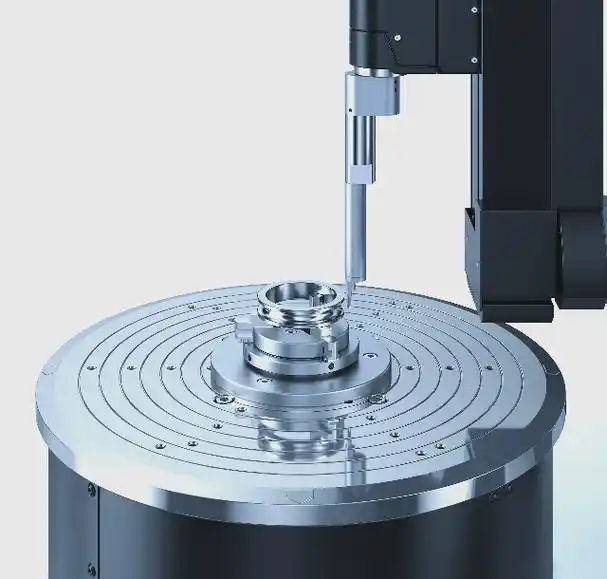

It adopts a compact modular design, and is equipped with an automatic spindle calibration system, which can quickly complete startup preparation. It supports rapid replacement of special fixtures for micro workpieces. The capacitive sensor will not damage the surface of micro parts. It is equipped with a high-precision temperature compensation function, eliminating the influence of environmental temperature changes on detection results. It supports one-click generation of detection reports, and data can be exported to professional analysis software for in-depth analysis. The operation interface is simple and intuitive, reducing the use threshold of operators.
Host size: 600mm(L) × 400mm(W) × 800mm(H), detection accuracy 0.08μm, maximum workpiece diameter 50mm, workpiece height range 10-100mm, capacitive sensor range ±100μm, spindle rotation accuracy ≤0.03μm, power supply DC 24V 5A, power consumption about 100W, total weight 45kg, working temperature 20±3℃, relative humidity 35-65% RH, data storage capacity ≥2000 sets, detection repeat accuracy ≤0.04μm.
It is suitable for quality control of micro parts in industries such as semiconductor packaging, micro machinery manufacturing, and medical electronics. Specifically, it can be used for roundness detection of chip packaging pins, inspection of micro bearing inner and outer rings, form error detection of micro gears, inspection of precision medical device micro parts, and inspection of micro motor rotors. It can help micro manufacturing enterprises improve the quality and consistency of micro parts.
