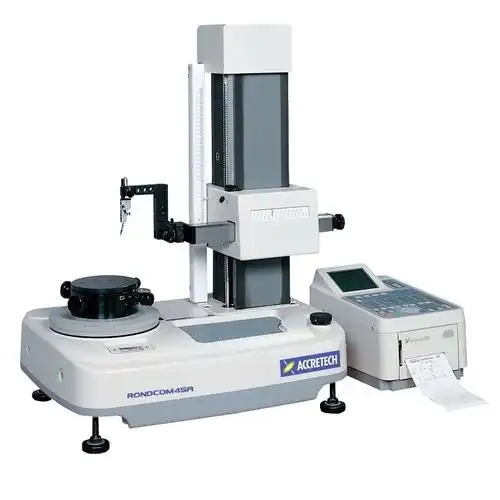

It adopts dynamic error compensation technology to solve the spindle rotation error problem of traditional roundness testers, supports one-click automatic calibration, is compatible with a variety of workpiece fixtures, and can export data to CAD/CAM software for analysis. It also has remote operation and maintenance functions, which can realize remote fault diagnosis and parameter adjustment. The equipment is equipped with a professional data analysis system, which can automatically generate standardized test reports, and supports multi-user authority management to meet the needs of different departments for data viewing and operation.
Host size: 1200mm(L) × 800mm(W) × 1500mm(H), detection accuracy 0.02μm, maximum workpiece diameter 300mm, maximum workpiece height 400mm, sensor range ±500μm, spindle rotation accuracy ≤0.01μm, power supply AC 100-240V 50/60Hz, power consumption about 800W, total weight 350kg, working temperature 20±2℃, relative humidity 40-60% RH, data storage capacity ≥10000 sets of detection data, detection repeat accuracy ≤0.01μm.

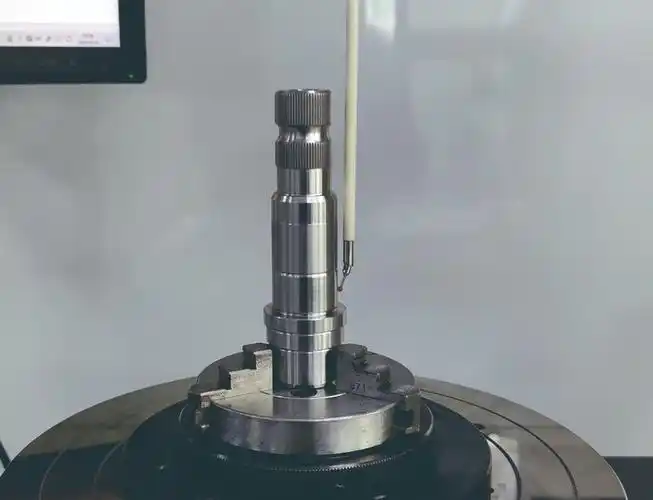

It is suitable for the quality control of precision parts in industries such as aerospace, semiconductor manufacturing, medical equipment, precision bearings, and precision tools. Specifically, it can be used for roundness detection of aerospace precision gears, form error detection of semiconductor packaging components, coaxiality detection of medical device precision parts, and roundness inspection of precision bearings. It can help enterprises realize full-process quality control of parts and improve product competitiveness.
