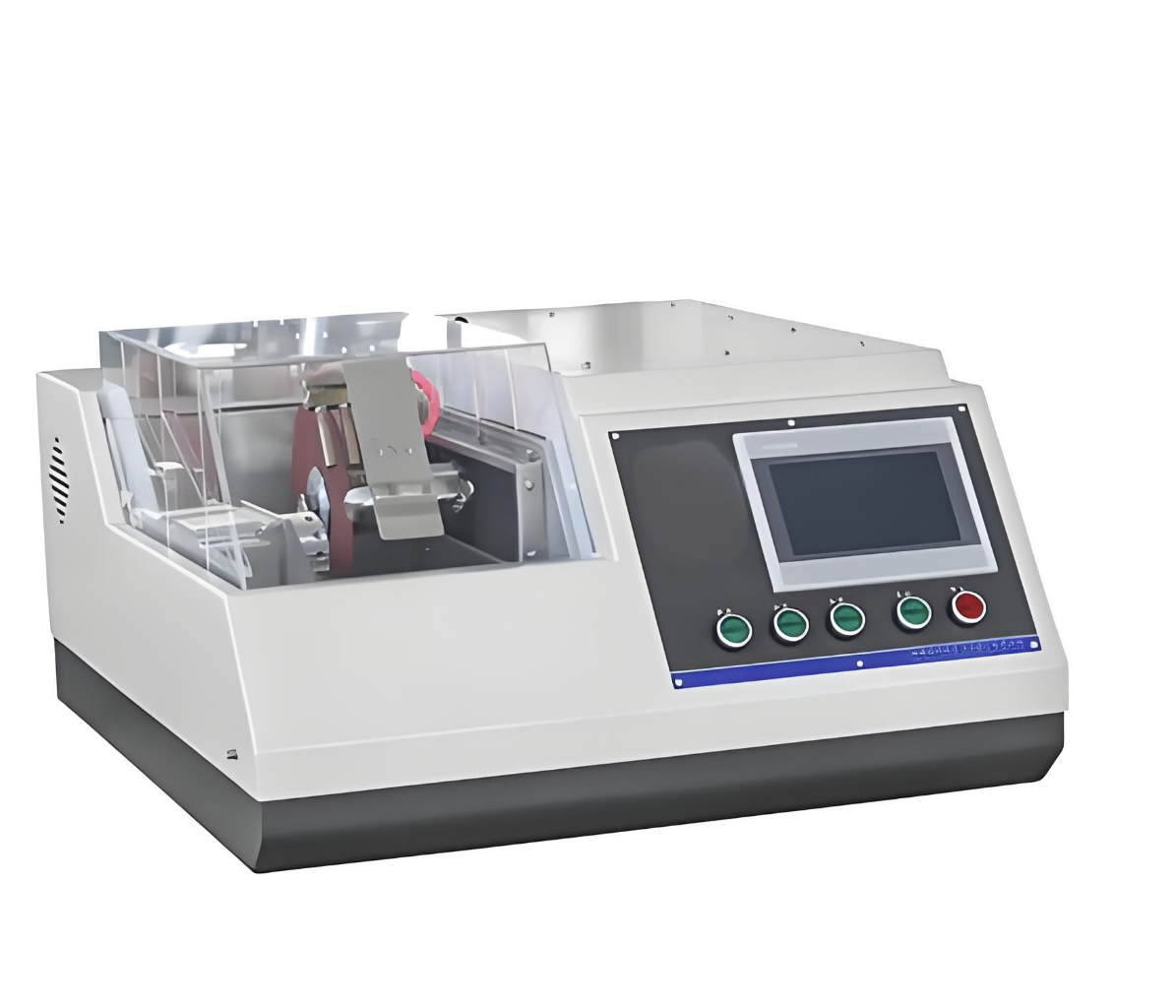

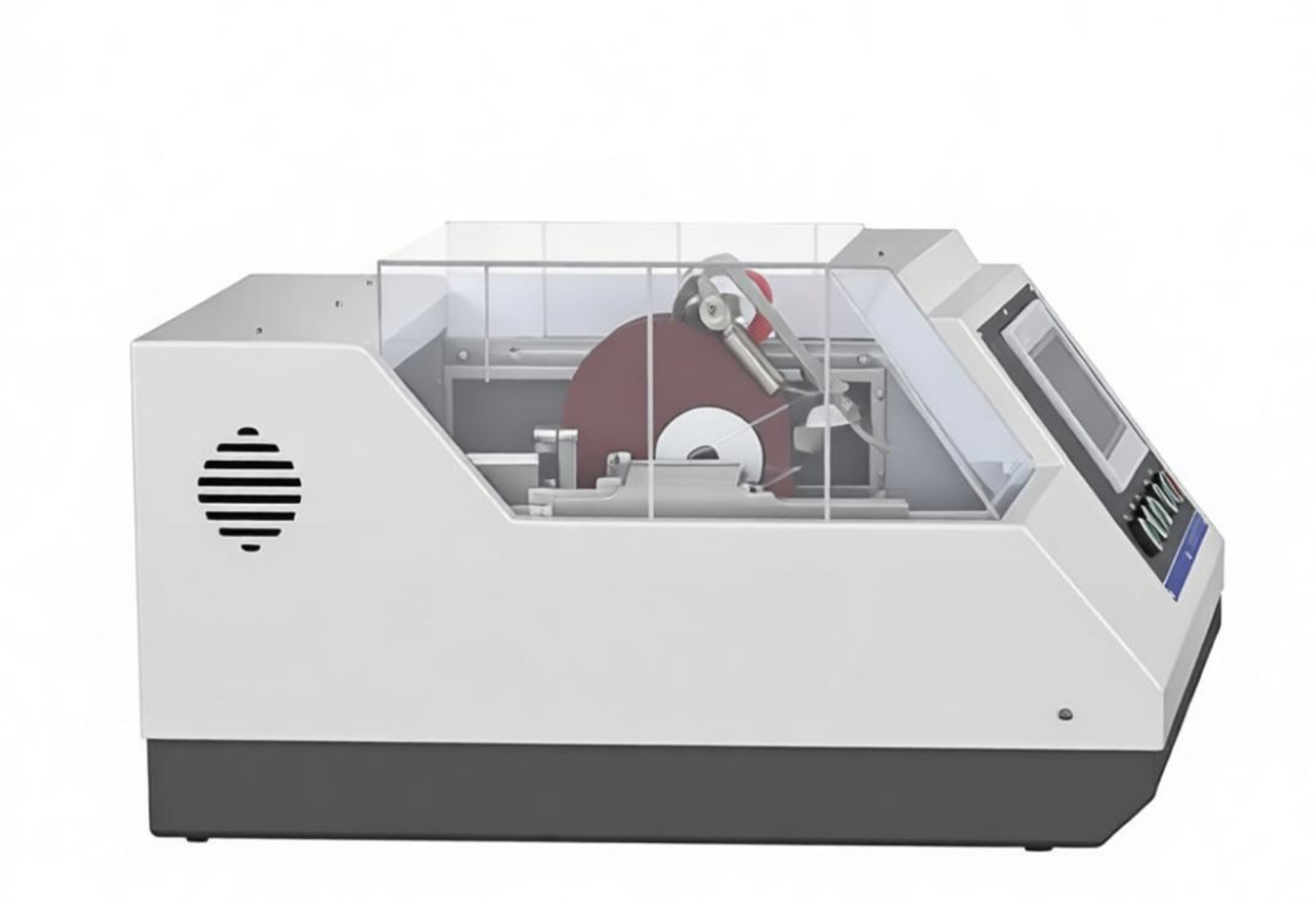

It adopts a pneumatic automatic clamping system that can quickly fix samples of different sizes without manual repeated calibration. It is equipped with a CNC programmable control system that can preset cutting length and speed to realize unattended batch cutting operations. The micro-spray cooling system is matched with a dry debris collection device, which not only avoids overheating damage to the sample but also reduces the trouble of waste liquid treatment, meeting environmental protection testing requirements. It is equipped with a high-definition vision alignment system that can accurately align the sample marking points to ensure the accuracy of the cutting position, with a cutting accuracy of ±0.01mm. The fully enclosed dust-proof protection structure with IP65 protection grade adapts to harsh laboratory production environments.
The whole machine has dimensions of 1200mm×800mm×1100mm and a net weight of 180kg. It is equipped with a 250mm diamond cutting disc as standard, with a maximum cutting section of 200mm×150mm. The working speed is steplessly adjusted in the range of 500-2000rpm. The power supply is 380V 50Hz three-phase AC with a rated power of 3kW. The workbench is equipped with a high-precision linear guide rail, and the automatic feeding accuracy can reach 0.01mm. It is equipped with a 7-inch touch operation panel that can store 100 sets of cutting procedures to adapt to the cutting needs of different batches of samples. The debris collection box adopts a drawer design for convenient regular cleaning of metal and debris waste.
It is mainly used in third-party material testing institutions, auto parts R&D workshops and aerospace material quality inspection centers. It is suitable for batch cutting and preparation of large-sized metal castings, composite materials plates and welded joint samples, and can meet the high-intensity and high-precision automatic sample cutting needs. It effectively improves the efficiency and consistency of sample preparation in laboratories and reduces errors caused by manual operations.
