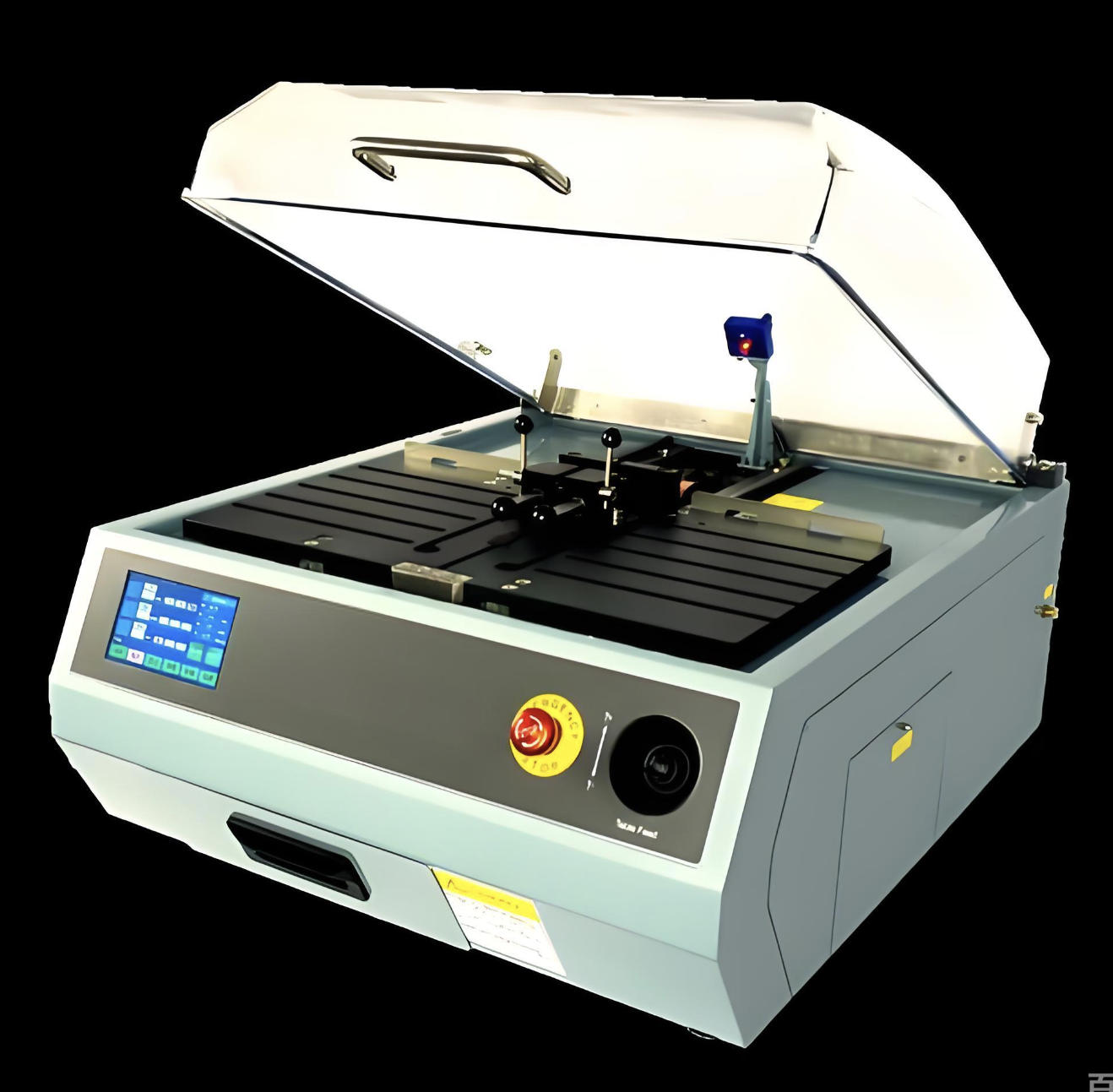

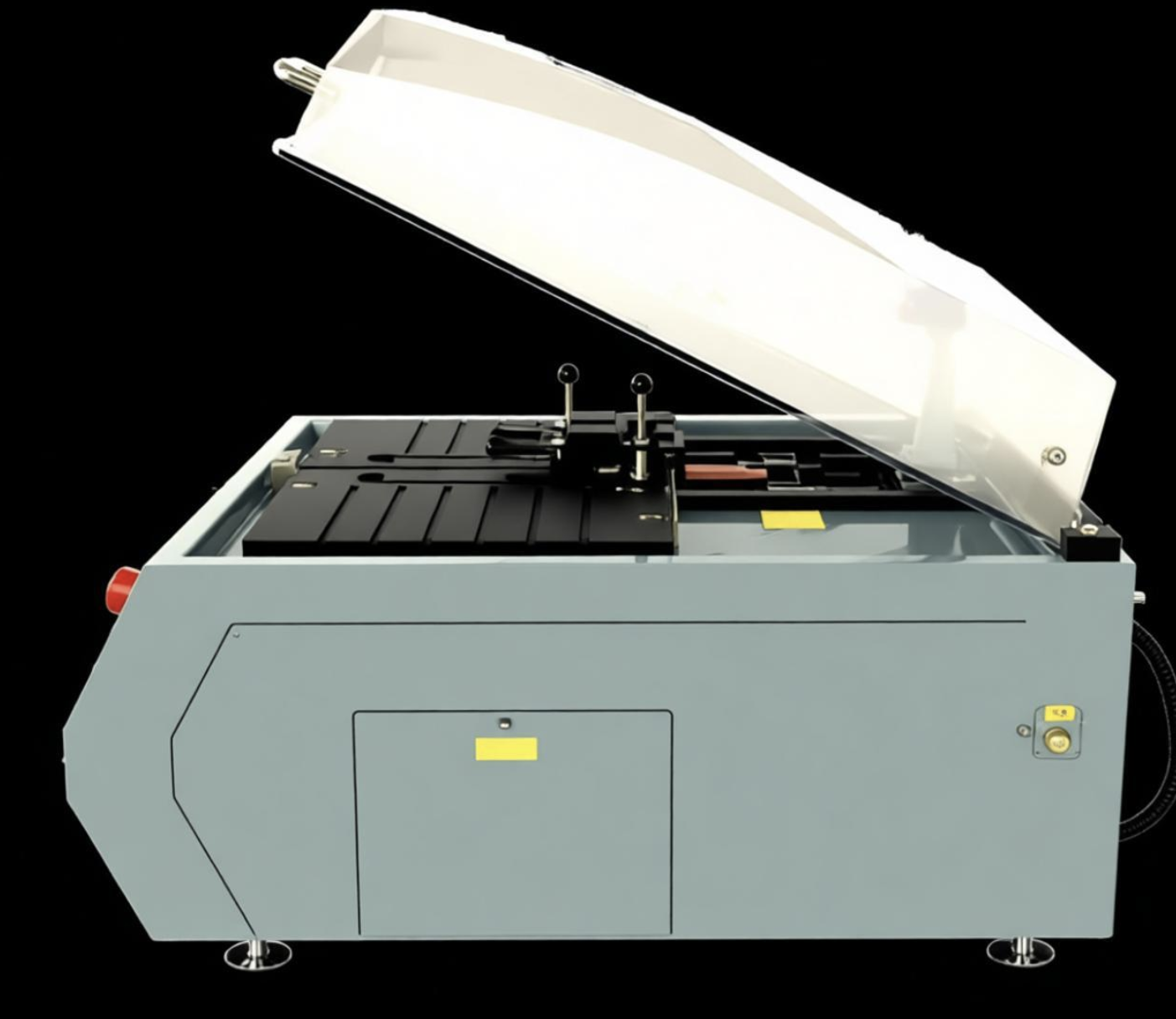

This portable metallographic cutter has the core advantage of strong mobility, solving the problem that traditional metallographic cutters can only be used in fixed laboratories. The aluminum alloy body is lightweight and corrosion-resistant, ensuring long service life in outdoor environments. The built-in battery-powered fan cooling system can effectively reduce the temperature of the blade and sample during cutting, avoiding sample overheating. The quick-release vice clamping system allows for quick replacement and fixation of samples, improving on-site operation efficiency. It is equipped with a compact and labor-saving manual feeding handle, which is easy to operate even in narrow working spaces. It also has a low-noise design, reducing the impact on the working environment during use.
Detailed product specifications include: Max Cutting Diameter 40mm, Max Cutting Thickness 25mm, Motor Power 0.5kW, Rated Rotating Speed 3000r/min, Blade Size Φ180×1.5×25mm, Clamping Range 5-40mm, Battery Capacity 20000mAh, Continuous Working Time 2-3 Hours, Charging Time 2-4 Hours, Overall Dimension 350mm (Length) × 280mm (Width) × 420mm (Height), Net Weight 12kg, Cutting Accuracy ±0.03mm, Operation Mode Manual Control, Safety Standards CE Certified.
This portable rechargeable metallographic cutter is widely used in on-site material inspection in fields such as construction machinery, electric power, railway, shipbuilding and petrochemical industry. It can realize on-site sample preparation of metal materials, non-metallic materials and composite materials, providing real-time sample support for on-site failure analysis, material quality inspection and project acceptance. It is an ideal equipment for mobile metallographic sample preparation in outdoor and no-power environments.
