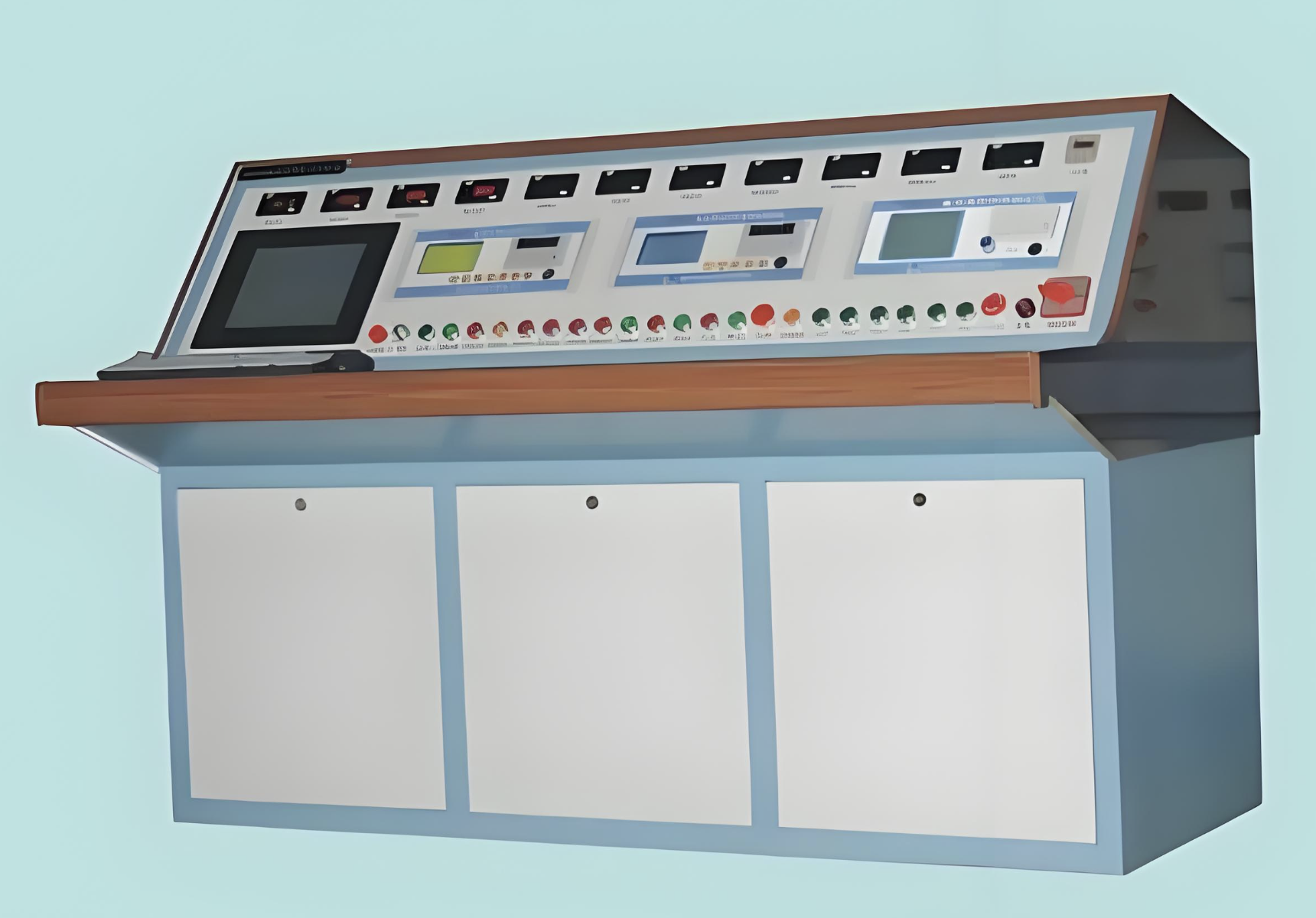

The core advantage of this test bench lies in its intelligent and high-precision testing performance. Equipped with a 15-inch industrial touch screen, it provides a professional operation interface, supporting one-key test start and automatic report generation. It uses optical fiber data transmission, which has strong anti-interference ability, suitable for strong electromagnetic environment of high voltage substations. The AI intelligent analysis system can compare test data with standard data, identify abnormal data, and predict equipment service life, solving the pain point that professional technicians are required to analyze test data in traditional high voltage testing. It also supports remote monitoring and debugging, allowing experts to remotely guide field testing, reducing the cost of on-site technical support.
The overall dimensions are 2000*1200*1500mm, with a net weight of 850kg. The test voltage range is 0-220kV, test current range is 0-2000A, suitable for transformers with capacity of 5000-100000kVA. The power supply is AC380V 3-phase 50Hz, with a power consumption of less than 15kW. It is equipped with a 15-inch industrial LCD touch screen, supports storage of over 10000 test reports, and is equipped with optical fiber, Ethernet and 4G interfaces for high-speed data transmission and remote control. The certification meets CE, UL and IEC61869 standards, with an operating temperature range of -10℃ to 50℃, and the shell is made of thickened steel plate with anti-corrosion treatment to meet the protection requirements of outdoor substations.
This test bench is mainly applicable to national grid substations, ultra-high voltage thermal power plants, large transformer manufacturing plants, electric power research institutes and key national engineering power supporting projects. It can meet the type testing and routine testing needs of large-scale high voltage transformers, helping power grid enterprises and manufacturing enterprises to obtain accurate test data, ensure the safe and stable operation of power equipment, and meet the testing standards of international power industry.
