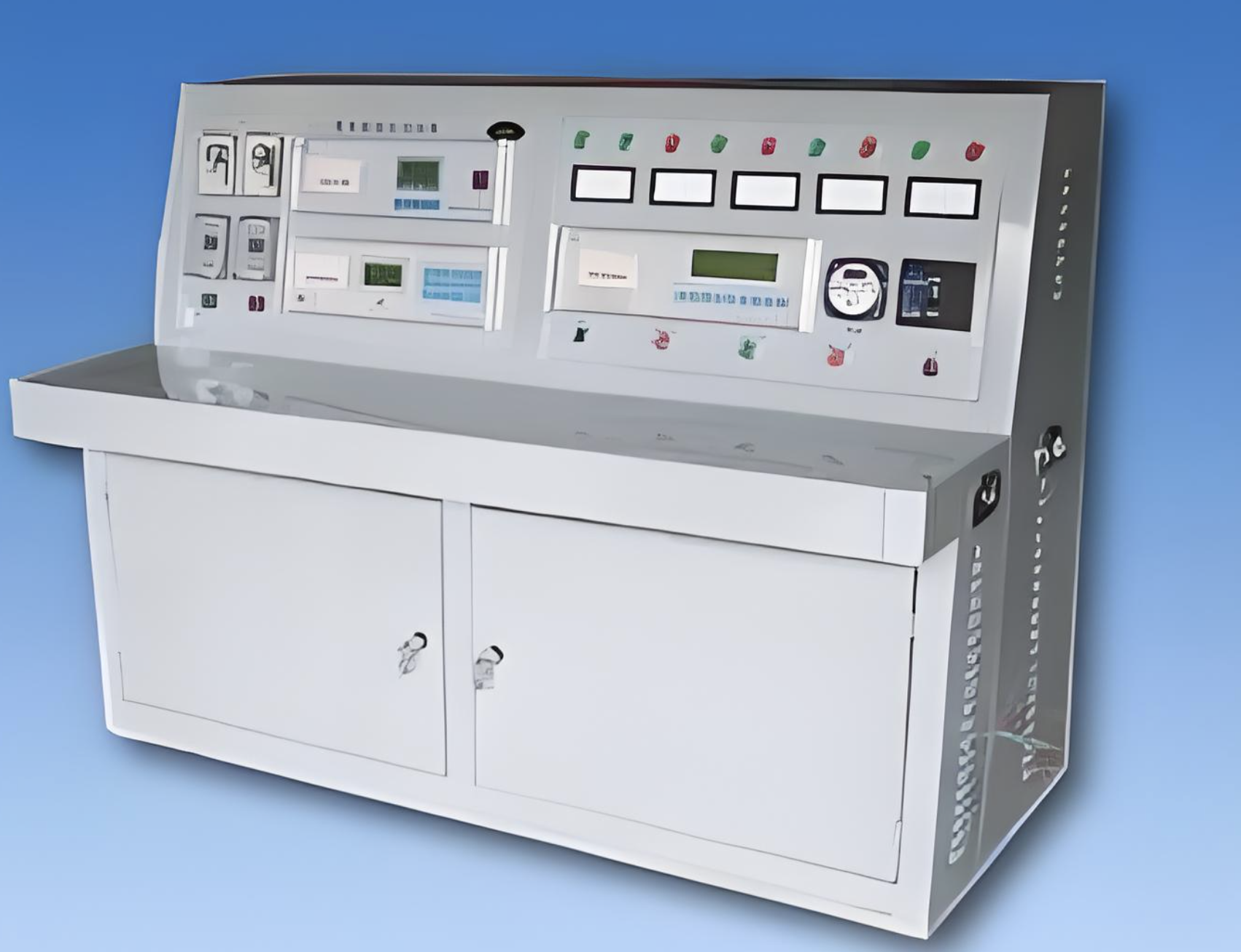

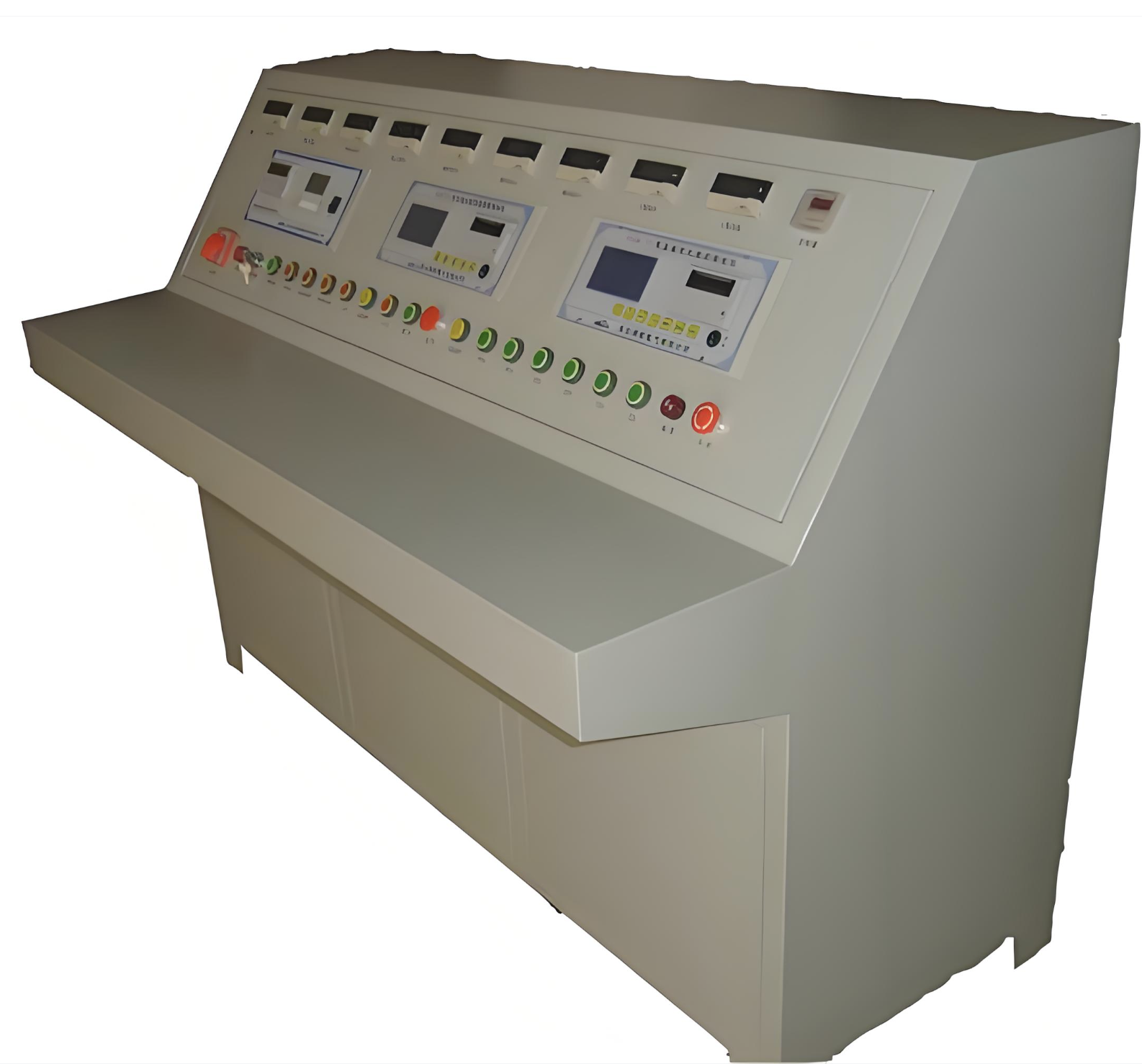

This test bench is equipped with a built-in IoT communication module, supporting 4G and WiFi wireless communication, which can automatically upload test reports and real-time test data to the designated industrial cloud platform. It supports remote control and data query via mobile phones or computers, and can carry out intelligent analysis of test results, automatically generating evaluation reports of transformer performance. The large-touch human-computer interaction interface supports multi-language switching, meeting the needs of different users. It solves the problems of inconvenient data management, low efficiency of personnel scheduling, and lack of intelligent management means for traditional transformer testing equipment.
Test Voltage Range: 0~35kV with stepless adjustment; Test Current Range: 0~200A with automatic gear shifting; Accuracy Grade: Class 0.2 for voltage and current detection; Max Test Transformer Capacity: 5000kVA; Net Weight: 190kg; Overall Dimension: 1250mm (length) × 850mm (width) × 1050mm (height); Power Supply: AC 380V±10% 50Hz; Built-in test items include insulation resistance test, transformer turns ratio test, DC winding resistance test, no-load loss and no-load current test, partial discharge test; Data storage supports 100000+ test reports with full query and export functions; Communication interfaces: USB 2.0, RS485, Ethernet, 4G/WiFi; Protection Grade: IP30; Shell Material: Thickened cold-rolled steel plate; Cloud Platform Support: Compatible with mainstream industrial IoT platforms such as Alibaba Cloud and Huawei Cloud.
It is mainly applicable to large-scale power grid companies, intelligent substations, regional power maintenance centers, and intelligent power management enterprises. Typical usage scenarios include centralized management of transformer testing in large power grids, remote monitoring of transformer testing status, and intelligent analysis of transformer performance data. It can also be used to establish a unified transformer testing data management platform, realizing the digital management of transformer testing business.
