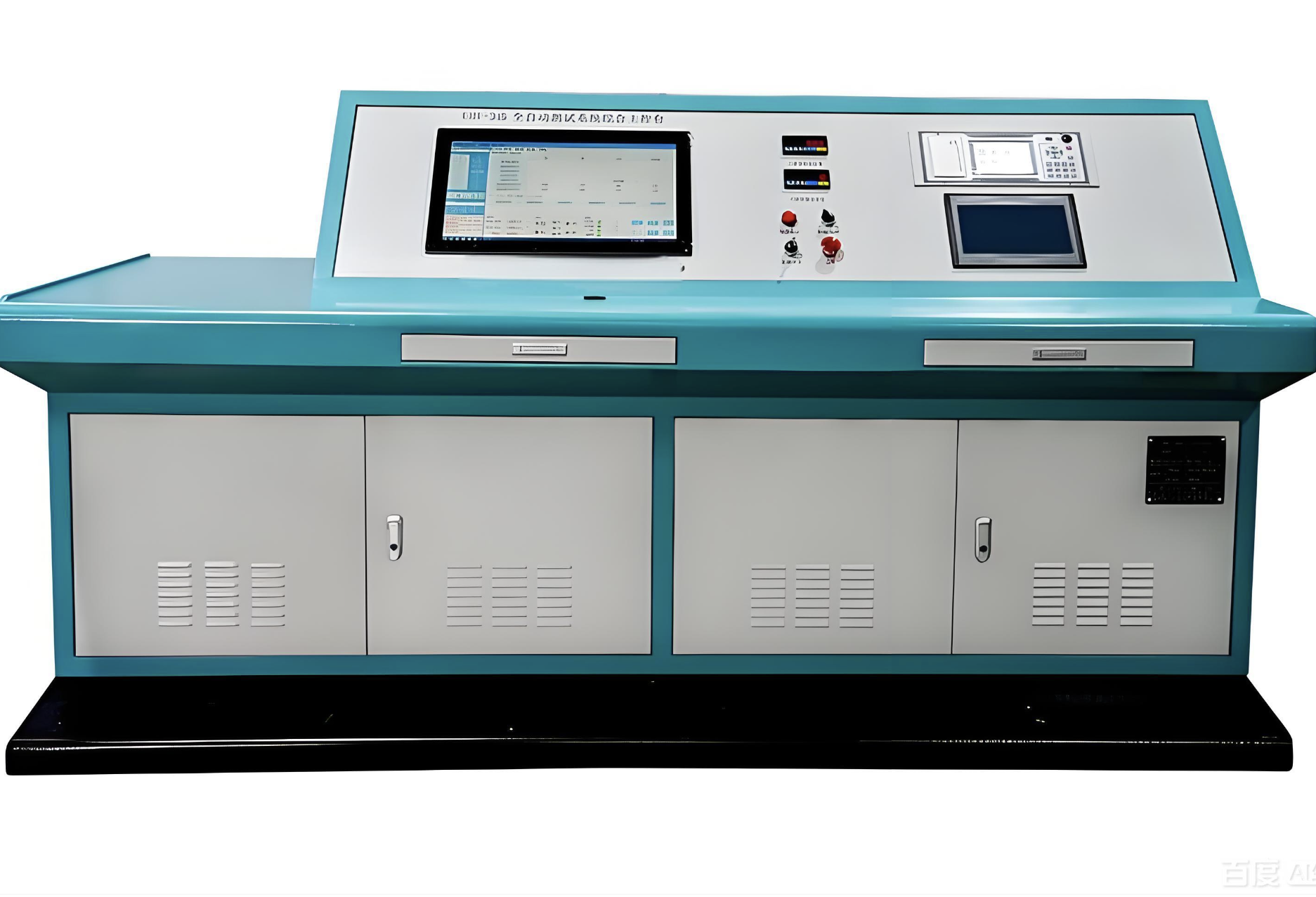

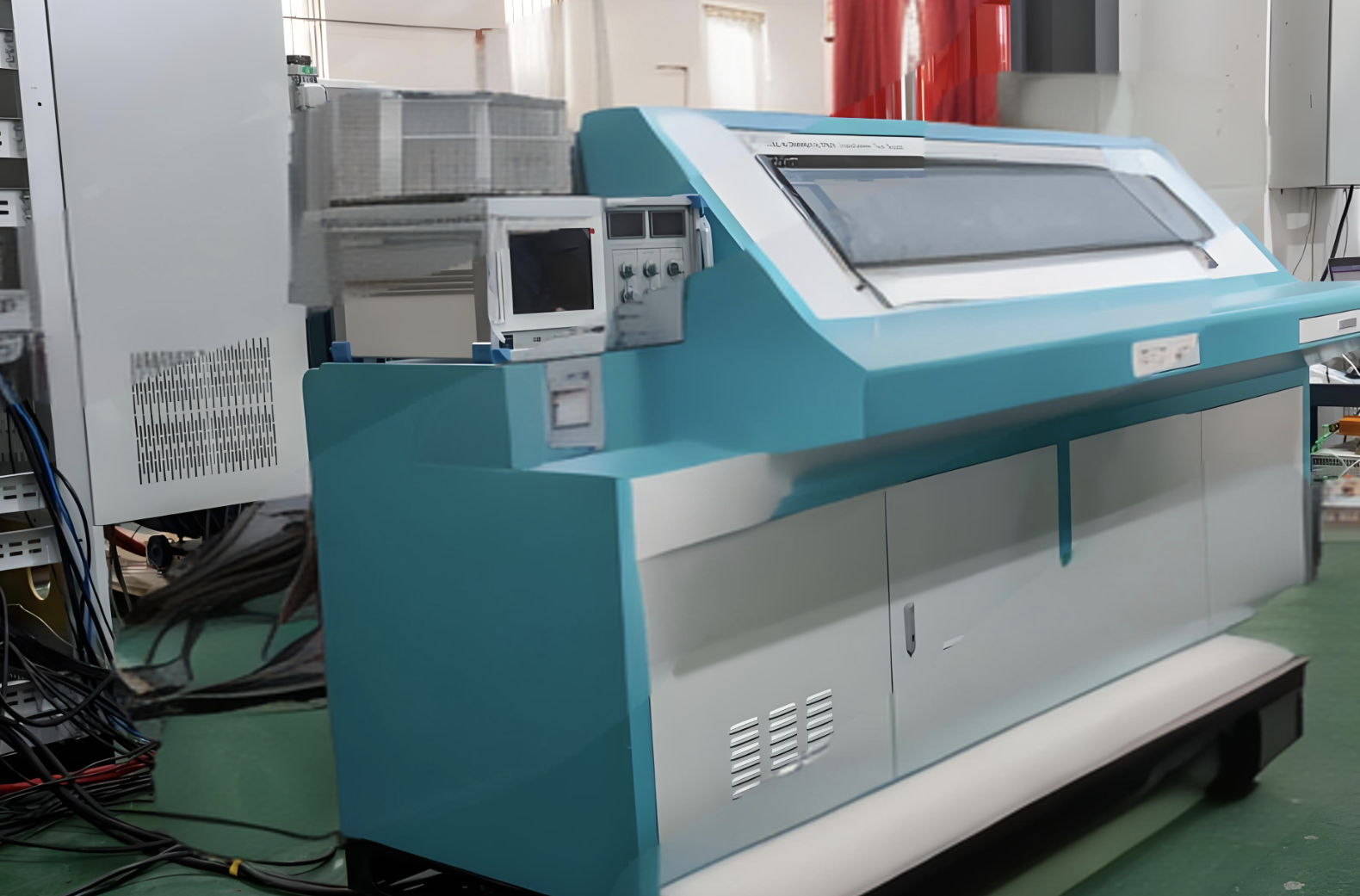

This test bench adopts a precision industrial-grade design, with a high-precision voltage and current acquisition module that ensures the test accuracy reaches Class 0.2, meeting the national standard for transformer quality inspection. It is equipped with a large-touch human-computer interaction interface, supporting real-time display of test data and automatic generation of standard test reports that meet the requirements of power industry standards. The thickened cold-rolled steel shell has good shock resistance and dustproof performance, suitable for fixed industrial workshop environments. It solves the problems of scattered test items, long test preparation time, and low data standardization of traditional split transformer test equipment.
Test Voltage Range: 0~35kV with stepless adjustment; Test Current Range: 0~200A with automatic gear shifting; Accuracy Grade: Class 0.2 for voltage and current detection; Max Test Transformer Capacity: 5000kVA; Net Weight: 185kg; Overall Dimension: 1200mm (length) × 800mm (width) × 1000mm (height); Power Supply: AC 380V±10% 50Hz; Built-in test items include insulation resistance test, transformer turns ratio test, DC winding resistance test, no-load loss and no-load current test, short-circuit loss test, partial discharge test; Data storage supports 50000+ test reports with full query and export functions; Communication interfaces: USB 2.0, RS485, Ethernet; Protection Grade: IP30; Shell Material: Thickened cold-rolled steel plate.
It is mainly applicable to transformer manufacturing plants, large power supply companies, power system maintenance centers, and third-party power detection institutions. Typical usage scenarios include factory inspection of 35kV distribution transformers and power transformers, acceptance testing of newly installed medium-voltage transformers in substations, and performance testing of transformers after major maintenance. It can fully meet the professional testing requirements of medium-voltage transformers in industrial production and power system maintenance.
