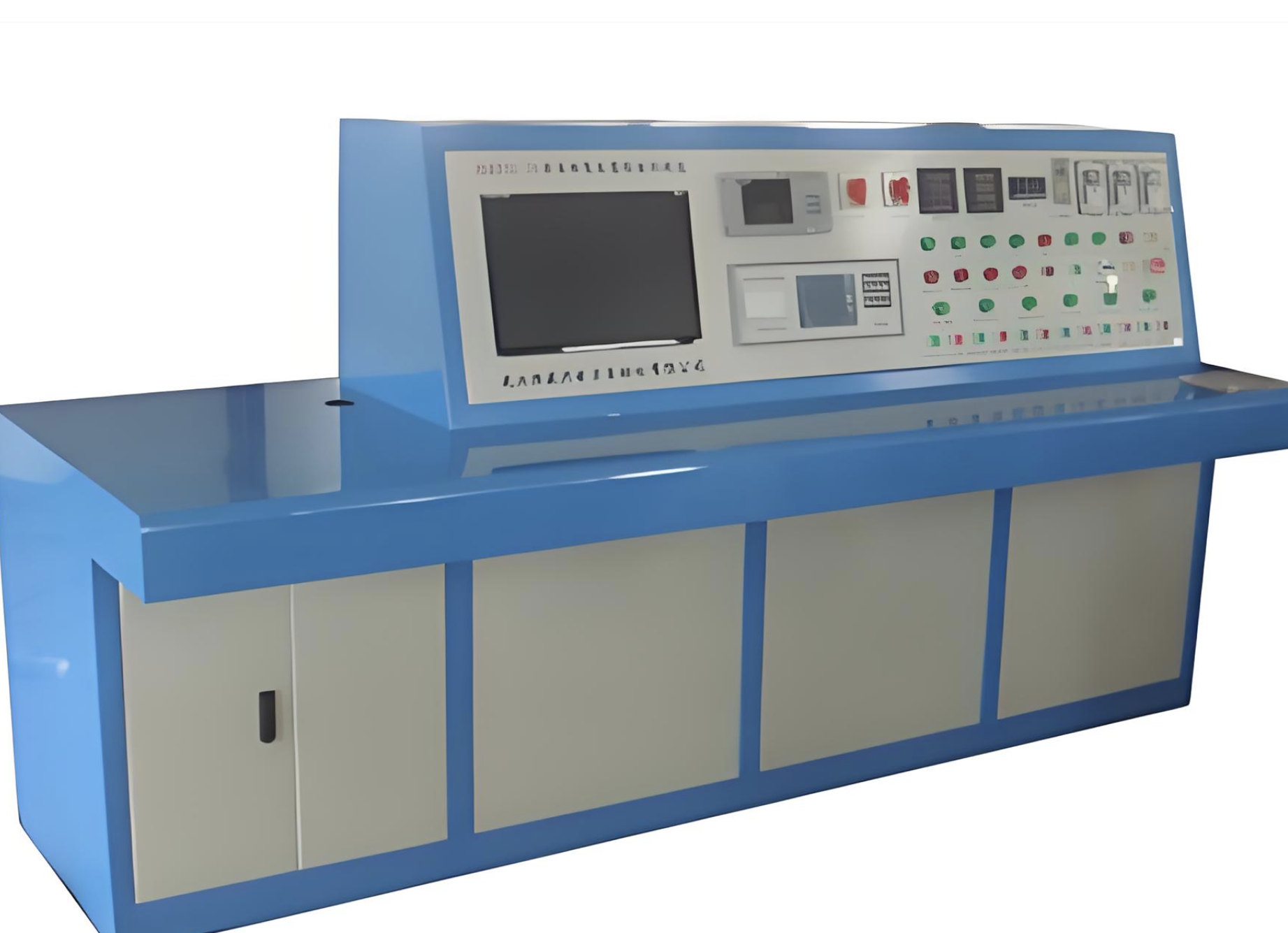

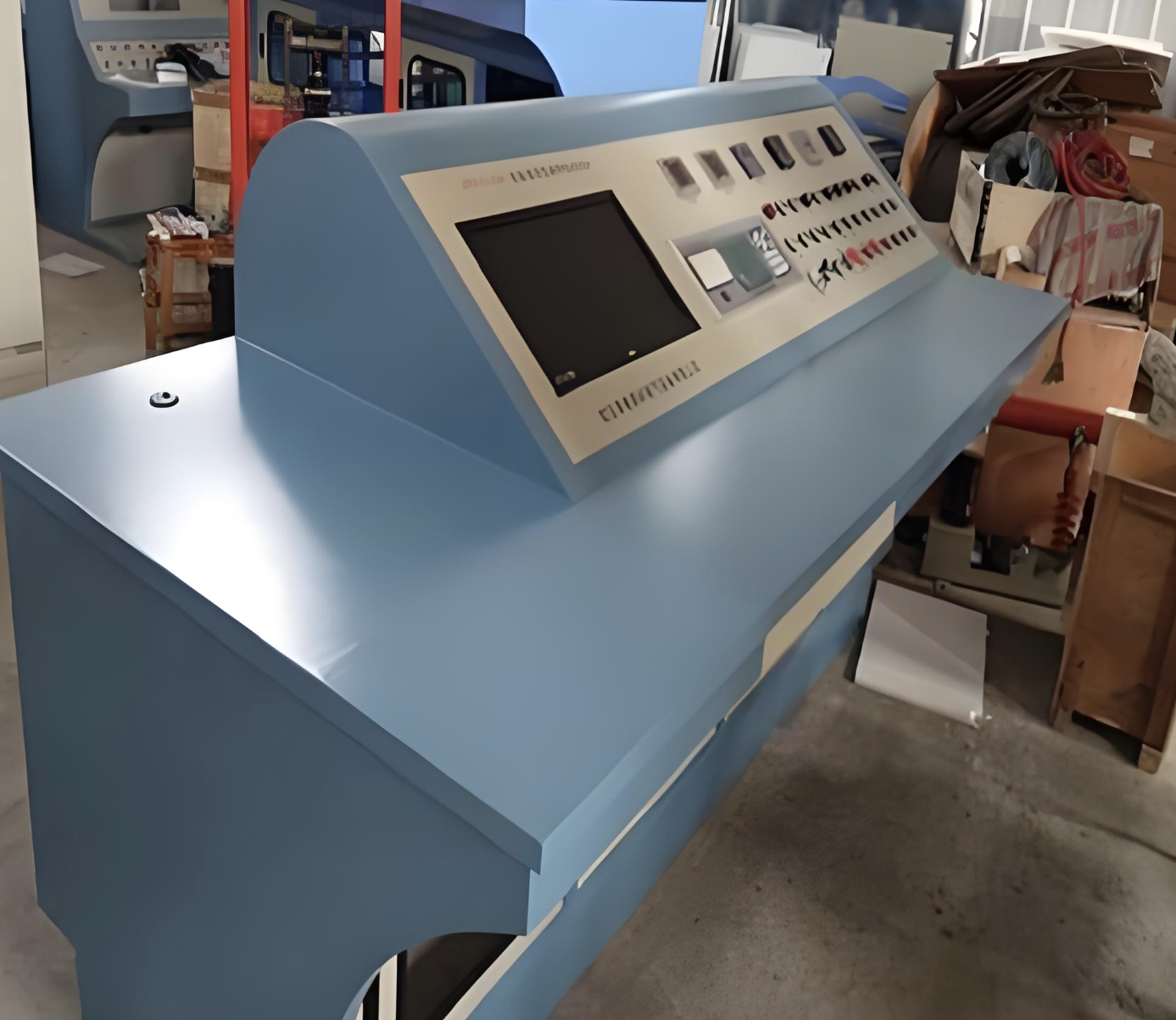

Explosion-proof Outdoor Transformer Comprehensive Test Bench

Product features:

This test bench has passed the national Ex d IIB T4 explosion-proof certification, with a fully enclosed aluminum alloy shell, which can effectively prevent the spread of sparks and explosions in flammable and explosive environments. The shell has IP65 protection grade, which can resist dust and rain erosion, suitable for long-term outdoor use. It is equipped with a shockproof buffer layer inside, which can adapt to the bumpy road conditions during transportation. It supports one-key test and Bluetooth data transmission, and can generate standard test reports in PDF format. It solves the problems of low safety, poor environmental adaptability, and inconvenient operation of traditional transformer testing equipment in special environments.

Product specifications:

Test Voltage Range: 0~10kV with adjustable gears; Test Current Range: 0~100A with automatic shifting; Accuracy Grade: Class 0.5 for voltage and current detection; Max Test Transformer Capacity: 2000kVA; Net Weight: 75kg; Overall Dimension: 800mm (length) × 600mm (width) × 500mm (height); Power Supply: Dual-purpose AC 220V±10% 50Hz or AC 380V±10% 50Hz; Built-in test items include insulation resistance test, transformer turns ratio test, DC winding resistance test, no-load loss and no-load current test; Data storage supports 20000+ test reports with query and export functions; Communication interfaces: USB 2.0, RS485, Bluetooth 5.0; Protection Grade: IP65; Explosion-proof Certification: Ex d IIB T4; Shell Material: Aluminum alloy shell with explosion-proof surface treatment.

Product application:

It is mainly applicable to transformer testing in flammable and explosive places such as oil fields, mines, chemical plants, and offshore platform substations. Typical usage scenarios include regular inspection of transformers in oil extraction stations, post-maintenance performance testing of mine transformers, and acceptance testing of newly installed transformers in chemical plant substations. It can safely and efficiently complete transformer testing in special hazardous environments, meeting the safety requirements of special industries.
