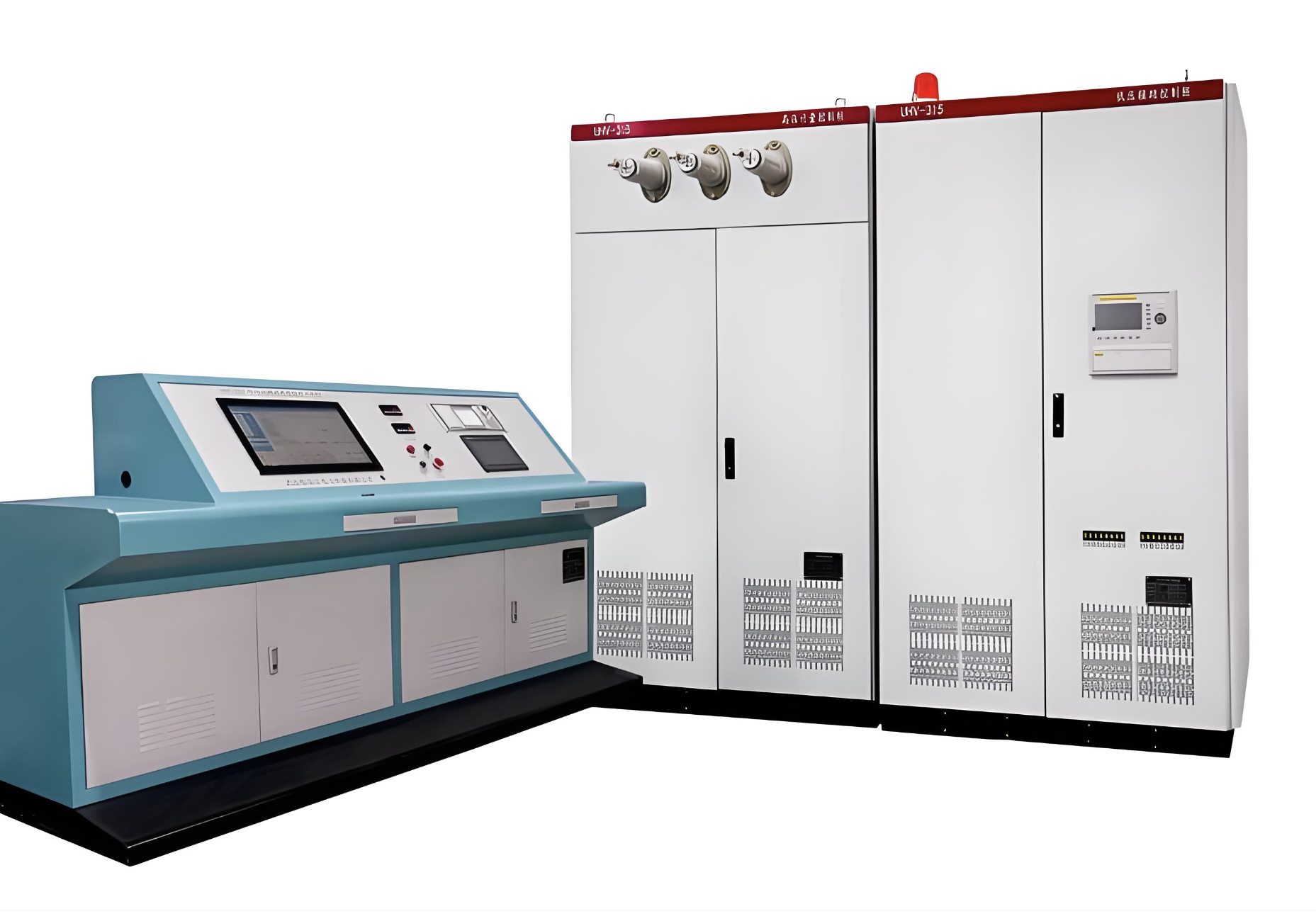

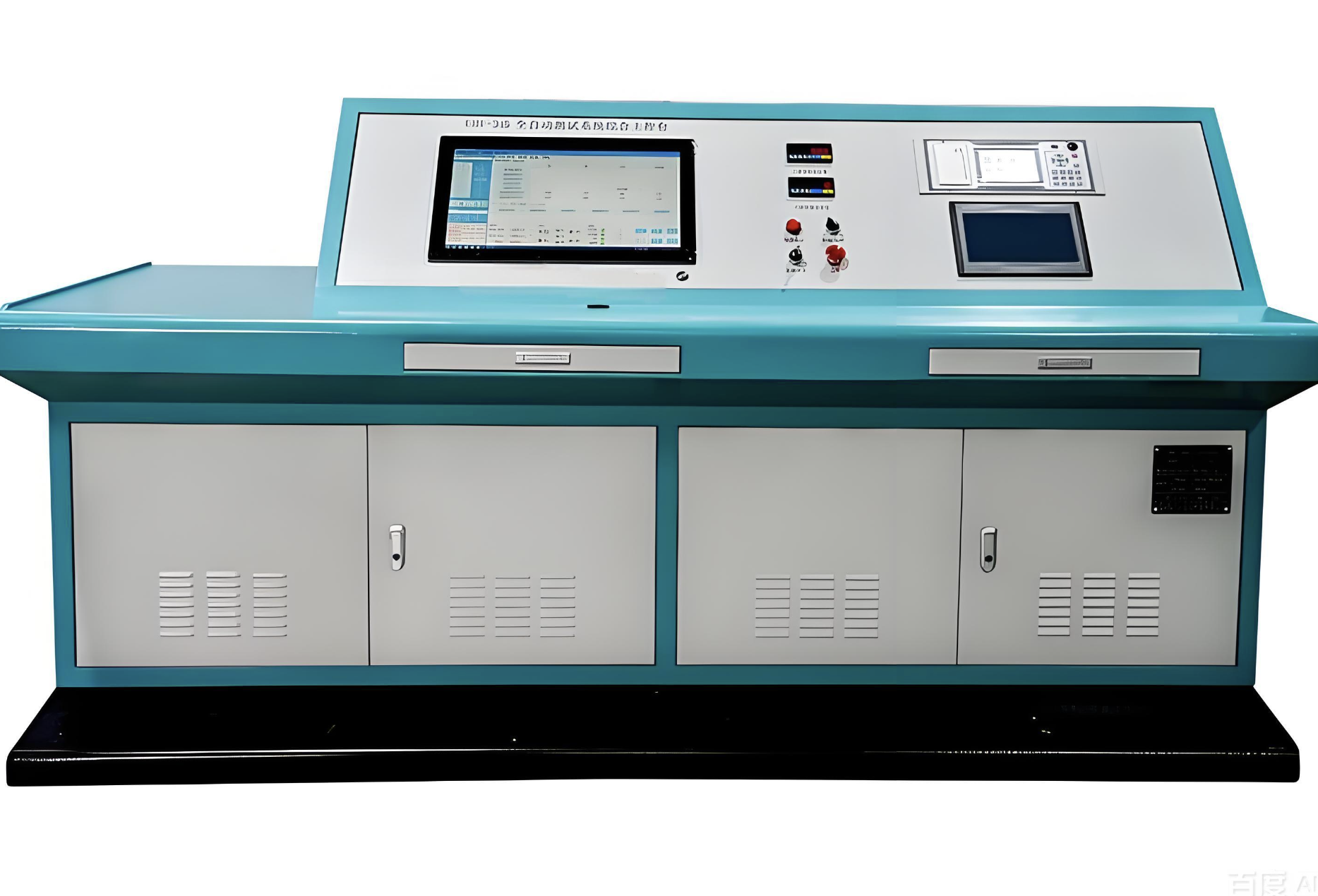

Multi-spec Compatible Transformer Comprehensive Test Bench

Product features:

This test bench is equipped with adjustable test fixtures, which can adapt to transformers of different sizes and specifications, meeting the testing requirements of various types of transformers. It adopts a modular design, which can be flexibly configured according to user needs, and supports the addition of special test functions. The large-touch human-computer interaction interface supports quick switching of test modes, and can automatically identify the type of transformer to be tested and match the corresponding test parameters. It solves the problems of single applicable scope, high procurement cost, and complicated operation of traditional transformer testing equipment.

Product specifications:

Test Voltage Range: 0~35kV with stepless adjustment; Test Current Range: 0~150A with automatic gear shifting; Accuracy Grade: Class 0.5 for voltage and current detection; Max Test Transformer Capacity: 5000kVA; Net Weight: 130kg; Overall Dimension: 1000mm (length) × 700mm (width) × 800mm (height); Power Supply: AC 380V±10% 50Hz; Built-in test items include insulation resistance test, transformer turns ratio test, DC winding resistance test, no-load loss and no-load current test, short-circuit loss test; Data storage supports 30000+ test reports with full query and export functions; Communication interfaces: USB 2.0, RS485, Ethernet; Protection Grade: IP30; Shell Material: Thickened cold-rolled steel plate; Adjustable Test Fixture: Yes, compatible with transformers of different sizes and specifications.

Product application:

It is mainly applicable to power maintenance centers, third-party power testing institutions, large transformer maintenance workshops, and power system maintenance teams. Typical usage scenarios include testing transformers of different capacities in power grids, comprehensive performance testing of newly produced transformers in transformer manufacturing plants, and maintenance performance testing of various types of transformers. It can meet the testing requirements of various types of transformers, greatly reducing the procurement cost of testing equipment for power enterprises.
