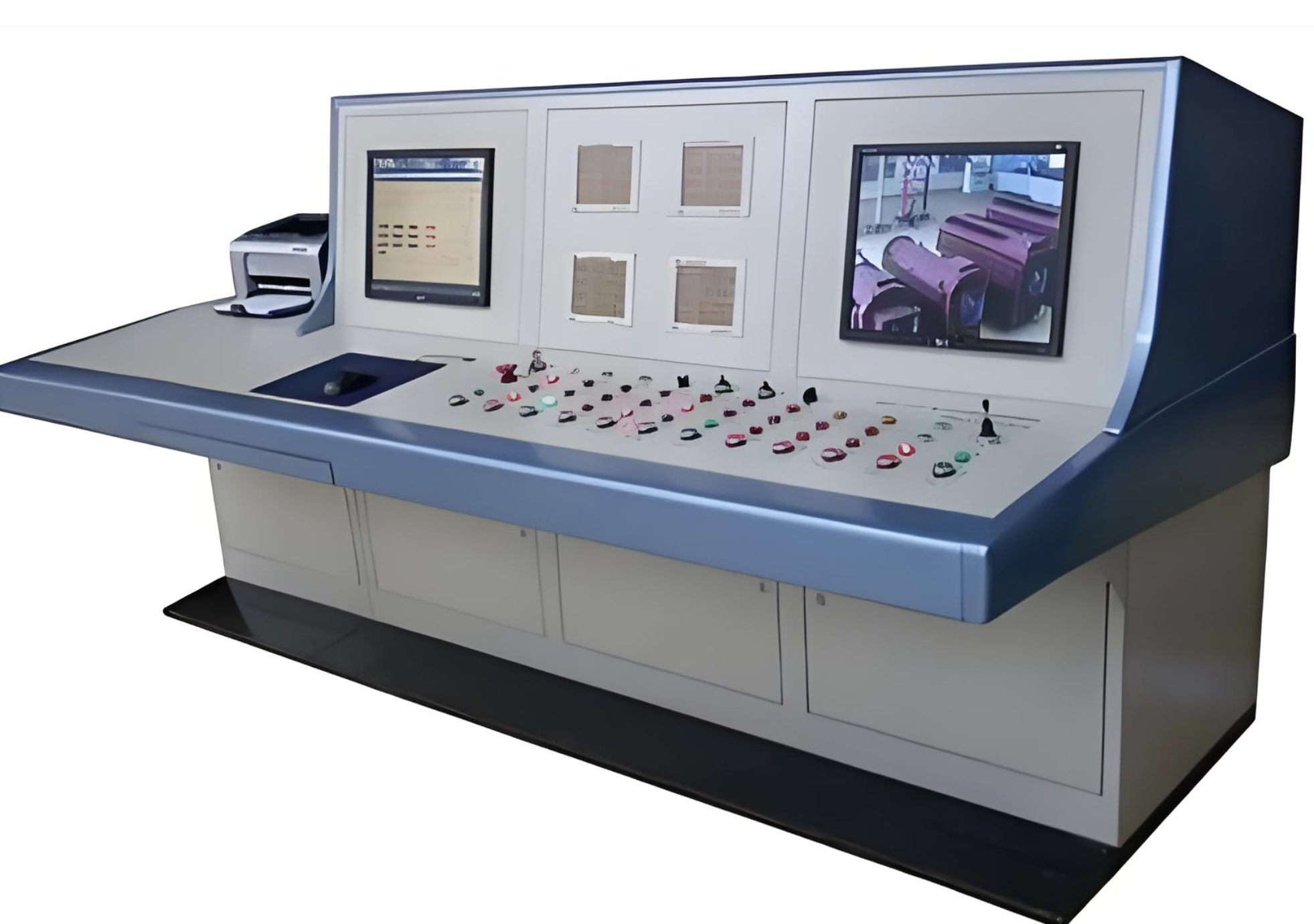

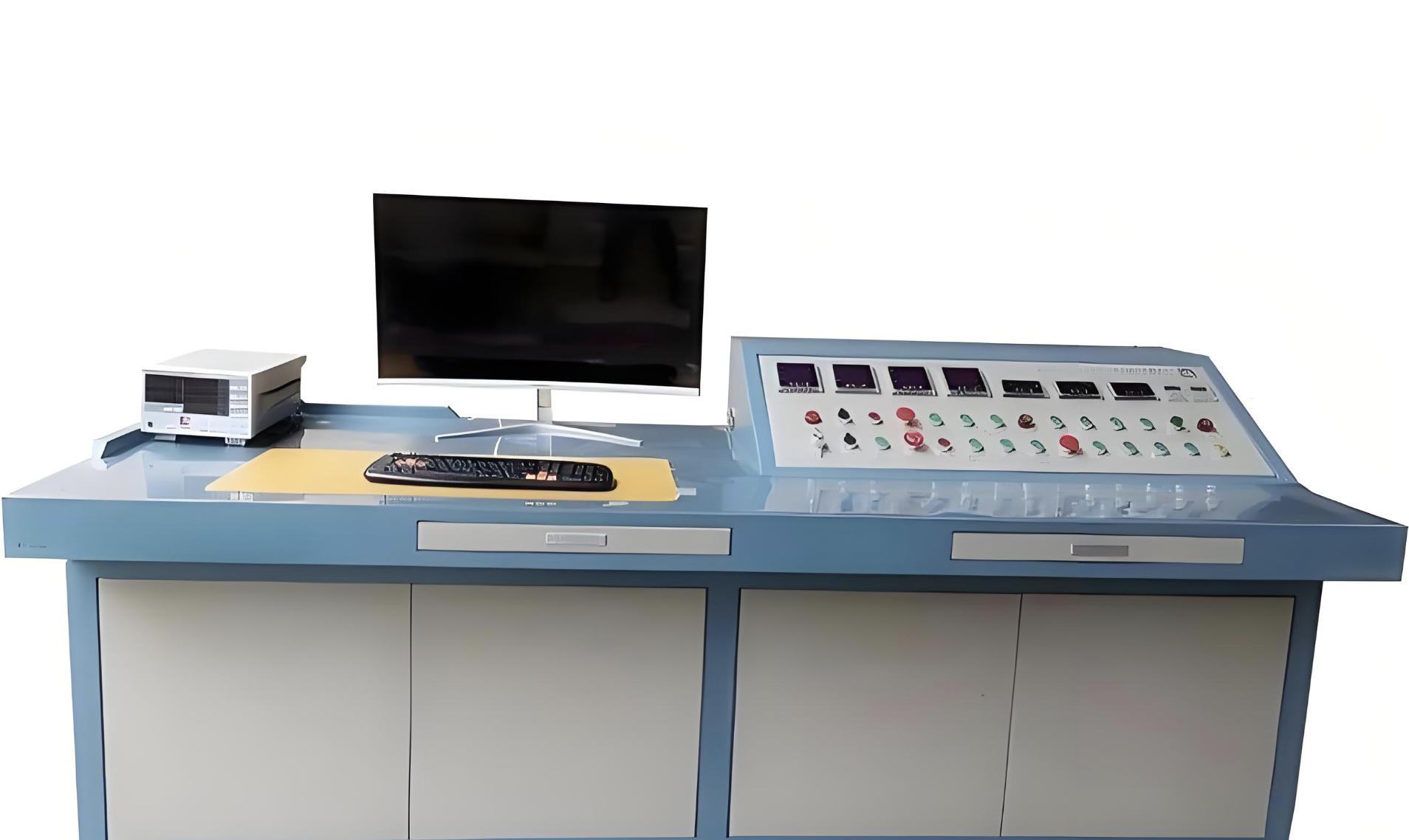

The biggest feature of this test bench is its high integration and accurate testing performance. Equipped with a 10-inch industrial touch screen, it provides a bilingual operation interface suitable for different user groups. It uses high-precision current and voltage sensors, with a test accuracy of 0.5 level, ensuring the reliability of test data. It has strong anti-interference ability, suitable for complex industrial electromagnetic environment. The fully automatic test function can complete all test items according to the preset program, reducing manual operation errors by more than 90%. It also supports cloud data synchronization, allowing managers to remotely view test data and reports anytime and anywhere, effectively solving the pain points of scattered test data and difficult management in industrial testing scenarios.
The overall dimensions are 1200*800*900mm, with a net weight of 220kg. The test voltage range is 0-35kV, test current range is 0-1000A, suitable for transformers with capacity of 500-5000kVA. The power supply is AC380V 3-phase 50Hz, with a power consumption of less than 5kW. It is equipped with a 10-inch industrial LCD touch screen, supports storage of over 5000 test reports, and is equipped with Ethernet, USB and Bluetooth interfaces for data transmission and remote control. The certification meets CE and UL standards, with an operating temperature range of -5℃ to 45℃, and the shell is made of cold-rolled steel plate with spray plastic treatment to improve corrosion resistance.
This test bench is mainly applicable to power equipment manufacturing plants, large substations, heavy industry power distribution systems, wind farm booster stations and power supply companies. It can meet the regular safety performance testing and type testing needs of medium voltage transformers, helping enterprises to quickly obtain test reports that meet national and international standards, ensuring the safe and stable operation of power distribution equipment. It is also suitable for batch testing of transformers in the production process, improving the production quality control efficiency of transformer manufacturers.
