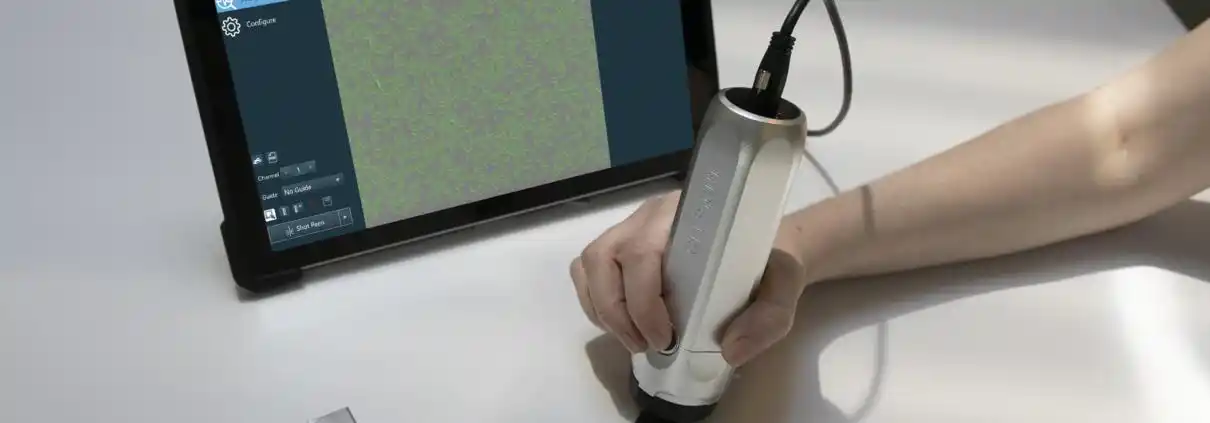

Adopts diamond probe and high-precision displacement sensor to achieve 0.1μm measurement accuracy, which is 5 times higher than traditional handheld testing tools; built-in 7.4V 2000mAh lithium battery supports 8 hours of continuous operation, meeting the needs of full-day outdoor detection; supports dual data transmission of Bluetooth and USB-C, which can synchronize detection data to the computer in real time for generating analysis reports; with IP65 protection rating, it can adapt to complex on-site environments such as workshop oil stains and a small amount of water mist; the supporting professional analysis software can automatically generate detection reports of contour degree, roughness, section parameters and other data, and supports exporting CAD format files to help engineers quickly complete quality traceability and process optimization.
The overall size is 280mm×120mm×85mm, and the host weight is 1.2kg, which is convenient for single-person handheld operation; the maximum X-axis measurement stroke is 500mm, and the maximum Z-axis measurement stroke is 200mm; the scan step can be stepless adjusted from 0.1μm to 10mm to meet the detection needs of different precision; the probe diameter can be selected in three specifications of 1μm, 2μm and 5μm to meet the surface detection requirements of different measured workpieces; in terms of power supply and endurance, it can be fully charged in 2 hours of fast charging, and the continuous working time under full power can reach 8 hours; the supporting analysis software compatible with Windows and macOS systems can be compatible with mainstream CAD drawing tools for data comparison.
It is mainly used for on-site workpiece quality inspection in mechanical processing workshops, such as mold cavity contour detection and step detection of precision shaft parts; contour accuracy detection of titanium alloy thin-walled parts in the aerospace field; surface contour detection of stamping parts in auto parts manufacturing; size calibration of equipment spare parts for outdoor maintenance and other scenarios. It can replace traditional desktop profilometers to complete mobile detection tasks, greatly shortening the preparation time and process of on-site detection.
