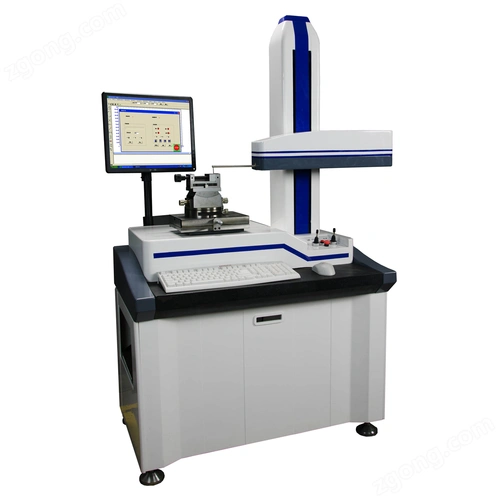

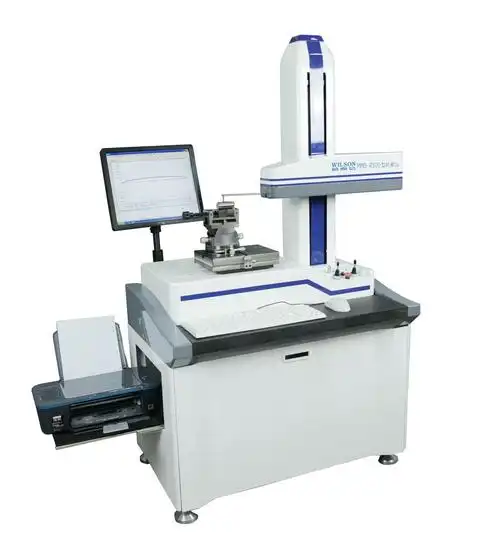

The core competitive advantages of this product include ultra-high measurement accuracy of ±0.05μm, which meets the detection requirements of ultra-precision processing parts. The precision linear motor driving system ensures stable and smooth movement of the stylus, reducing measurement errors caused by mechanical vibration. It provides two optional stylus tip radii of 2μm and 5μm to adapt to different workpiece surface detection needs. The professional detection software supports importing various CAD formats, automatic dimension measurement, GD&T tolerance analysis and report generation, which can greatly improve the efficiency of quality inspection. The compact desktop design saves laboratory space, and the sealed metal casing ensures stable performance in a constant temperature laboratory environment.
The overall dimensions of the host are 600*450*350mm, with a net weight of 25kg. The X/Y/Z-axis measuring strokes are 200mm, 100mm and 50mm respectively, with a measurement resolution of 0.01μm. It is equipped with USB3.0 and Ethernet interfaces for high-speed data transmission and remote control. The operating environment requires a constant temperature of 18-25℃ and humidity of 30%-70% non-condensing. It uses AC 110V/220V auto-switching power supply, and supports manual and automatic detection modes. The stylus replacement tool is included in the standard configuration to facilitate the replacement of different specifications of stylus.
This high-precision contact profilometer is mainly used in the quality inspection of precision manufacturing industries such as semiconductor manufacturing, precision mold processing, optical component production, and medical device parts. It can detect the contour accuracy of precision bearings, semiconductor wafers, optical lenses, medical surgical instruments and other high-precision workpieces. It is also suitable for metrology verification in national measurement institutes and scientific research institutions, as well as product development and prototype detection in enterprise R&D departments, providing accurate dimensional data support for product optimization and quality control.
