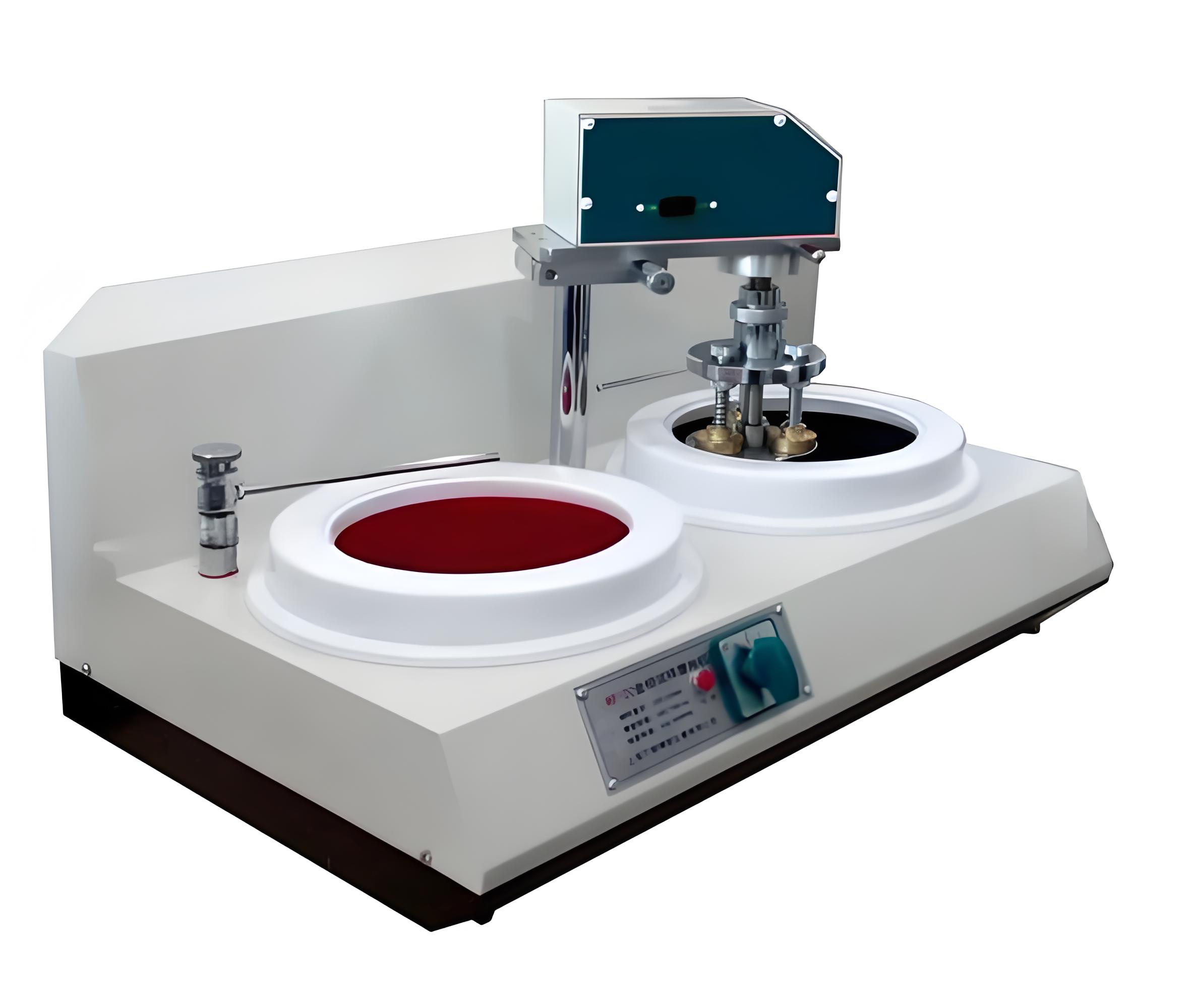

It adopts a dual independent motor drive design, and the two polishing discs can adjust the speed separately to adapt to the polishing needs of different processes. The foot-operated operation auxiliary device liberates the operator's hands and improves the comfort of long-time operation. The dual independent water cooling systems correspond to the rough grinding and fine polishing stations respectively, avoiding temperature cross-influence between different processes. It is equipped with an automatic consumable pressing mechanism, reducing manual adjustment errors, solving the pain points of low efficiency of single-disc operation and poor consistency of batch samples.
Each polishing disc has a diameter of 254 Millimeters, the single motor rated power is 1.1 Kilowatts, the total motor power is 2.2 Kilowatts, the power input is 0.22 Kilovolts 60Hz, the speed adjustment range is 100-2000 r/min, the total weight is 120 Kilograms, the overall dimensions are 1200×800×1100 Millimeters, the maximum applicable sample diameter is ≤150 Millimeters, it is equipped with dual circulating cooling systems, supports pedal + manual mixed operation, is compatible with various grinding and polishing consumables with a diameter of 250-260mm, and is equipped with a detachable dust collection device to reduce laboratory cleaning costs.
It is suitable for auto parts manufacturing enterprises, aerospace material testing centers and large university material research laboratories. It can batch prepare metallographic samples of high-strength materials such as cast iron, titanium alloy and superalloy, meeting the high-frequency sample preparation needs of batch incoming material testing, failure analysis and process optimization. It is especially suitable for medium-sized testing teams that need to balance efficiency and sample quality, improving the overall efficiency of metallographic sample preparation work.
