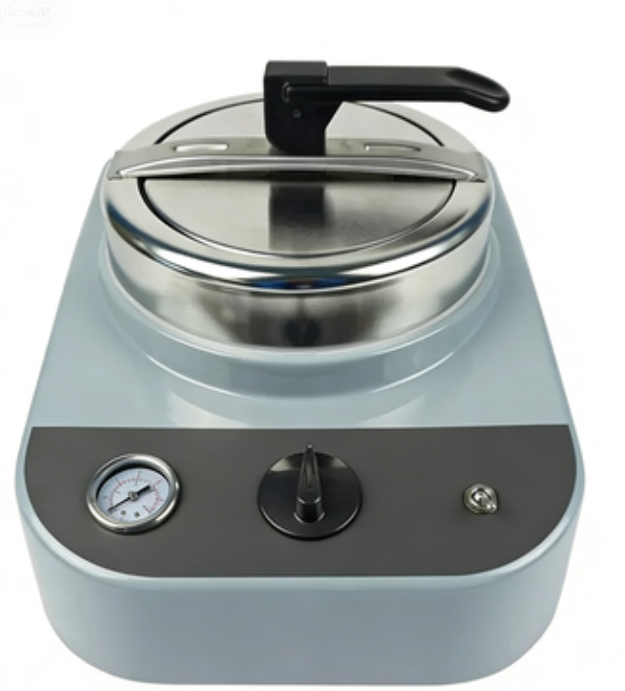

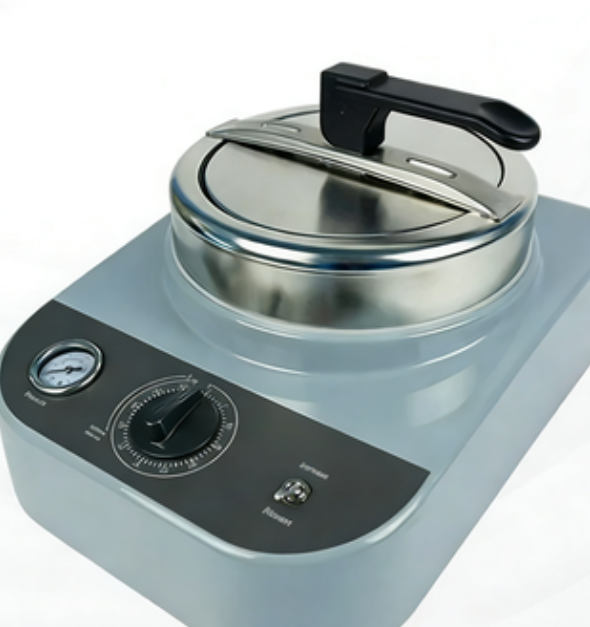

This manual metallographic mounting press boasts precise pressure adjustment and visual temperature display, allowing operators to control the entire mounting process accurately. The air-cooled rapid cooling system shortens the sample preparation cycle by 30% compared to traditional natural cooling models. The cast iron body ensures stable operation and long service life, reducing equipment maintenance frequency. It is equipped with an overload protection device to prevent damage to the equipment caused by misoperation or excessive pressure. The compact and reasonable structural design saves laboratory space, and the modular mold replacement mechanism allows users to quickly switch between different specifications of mounting cavities, meeting the sample preparation needs of different sizes.
Voltage: 110/220V 50/60Hz, Heating Temperature Range: Room Temperature to 200℃ with digital display, Pressure Adjustment Range: 0-20MPa with analog dial control, Mounting Chamber Specifications: Optional Φ30/Φ40/Φ50mm standard molds, Body Material: High-strength cast iron, Net Weight: 35kg, Gross Weight: 42kg, Packaging Dimensions: 70*50*80cm, Safety Configurations: Overload protection and overheat protection, Applicable Mounting Materials: Thermosetting resin, bakelite powder, epoxy resin, Operation Method: Manual adjustment of pressure and temperature parameters
This equipment is widely applicable to university undergraduate metallographic experiment courses, small metal processing workshops, automotive component small-batch testing, and basic material analysis. It can be used to prepare metallographic samples for metals, alloys, ceramic materials, and plastic products, providing reliable sample support for microscopic observation, hardness testing, and material composition analysis. It is particularly suitable for scenarios that require low-cost, easy-to-operate sample preparation equipment without high-precision requirements for batch consistency.
