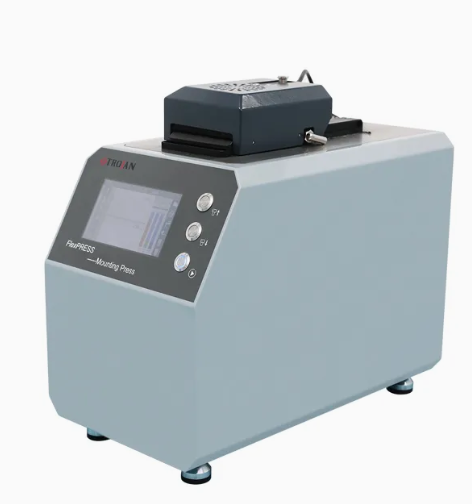

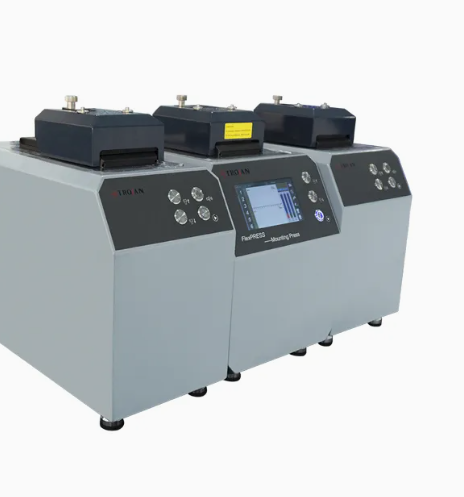

This vacuum mounting press integrates vacuuming, heating, pressurization and cooling functions, realizing fully automated vacuum sample preparation. The vacuum degree can be adjusted steplessly, adapting to the sample preparation needs of different materials. The built-in high-precision temperature and pressure control system ensures stable process parameters. The stainless steel body has good corrosion resistance, suitable for long-term use in harsh laboratory environments. It supports remote monitoring and data upload, meeting the data traceability requirements of military and high-end testing institutions. It is equipped with an observation window, allowing operators to monitor the sample preparation process in real time.
Voltage: 380V 50Hz (Optional 110/220V), Heating Temperature Range: Room Temperature to 300℃ with digital closed-loop control, Pressure Range: 0-25MPa with closed-loop adjustment, Vacuum Degree Range: -0.01~-0.098MPa adjustable, Mounting Chamber Specifications: Φ30/Φ40/Φ50/Φ80mm optional vacuum molds, Body Material: 304 stainless steel inner cavity + cast steel outer frame, Net Weight: 120kg, Gross Weight: 145kg, Packaging Dimensions: 120*80*110cm, Safety Configurations: Vacuum leakage alarm, overload protection, overheat protection, Applicable Mounting Materials: Epoxy resin, low-volatility thermosetting resin, special vacuum mounting glue
This equipment is widely used in military material detection, rare earth material R&D, aerospace light alloy analysis, semiconductor packaging defect detection, and high-precision material microstructure analysis. It can prepare high-quality metallographic samples for easily oxidized materials such as magnesium alloys, aluminum alloys, rare earth metals, and electronic packaging materials, providing accurate data support for scientific research and industrial quality control. It meets the technical requirements of national military material testing and is an essential equipment for high-end material R&D institutions.
