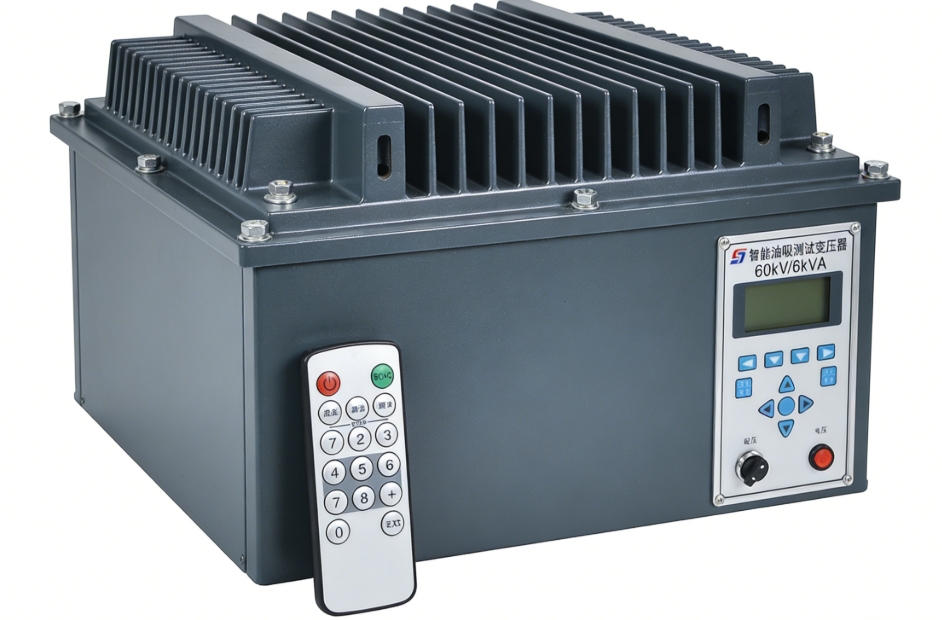

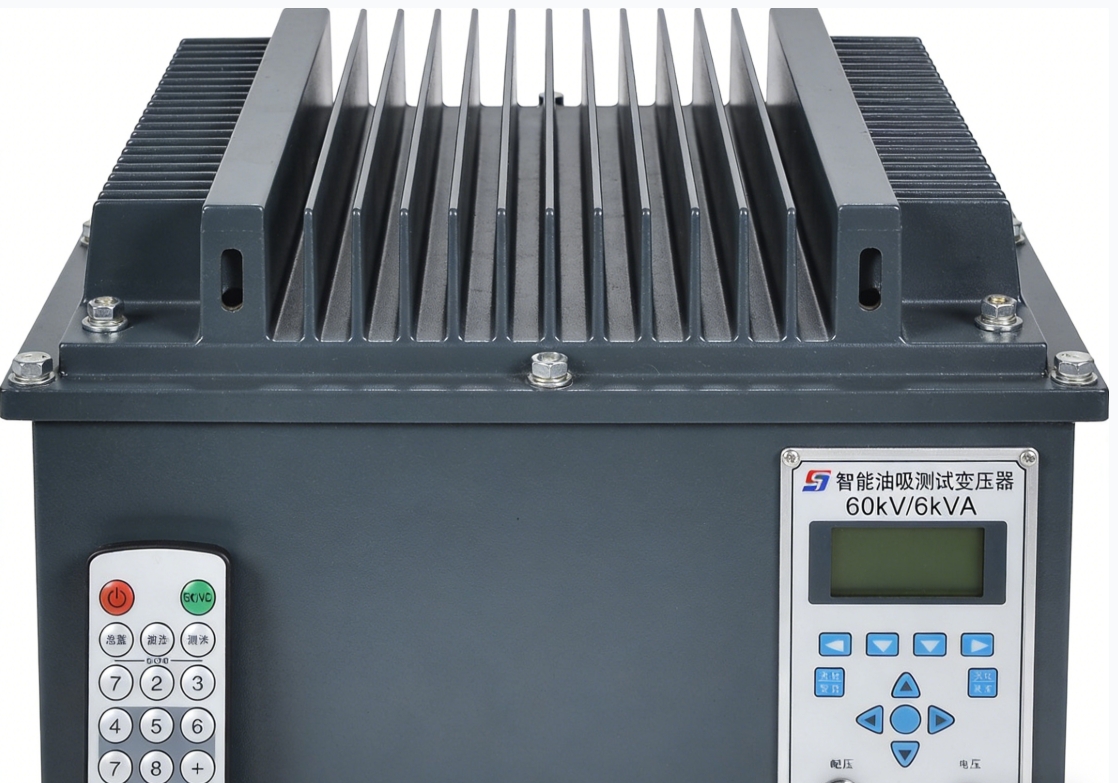

The core advantage of this product lies in its intelligent and automated design, which can realize remote control within 100 meters, reducing the risk of operators being exposed to high voltage. The built-in intelligent monitoring system can display real-time output voltage, current, oil temperature and winding temperature, and automatically save test data. It is equipped with a touch human-machine interaction interface, which can set test parameters and view test reports in real time. Compared with ordinary test transformers, it has a built-in voltage regulation function that can smoothly adjust the output voltage from 0 to 60kV, avoiding voltage surge during testing. It is equipped with a full-range protection system, including overvoltage, overcurrent, overheating and discharge protection, and can automatically cut off the power when abnormal conditions occur. It also supports remote data transmission, which can upload test data to the laboratory management system in real time.
This transformer has a rated output voltage of 60kV and a rated capacity of 6kVA, suitable for laboratory and automated testing scenarios. It adopts natural oil immersion cooling mode, which ensures stable heat dissipation during 6-hour continuous testing. The insulation class reaches Class F, allowing a maximum operating temperature of 155℃. The net weight is 120kg, and it can be moved by a standard trolley for indoor testing. The overall dimensions are 850mm × 550mm × 750mm, which can be placed in a standard laboratory test bench. The double-layer cylindrical winding structure reduces winding loss and improves test accuracy by 20% compared with single-layer windings. The protection grade of IP20 prevents small foreign objects from entering the interior, meeting the safety requirements of laboratory testing. The power input is compatible with standard 380V 50Hz single-phase power supplies, and the test accuracy reaches ±0.8% of full scale, meeting the requirements of high-precision laboratory testing. The built-in insulating oil volume is 10L, which can be replaced easily during routine maintenance.
This product is mainly applicable to electrical equipment research institutes, high-voltage electrical equipment testing laboratories, large electrical equipment manufacturing plants and third-party testing institutions. Typical application scenarios include precision dielectric strength testing of new high-voltage electrical components, laboratory type testing of small transformers and switchgear, and automated testing of insulating materials. It can also be used for teaching and research experiments in colleges and universities, helping students and researchers conduct high-voltage testing experiments safely and efficiently. The intelligent data management function can automatically generate standardized test reports, improving the efficiency of test data sorting and archiving.
