This product has three core competitiveness: first, the wide field of view and image stitching technology breaks the limitation of traditional measuring instruments on workpiece size, and can detect large-size workpieces such as automotive stamping parts and injection molded shells. Second, the 0.3-second ultra-high-speed measurement speed meets the needs of mass production line full inspection, which can greatly improve the production line inspection efficiency. Third, the 5-mode customizable light source system can adapt to various types of workpieces including reflective and transparent parts, ensuring clear image collection. In addition, it supports MES data docking, which can upload test data to the factory production management system in real time, realizing the integration of quality inspection and production management.

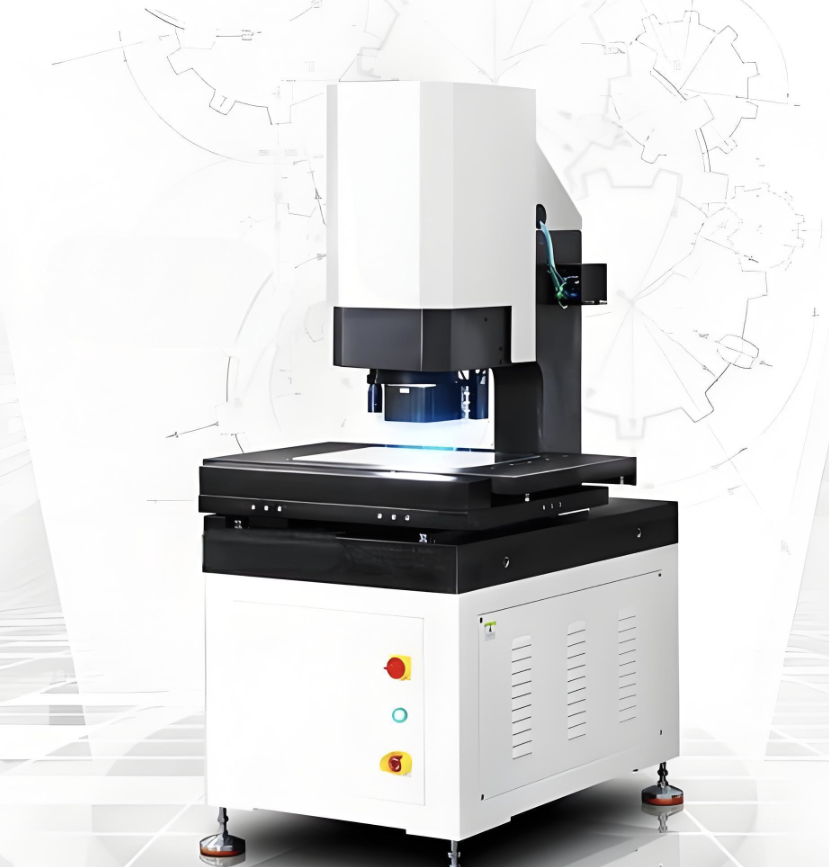

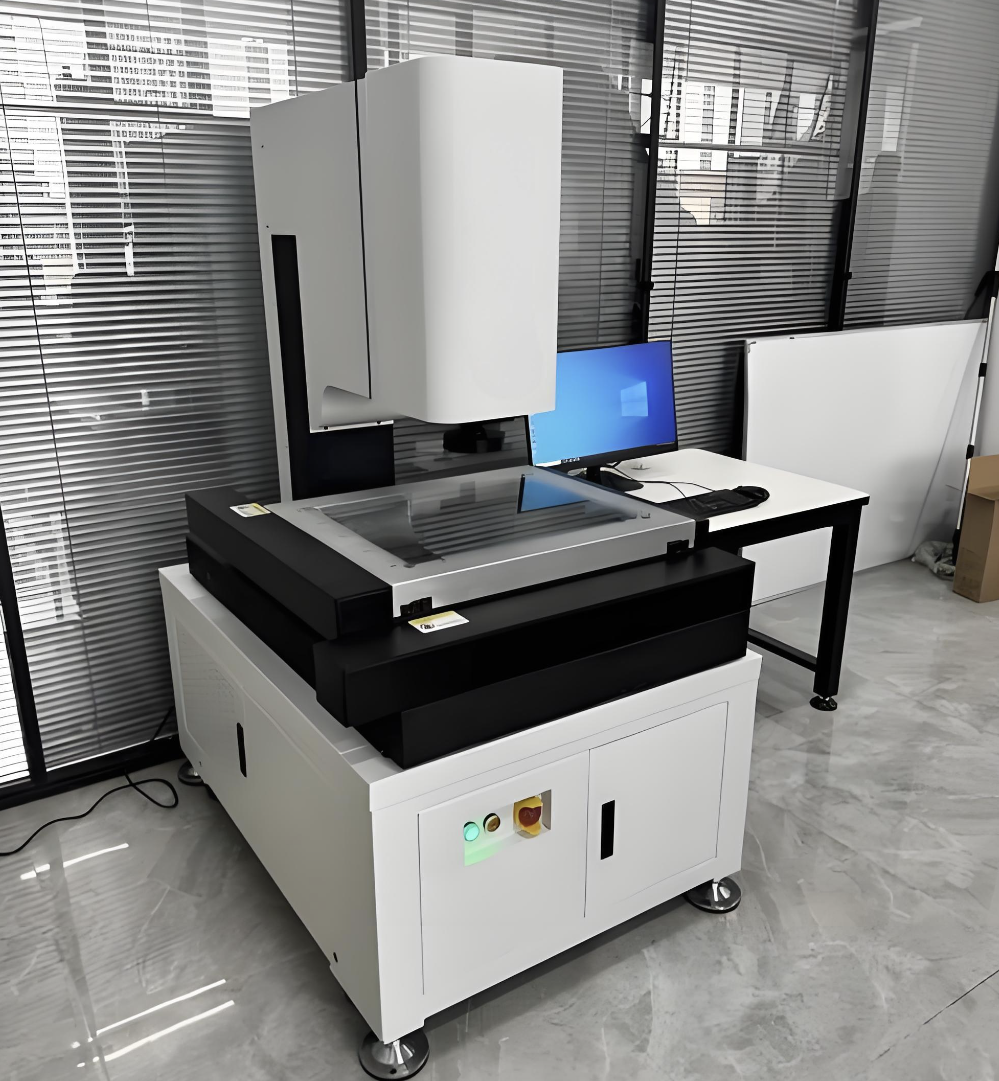

The overall dimensions are 1500mm (length) × 1200mm (width) × 1400mm (height), with a net weight of approximately 650kg. It is equipped with dual 15MP high-resolution CMOS cameras and a set of high-precision telecentric lenses, with a single field of view of 200×200mm, and supports image stitching for workpieces up to 400×400mm. The measurement accuracy is ±(2.5+L/200)μm, and the single-piece measurement speed is 0.3 seconds. The light source system supports 5 working modes, which can be switched freely according to the workpiece characteristics. The built-in software supports large-size CAD model comparison, image stitching processing, SPC statistical analysis, and can generate standard quality inspection reports. It is suitable for use in a constant temperature workshop environment with a temperature of 20±2℃ and humidity of 40%-60%.
This wide-field 2D flash measuring system is mainly applicable to the full inspection of large-size flat workpieces in the automotive, home appliance, mold and aerospace industries. In the automotive industry, it can detect the size of automotive stamping parts, injection molded instrument panels and sensor shells. In the home appliance industry, it can test the size of large plastic shells of refrigerators and washing machines. It is also suitable for the fully automatic inspection link of the production line, realizing 100% full inspection of mass-produced large parts, and helping enterprises improve product quality and production efficiency while reducing labor costs.
