Home > video-measuring-system
40 Search results about

video-measuring-system
Product Features
40 Products
Product List Supplier List

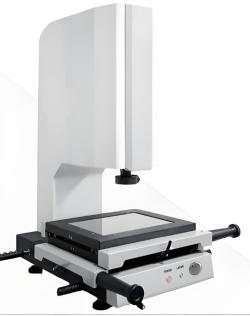

High-precision Semiconductor Image Measuring Instrument

High-precision Semiconductor Image Measuring Instrument

$58,000
Measurement Range: 200mm × 150mm × 100mm
Optical Magnification: 5x-20x
CCD Resolution: 24MP High-resolution Color CMOS
Repeat Positioning Accuracy: ±0.0005mm
Cleanroom Compliance: ISO 14644-1 Class 8
Integration: Laser Displacement Sensor + Static Elimination Bar
Wafer Compatibility: Support 6/8/12 Inch Wafers
Control System: Industrial Grade Touch PC
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW

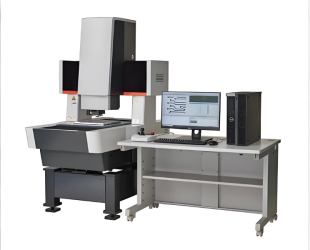

Multi-sensor Fusion Image Measuring Instrument

Multi-sensor Fusion Image Measuring Instrument

$45,000
Measurement Range: 400mm × 300mm × 200mm
Optical Magnification: 1x-12x
CCD Resolution: 8MP Color CMOS
Laser Sensor Range: 0.1-100mm
Touch Probe Integration: 3-axis Contact Probe
Repeat Positioning Accuracy: ±0.001mm
Lighting System: Multi-zone Adjustable LED
Temperature Compensation: Real-time Environmental Correction
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW
Manual Bench-top Image Measuring Instrument

Manual Bench-top Image Measuring Instrument

$8,500
Measurement Accuracy: ±(2+L/200)μm
Lens Type: 0.7-4.5X Continuous Zoom Lens
Operation Mode: Manual Joystick Control
Measurement Software: VMS Basic V2.0
Workbench Size: 400*300mm
Maximum Measuring Height: 200mm
Lighting System: LED Ring Light + Coaxial Light
Workload Capacity: 10kg
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW

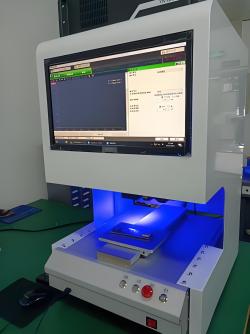

Fully Automatic 2D Image Measuring Instrument

Fully Automatic 2D Image Measuring Instrument

$22,000
Measurement Accuracy: ±(1.5+L/200)μm
Lens Type: 0.7-5X Motorized Zoom Lens
Operation Mode: Fully Automatic CNC Control
Measurement Software: VMS Pro V3.5
Workbench Size: 500*400mm
Maximum Measuring Height: 250mm
Lighting System: LED Ring Light + Coaxial Light + Bottom Backlight
Workload Capacity: 20kg
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW
Basic Manual Image Measuring Instrument

Basic Manual Image Measuring Instrument

$8,500
Measurement Accuracy: ±(2+L/200)μm
Travel Range: X=300mm, Y=200mm, Z=150mm
Lens Type: 0.7-4.5X Zoom Objective
Magnification: 14-112X
Software: QMS3D Basic Edition
Lighting System: LED ring light + bottom coaxial light
Body Material: Cast iron base with aluminum alloy frame
Operation Mode: Manual
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW
Portable Handheld Image Measuring Instrument

Portable Handheld Image Measuring Instrument

$3,200
Measurement Accuracy: ±(3+L/150)μm
Travel Range: X=150mm, Y=100mm, Z=50mm
Lens Type: 2X-10X Zoom Objective
Magnification: 20-100X
Software: QMS3D Mobile Edition
Lighting System: Built-in LED fill light + adjustable background light
Body Material: Aluminum alloy housing
Operation Mode: Handheld / PC connected
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW
PCB Special Online Image Measuring Instrument

PCB Special Online Image Measuring Instrument

$9,999
Measuring Travel: 600x500x100mm
Optical Magnification: 15x-150x
Measurement Accuracy: ±(2+L/75)μm
Workbench Material: Anti-static Aluminum Alloy
Control Mode: Fully Automatic PLC Control
Illumination System: Coaxial Bottom Light + Side Light
Software: QMS3D PCB Special Version
Data Interface: Ethernet + Industrial Fieldbus
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW
Large-stroke Optical Image Measuring Instrument

Large-stroke Optical Image Measuring Instrument

$129,999
Measuring Travel: 1500x1000x500mm
Optical Magnification: 10x-100x
Measurement Accuracy: ±(3+L/50)μm
Workbench Material: Large-format Granite
Control Mode: CNC Automatic Control
Illumination System: Multi-point LED Light Array + Bottom Light
Software: QMS3D Industrial Pro Version
Data Interface: Ethernet + USB 3.0
Dexun Intelligent Technology (Zhejiang) Co., Ltd
Dexun Intelligent Technology (Zhejiang) Co., Ltd Shaoxing, Zhejiang, China
CONTACT NOW
CONTACT NOW

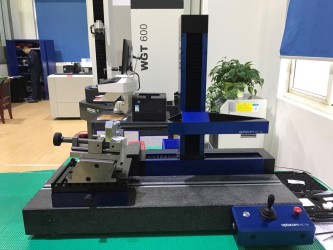

Online In-line Roughness Profiler for Manufacturing Lines

Online In-line Roughness Profiler for Manufacturing Lines

$12,599
measurement_type: Non-contact optical measurement
measurement_range: 0.008μm~80μm
vertical_resolution: 0.005μm
measurement_accuracy: ±0.8% of reading + 0.01μm
sampling_speed: 100mm/s
interface_types: Industrial Ethernet, PROFINET, Modbus TCP
power_supply: AC220V 50/60Hz
housing_material: 304 stainless steel anti-corrosion shell
Guangzhou Yixun Technology Co., Ltd
Guangzhou Yixun Technology Co., Ltd Guangzhou, Guangdong, China
CONTACT NOW
CONTACT NOW

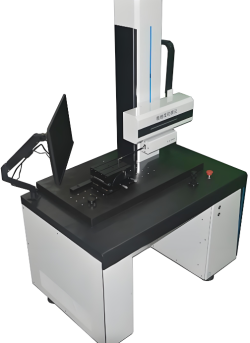

Multi-functional 3D Roughness Contour Profiler

Multi-functional 3D Roughness Contour Profiler

$15,999
measurement_type: 3D contact measurement
xyz_measurement_range: X:0~100mm, Y:0~100mm, Z:0~100μm
vertical_resolution: 0.5nm
measurement_accuracy: ±0.3% of reading + 0.005μm
sampling_speed: 5mm/s
interface_types: USB 3.0, Ethernet, WiFi 6
power_supply: AC100-240V 50/60Hz + built-in rechargeable battery
housing_material: High-strength aluminum alloy shell
Guangzhou Yixun Technology Co., Ltd
Guangzhou Yixun Technology Co., Ltd Guangzhou, Guangdong, China
CONTACT NOW
CONTACT NOW
