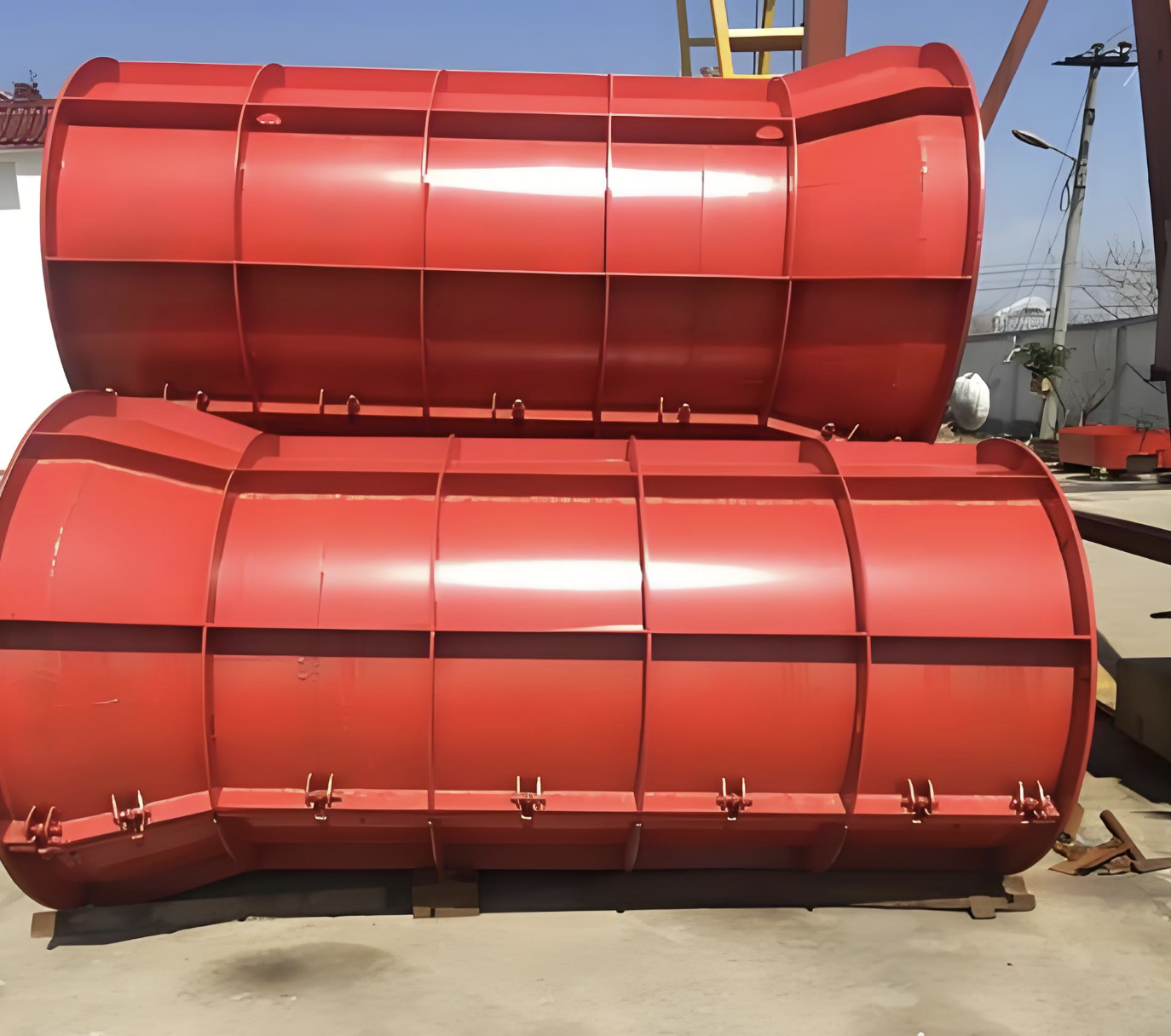

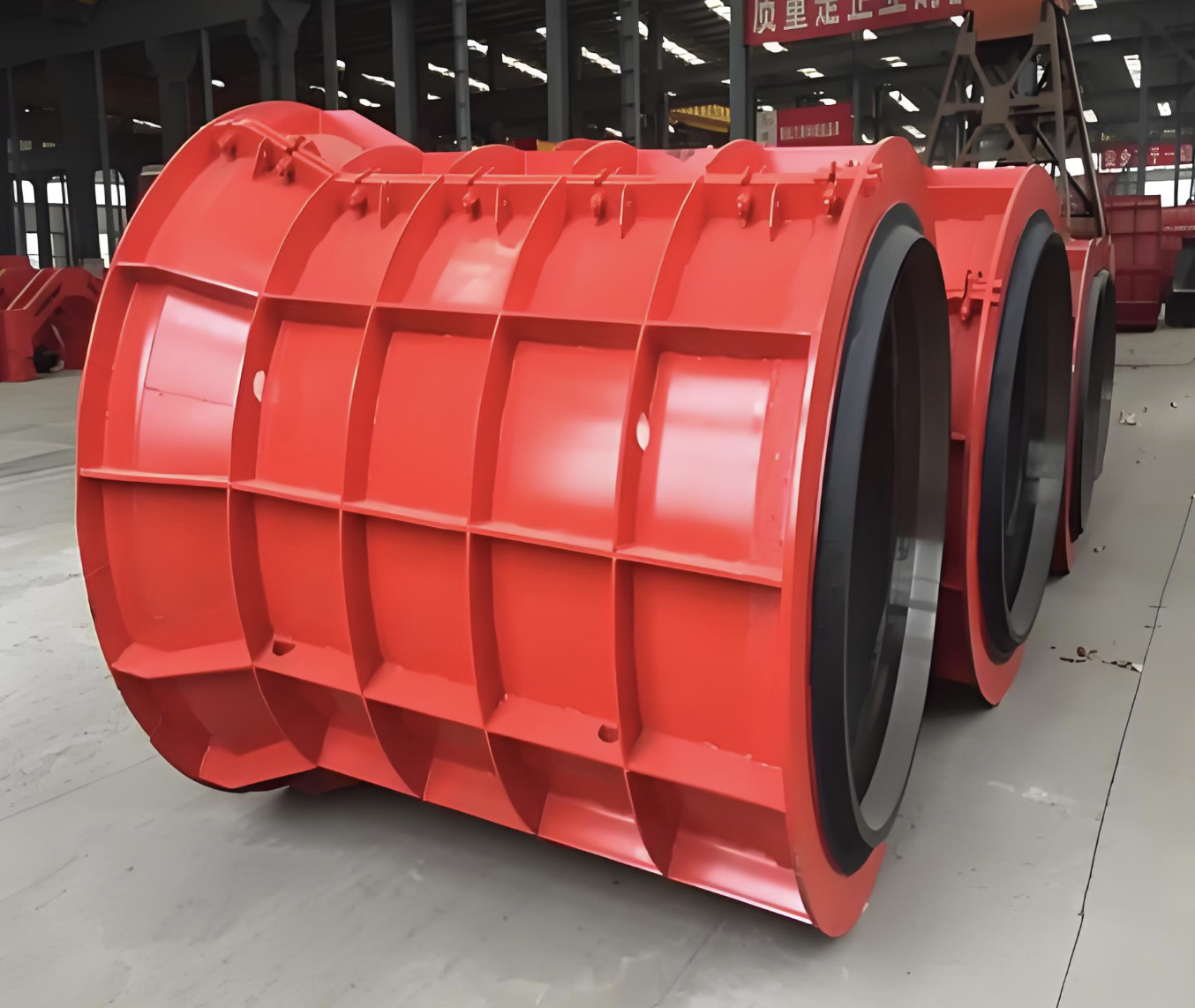

The core advantage is centrifugal forming technology, which uses the centrifugal force generated by high-speed rotation to evenly distribute the cement mixture on the inner wall of the mold, forming a pipe with high compactness, improving the anti-seepage performance of the pipe by 50% compared with traditional technology; it uses a frequency conversion speed regulation main motor, which can adjust the rotation speed according to the characteristics of the cement mixture, adapting to concrete with different slumps, with stronger adaptability; it is equipped with automatic loading and unloading system, reducing manual intervention and reducing labor intensity by 40%; the mold adopts split design, easy to disassemble and assemble, supporting quick replacement of molds of different calibers, adapting to the production of large-diameter pipes of multiple specifications, solving the problem of mold replacement in large-diameter pipe production.
The pipe diameter range is 1800mm to 3000mm, the standard length of a single pipe is 3m and 4m can be customized, the main drive motor power is 160KW, the centrifugal speed can be adjusted from 0 to 500r/min, the overall dimensions are 12600mm in length, 5800mm in width and 6200mm in height, the whole machine weight is 22.5 tons, the power supply is adapted to 10KV high-voltage industrial power, the noise control is within 85dB, the production efficiency is stable at 3-8 pieces per hour, the mold replacement cycle is ≤60 minutes, it adapts to flexible interface large-diameter cement pipe mold types, the concrete slump is adapted to 90-120mm, and it is equipped with an automatic weighing feeding system, with the batching accuracy of ±1%.
It is mainly used in cross-regional water conveyance projects, large-scale sewage treatment plant water conveyance pipes, urban centralized heat supply pipe prefabrication, large-scale water conservancy hub supporting water conveyance pipes, suitable for national large-scale prefabricated building material industrial parks, water conservancy engineering supporting production enterprises, can mass produce large-diameter high-strength cement pipes, meeting the pipe supply demand of national large-scale infrastructure projects, and the service life of the pipes produced is extended to more than 50 years compared with traditional pipe making equipment, greatly reducing later maintenance costs.
