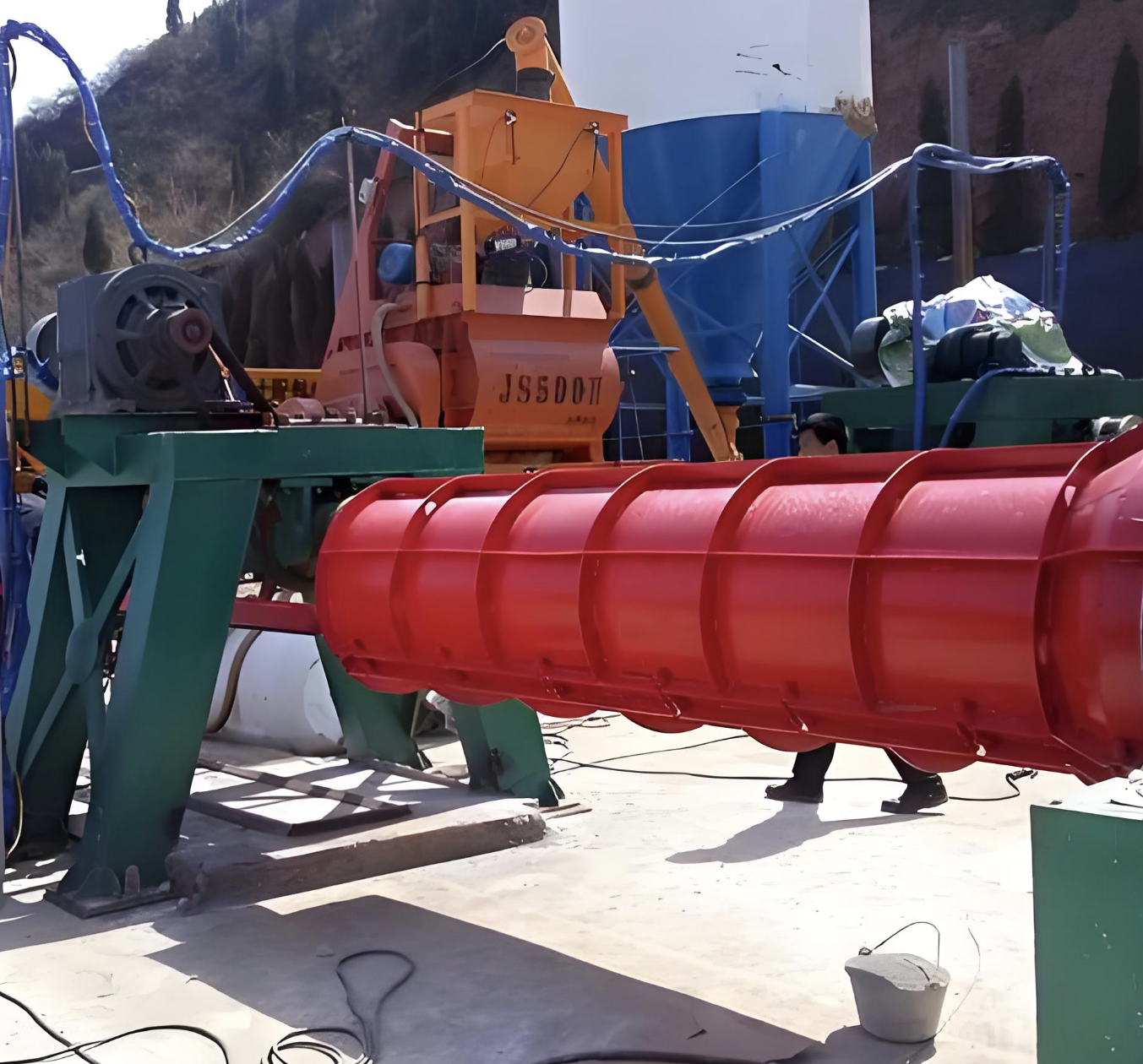

This machine adopts modular integrated design, which only takes 3 days to complete on-site installation and commissioning without complicated foundation construction. It is equipped with one-key vibration start and stop control, which simplifies the operation threshold and only requires 2 operators for daily production. The wear-resistant alloy mold used has a service life of more than 5000 molding times, which is 30% longer than ordinary molds. It can adapt to a variety of raw materials such as fly ash and furnace slag powder, reducing raw material costs by 15%. It is also equipped with a full set of safety protection devices such as emergency stop buttons and protective covers, complying with EU CE safety standards. Compared with traditional horizontal pipe making machines, it saves 20% of labor costs and effectively reduces on-site noise pollution.
The production pipe diameter range is 300mm to 800mm, and the standard pipe length is 1-4m. The molding pressure is 0.8-1.2MPa, and the vibration frequency is 48-52Hz. The total installed power is 15kW, and the overall dimensions are 8500mm in length, 4200mm in width and 3100mm in height, with a total machine weight of 5200kg. The molding cycle is 3-5 minutes per pipe, and the power supply voltage is 380V 50Hz. The compressive strength of the finished pipe reaches above C25, and the product qualification rate is over 98%. It is compatible with multiple types of mixing stations, and can be matched with automatic batching systems to realize standardized raw material proportioning.
It is suitable for township small drainage pipe network construction, farmland irrigation water conveyance pipeline, rural septic tank sewage pipe production, individual prefabricated component processing workshops, small rural infrastructure reconstruction projects, and small-batch customized cement pipe production scenarios. It can meet the pipe demand of rural small-scale water conservancy projects and residential community infrastructure construction.
