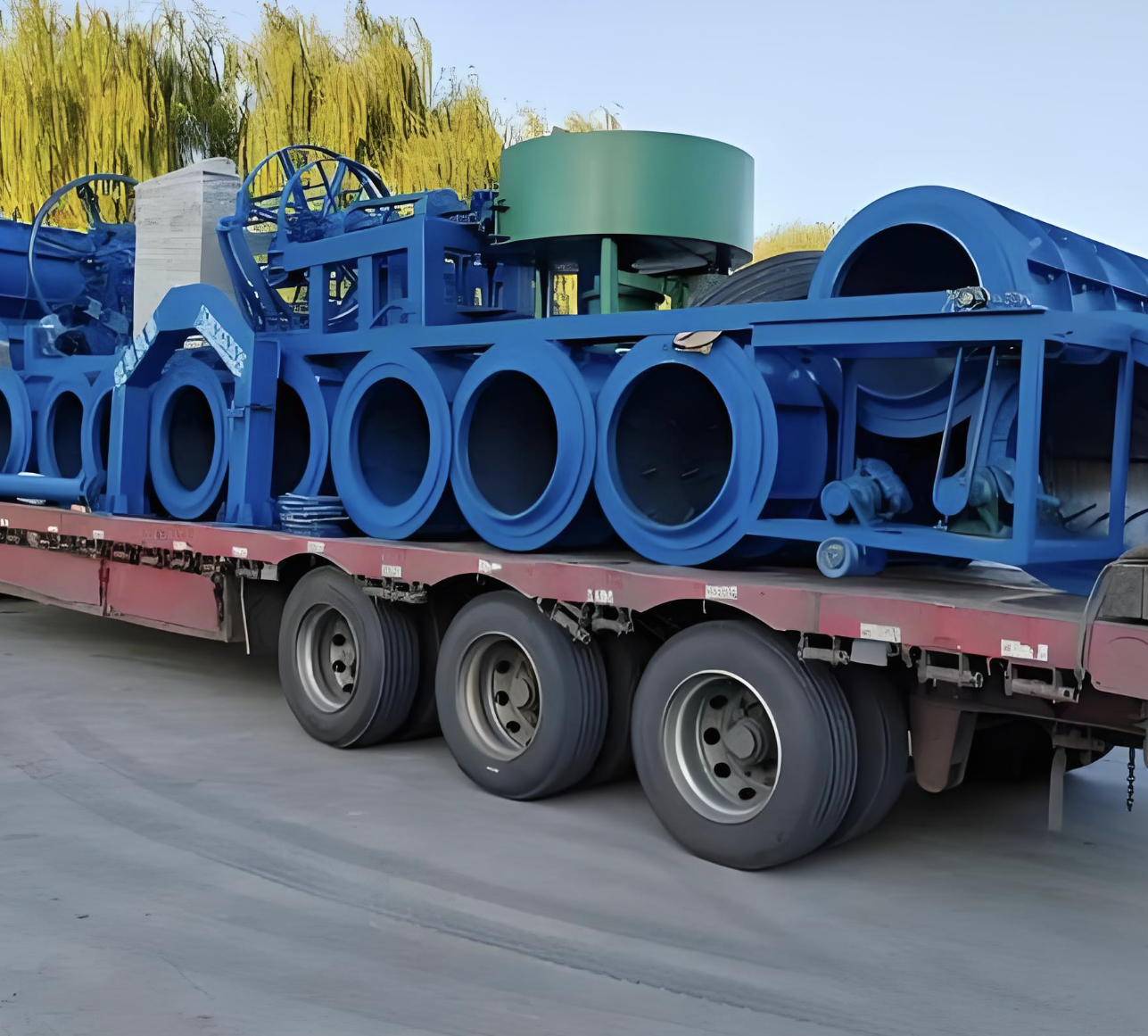

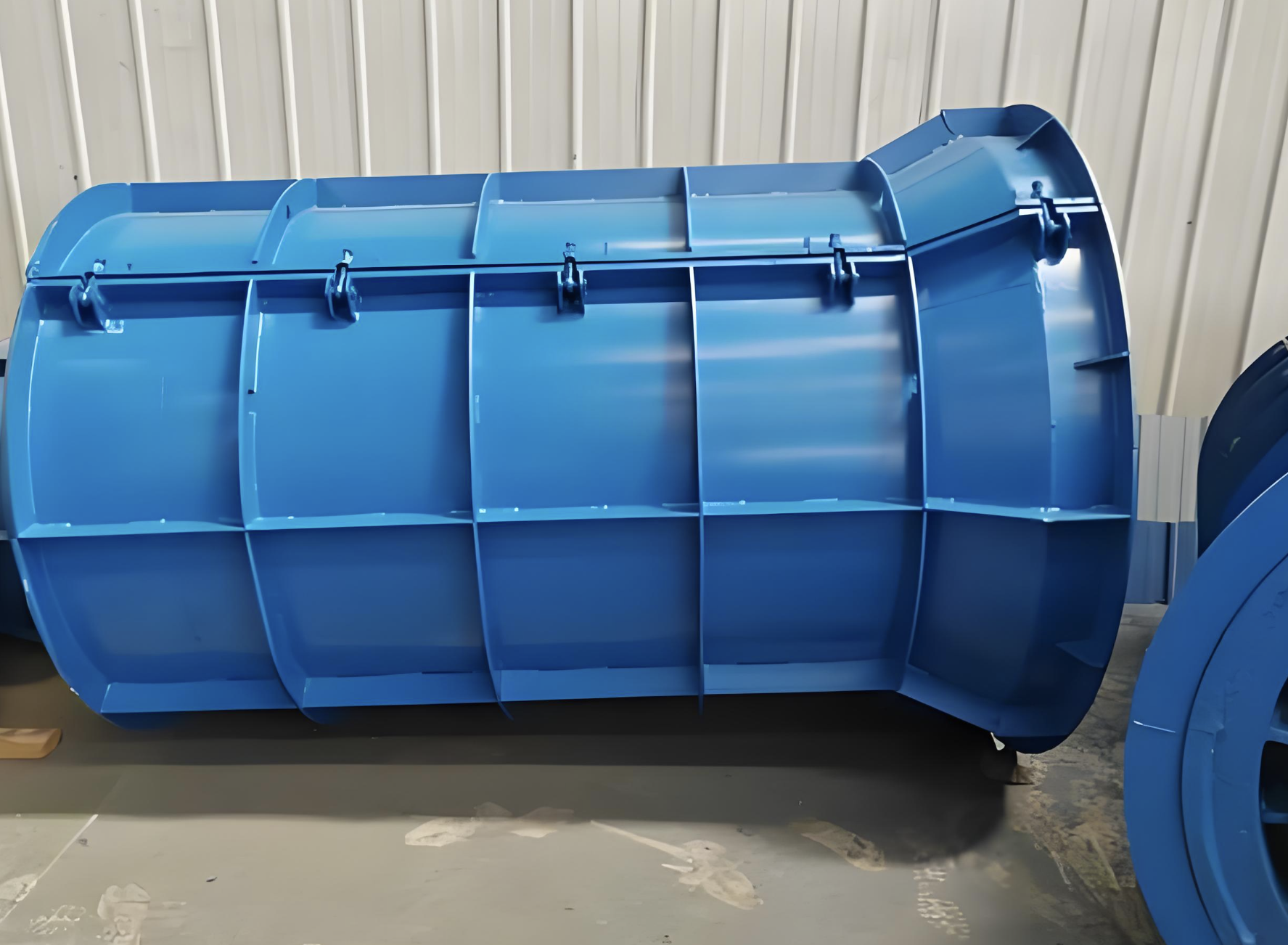

This machine adopts a foldable mold design, which can be folded to reduce the transportation volume, and the folded size is only 3200mm in length, which is convenient for pickup truck transportation. It does not require fixed foundation construction, and it can start production immediately after arriving at the site. The simple manual control system does not require professional operators, and it can adapt to the simple power supply in the wild. The high-strength wear-resistant frame is suitable for complex terrain in the field. Compared with fixed pipe making machines, it saves 70% of site construction costs.
The production pipe diameter range is 150mm to 500mm, and the standard pipe length is 1-2m. The vibration frequency is 45-50Hz, and the molding pressure is 0.6-1.0MPa. The total installed power is 11kW, and the traction speed is no more than 60km/h, which is compatible with pickup truck traction. The overall dimensions are 5100mm in length, 2800mm in width and 2200mm in height, with a total machine weight of 2600kg. The molding cycle is 3-4 minutes per pipe, and the power supply voltage supports 110V/220V 50/60Hz. The compressive strength of the finished pipe reaches above C20, and the product qualification rate is over 95%.
It is suitable for temporary drainage pipelines for post-disaster reconstruction, temporary water conveyance pipelines for field construction sites, small-scale infrastructure construction in remote mountainous areas, mobile prefabricated processing workshops, supporting material production for field engineering, and temporary emergency engineering pipe rapid production. It can meet the demand of temporary cement pipes for field emergency projects.
