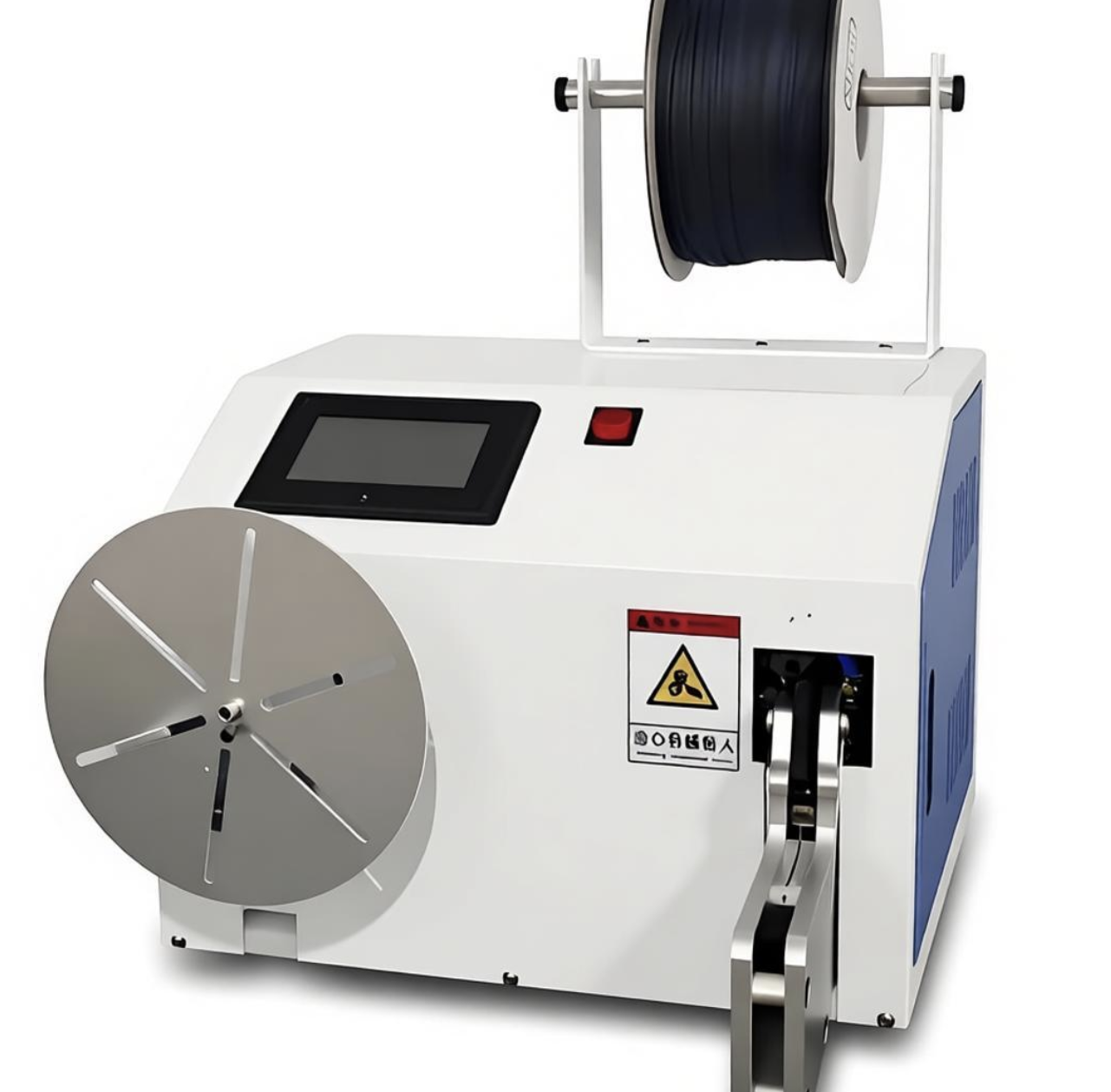

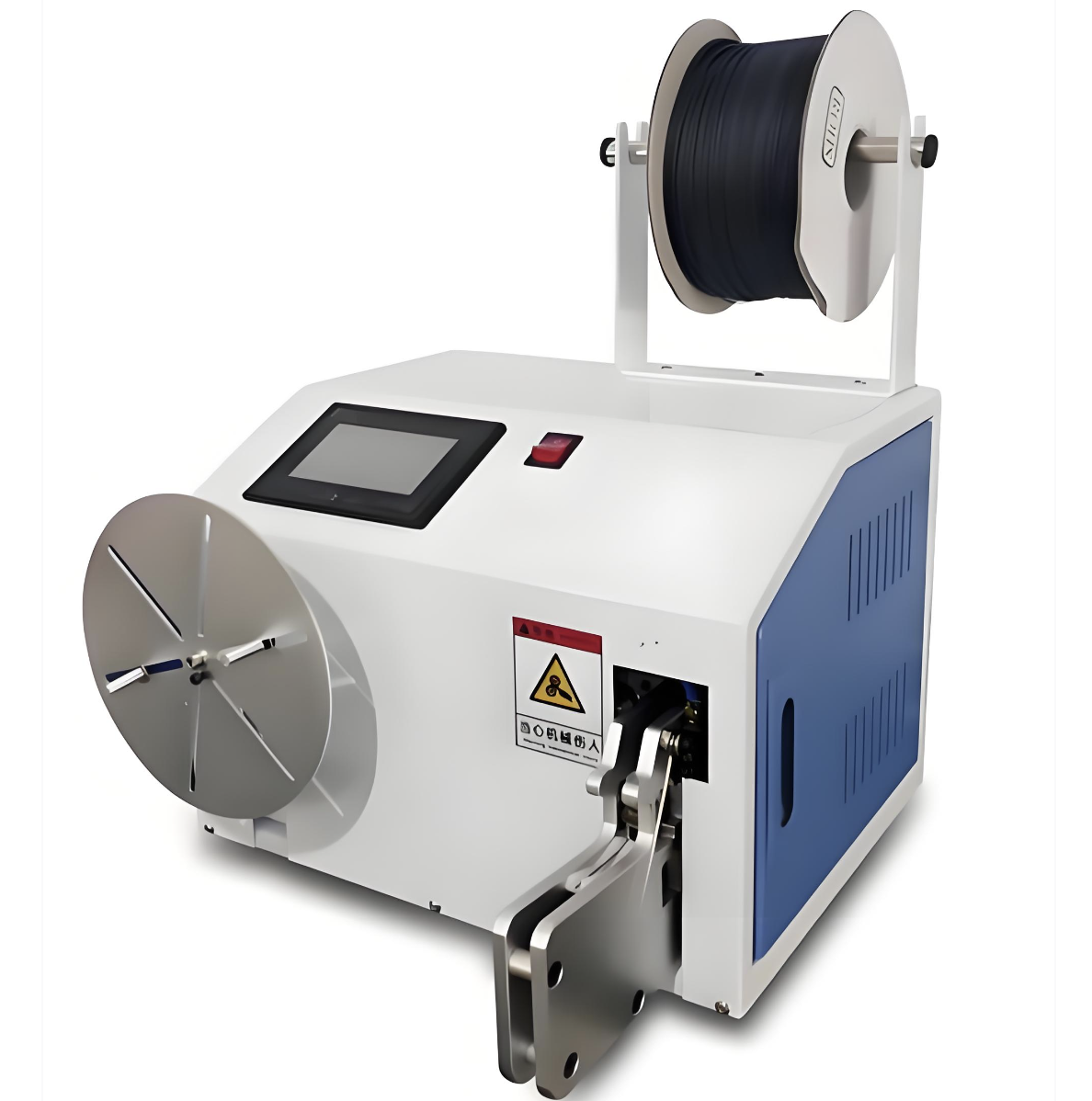

The lightweight cast iron frame ensures stable operation during winding, avoiding vibration and deviation. The manual dial tension adjustment can flexibly adapt to different specifications of wires, ensuring the tightness of the coil. The mechanical dial panel is simple and easy to operate, without the need for professional training, which reduces the threshold for use. It is equipped with a dedicated wire reel stand, which can fix the wire reel and avoid wire tangling during winding. It can quickly replace the winding mold, adapting to different sizes of coil production.
The overall dimensions are 450*350*280mm, with a net weight of 25kg. The spindle chuck diameter is 16mm, and the maximum winding outer diameter is 50mm. The power consumption is about 0.3kW per hour. It is equipped with a manual switch and a speed control knob, which can adjust the speed according to the winding needs. The equipment is equipped with a protective cover to avoid accidental injury during operation.
It is suitable for DIY electronic production, small batch production of speaker coils, micro transformers, teaching experiment coil winding and other scenarios. It is widely used by electronic enthusiasts, small electronic processing workshops and vocational and technical schools, providing a convenient and efficient winding tool for small-scale coil production.
