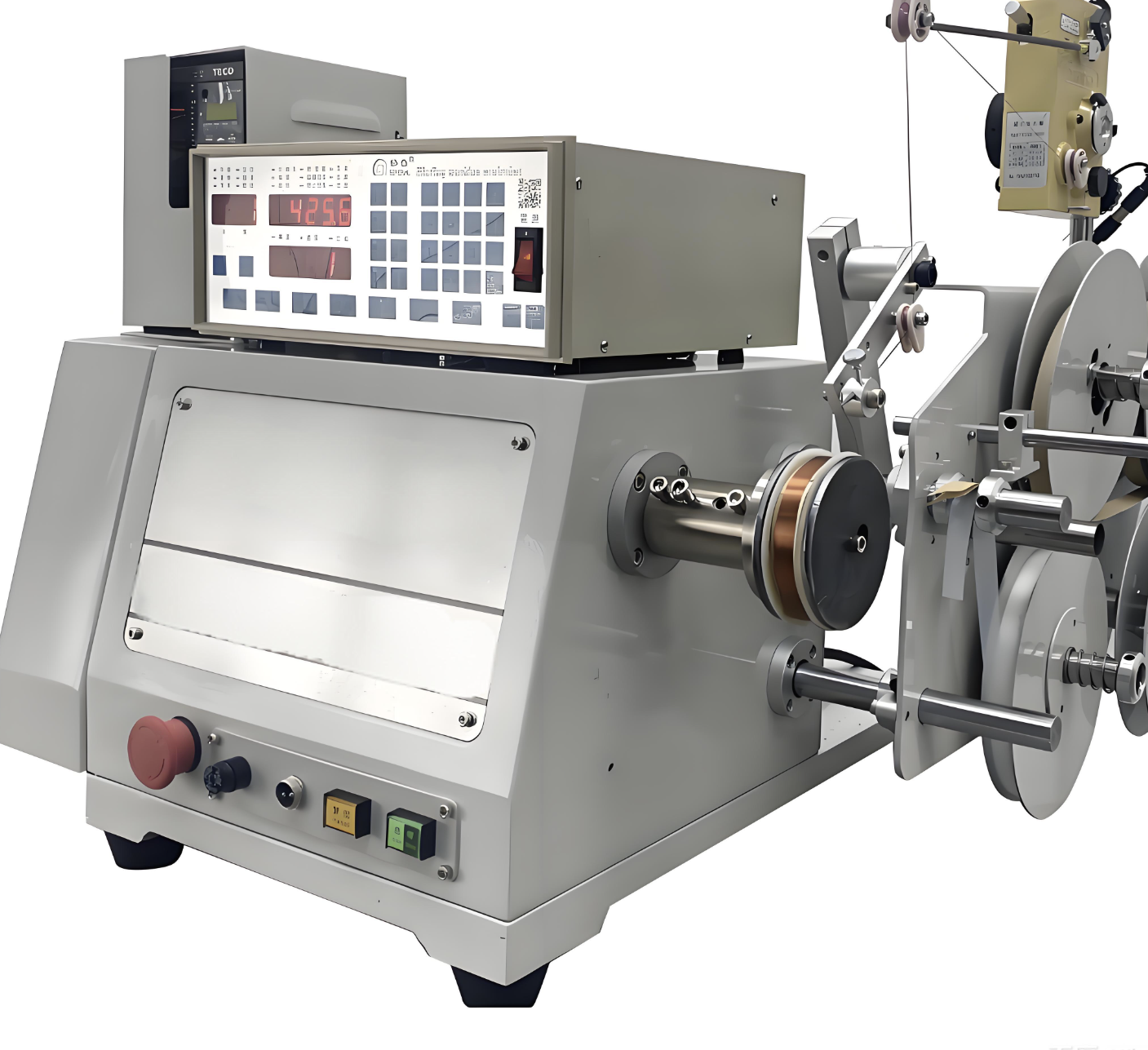

It adopts a touch-screen PLC control system that supports one-click storage and recall of winding programs, with magnetic powder tension control to ensure consistent wire tension for each loop and avoid loose coils or wire breakage. The 3-axis linkage design enables complex annular and solenoid winding, while the aluminum alloy and steel body balances lightweight portability and operational stability with operating noise below 55dB. Built-in emergency stop and overload protection mechanisms ensure operational safety, improving efficiency by over 80% compared to manual winding. It is compatible with 0.1-1.2mm diameter enameled copper wire, aluminum wire and other common electronic wires, adapting to diversified small-batch production scenarios.
The detailed technical parameters are as follows: maximum wire diameter 0.1-1.2mm, adjustable winding speed 0-1200rpm, 7-inch touch PLC control screen, power supply 110/220V 50/60Hz, total weight 25kg, overall dimensions 500mm(L)×400mm(W)×300mm(H), body material 6061 aluminum alloy + cold-rolled steel plate, spindle speed accuracy ±0.5rpm, can store 100 sets of winding programs, supports forward and reverse winding, wire tension adjustment range 0.1-5N, maximum outer diameter of compatible wire spool 200mm.
It is applicable to teaching experiments in university electronic engineering laboratories, small-batch precision coil production in small electronic processing factories, custom coil production for DIY electronics enthusiasts, production of small sensor coils for medical equipment, and antenna coil manufacturing for communication equipment. It can quickly switch between different winding modes to meet diversified small-scale coil production needs, and is especially suitable for scenarios with limited workshop space.
