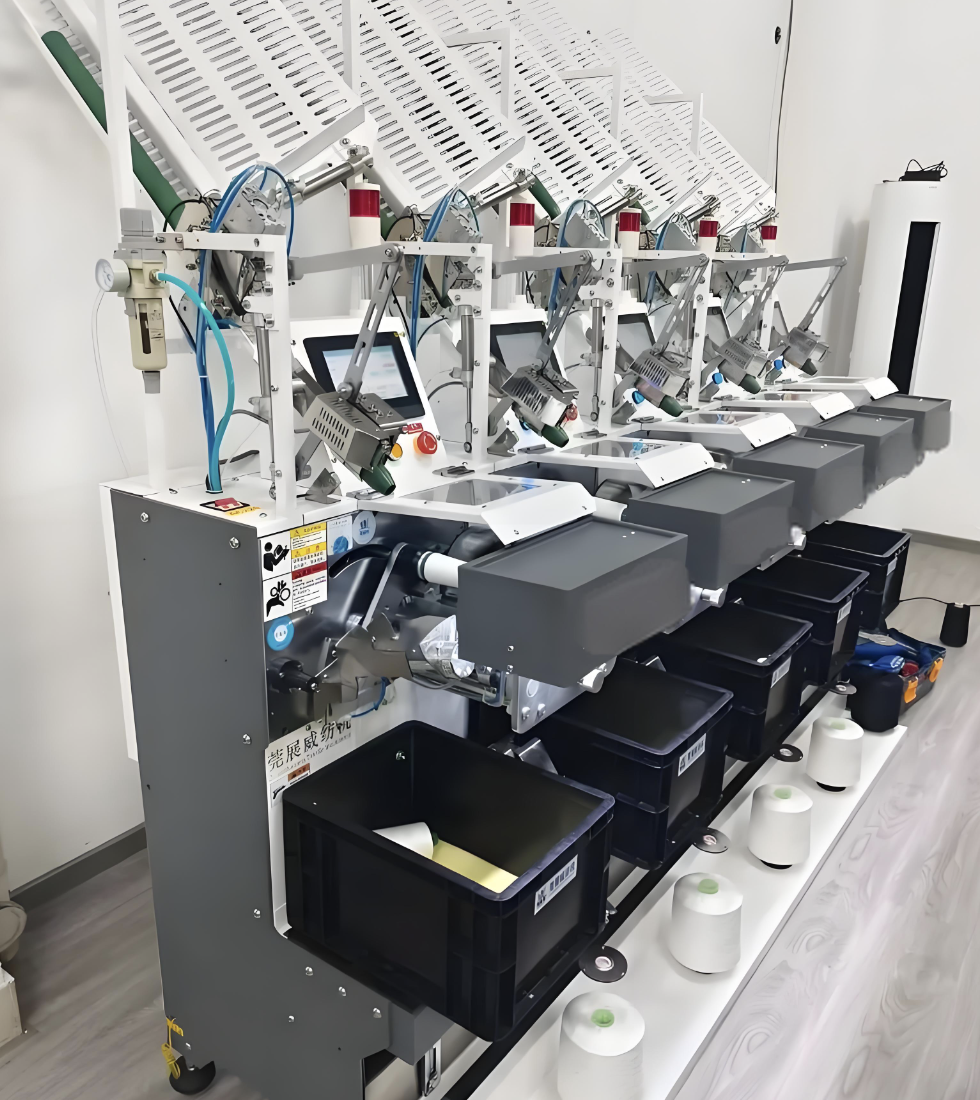

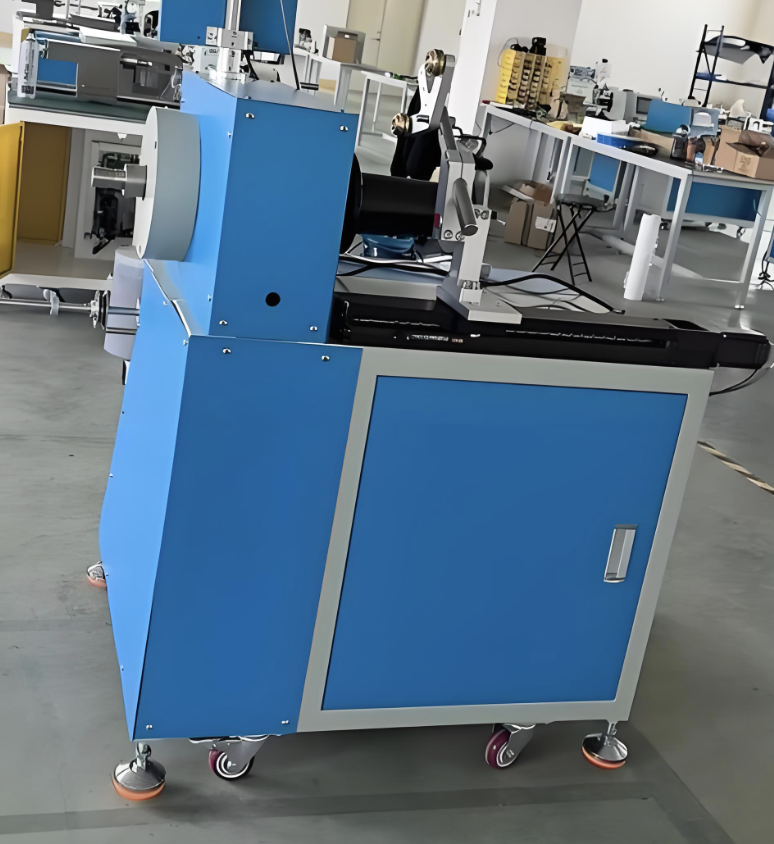

The core advantages of this machine include 1. Ultra-high winding accuracy of ±0.01mm, which can meet the production requirements of precision electronic components; 2. 8-axis synchronous winding design, which can improve production efficiency by 300% compared with single-axis equipment; 3. Built-in intelligent tension control system, which can adjust tension in real time according to wire diameter and winding speed, avoiding wire breakage and loose winding; 4. Humanized touch screen operation interface, which can store 99 sets of production processes, realizing quick switching between different product models; 5. Equipped with emergency stop protection and safety door interlock device, ensuring the personal safety of operators. Compared with similar products on the market, this machine has higher stability and longer service life, which can greatly reduce the maintenance cost of enterprises.
The specific technical parameters are as follows: Maximum wire winding diameter: 0.05-10mm; Number of spindles: 8; Rated power: 7.5 Kilowatts; Power supply: 380V 50/60Hz; Working efficiency: 1200 Pieces per hour; Maximum coil weight: 50kg; Body size: 2200*1500*1800 Millimeters; Net weight: 3200 Kilograms; Applicable wire types: Enameled copper wire, aluminum wire, alloy wire; Operation mode: Fully automatic; Maintenance cycle: 6 months.
This winding machine is widely applicable to the following scenarios: 1. New energy motor manufacturing: It can produce stator coils of brushless motors for electric vehicles and household new energy appliances; 2. Transformer and inductance production: It can meet the mass production needs of various high-precision transformers and radio frequency inductors; 3. Industrial motor processing: It can produce coils for various industrial drive motors and fan motors; 4. Educational and research institutions: It can be used for practical teaching and scientific research of coil production technology. It is an ideal equipment for enterprises pursuing high-efficiency and high-precision coil production.
