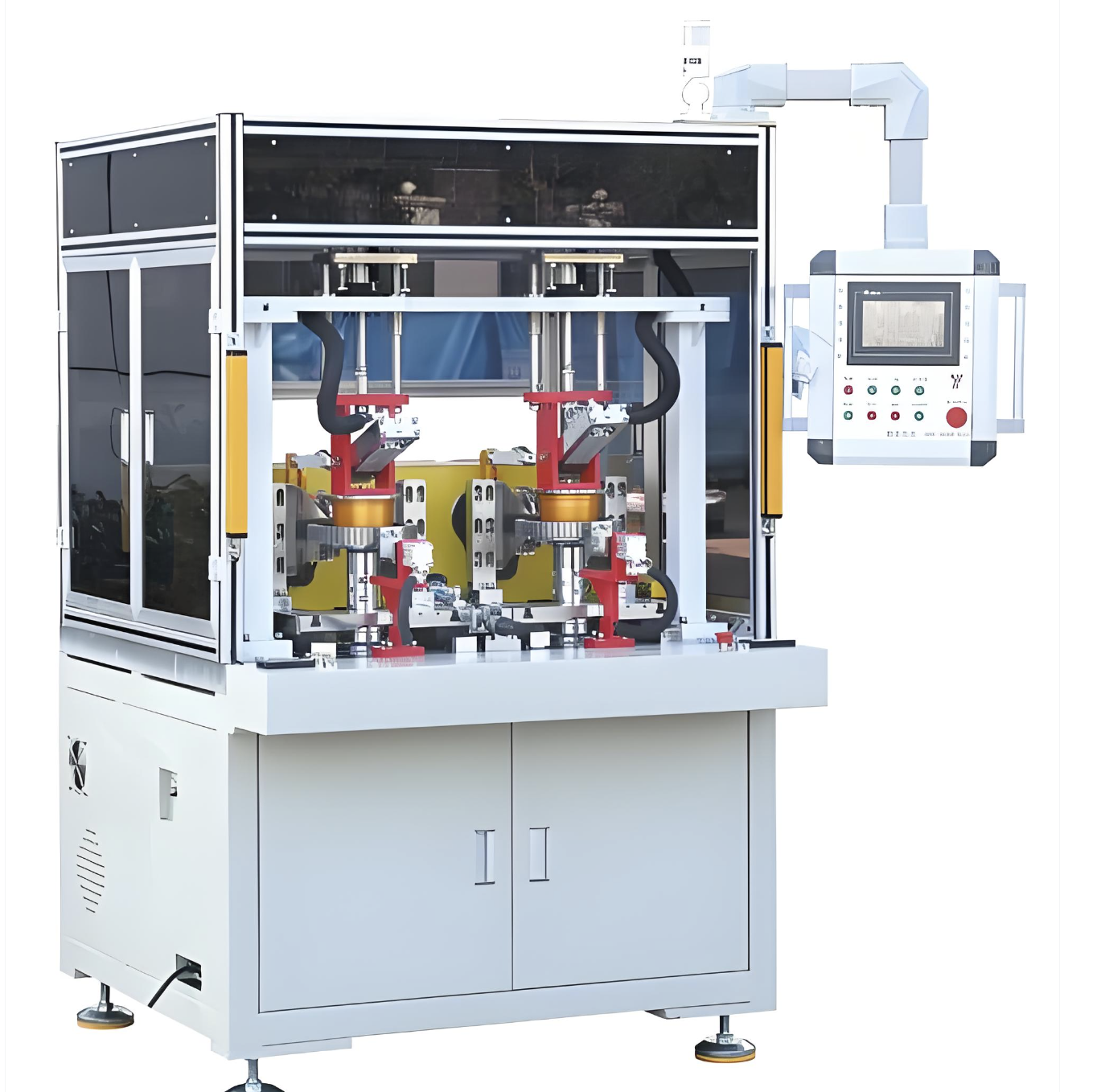

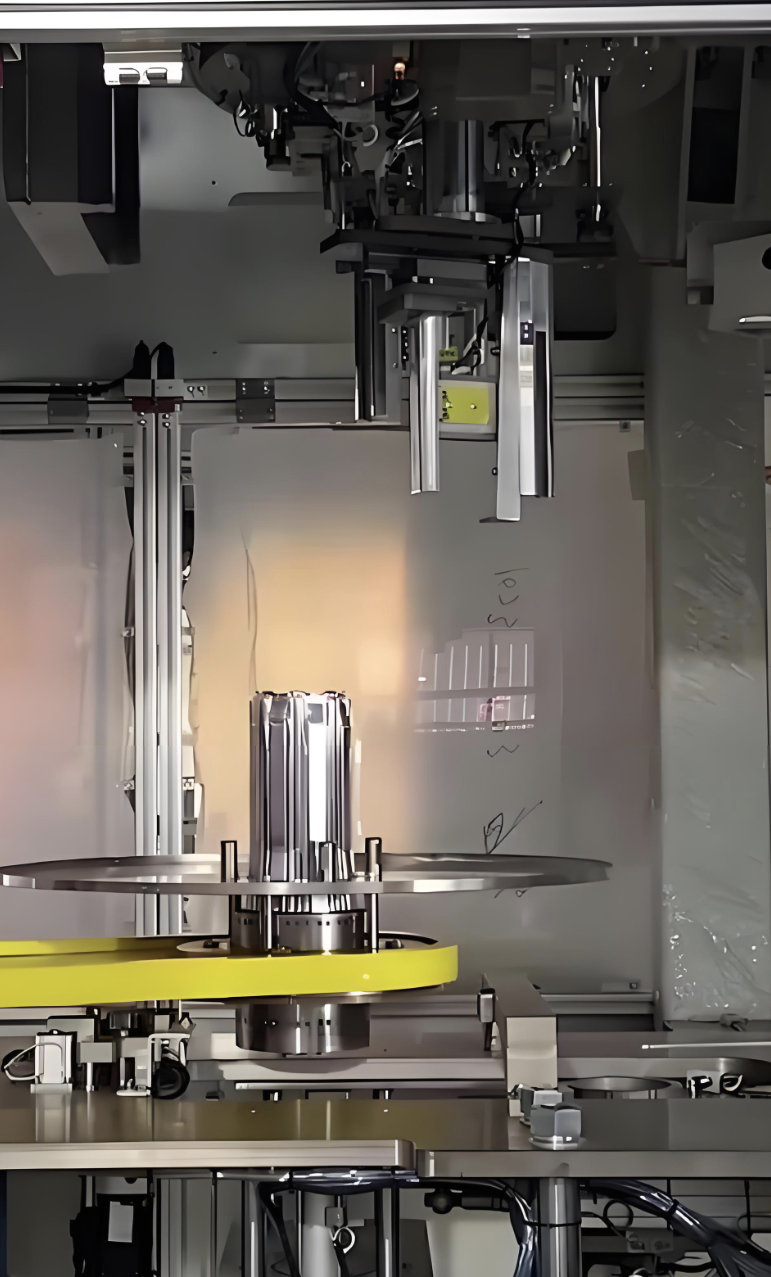

The welded steel heavy-duty frame has strong shock resistance, ensuring stable operation during high-load production. The 10-inch industrial touch screen supports the programming of complex stator winding procedures, adapting to different types of stator coils. The automatic wire feeding system avoids wire jams and wear during winding, improving production efficiency. The segment winding function can realize multi-layer and multi-turn winding of stator coils, improving the energy efficiency and power density of the motor. It is equipped with a real-time winding quality detection system, which can detect abnormal winding in time and reduce the rate of defective products.
The overall dimensions are 2500*1800*2000mm, with a net weight of 3500kg. The spindle chuck diameter is 300mm, and the maximum winding outer diameter is 500mm. It supports both round enameled wire and flat enameled wire within 0.1-2.5mm. The power consumption is about 15kW per hour. It complies with ISO9001 and IATF16949 automotive industry certification standards, and the core components adopt imported high-quality parts to ensure long-term stable operation.
It is mainly used for the mass production of new energy vehicle motor stators, industrial servo motor stators, high-power fan motor stators and other large-scale motor coil products. It is widely used in the new energy automotive industry, industrial control industry and power equipment industry, meeting the high-precision and high-volume production requirements of large motor coils.
