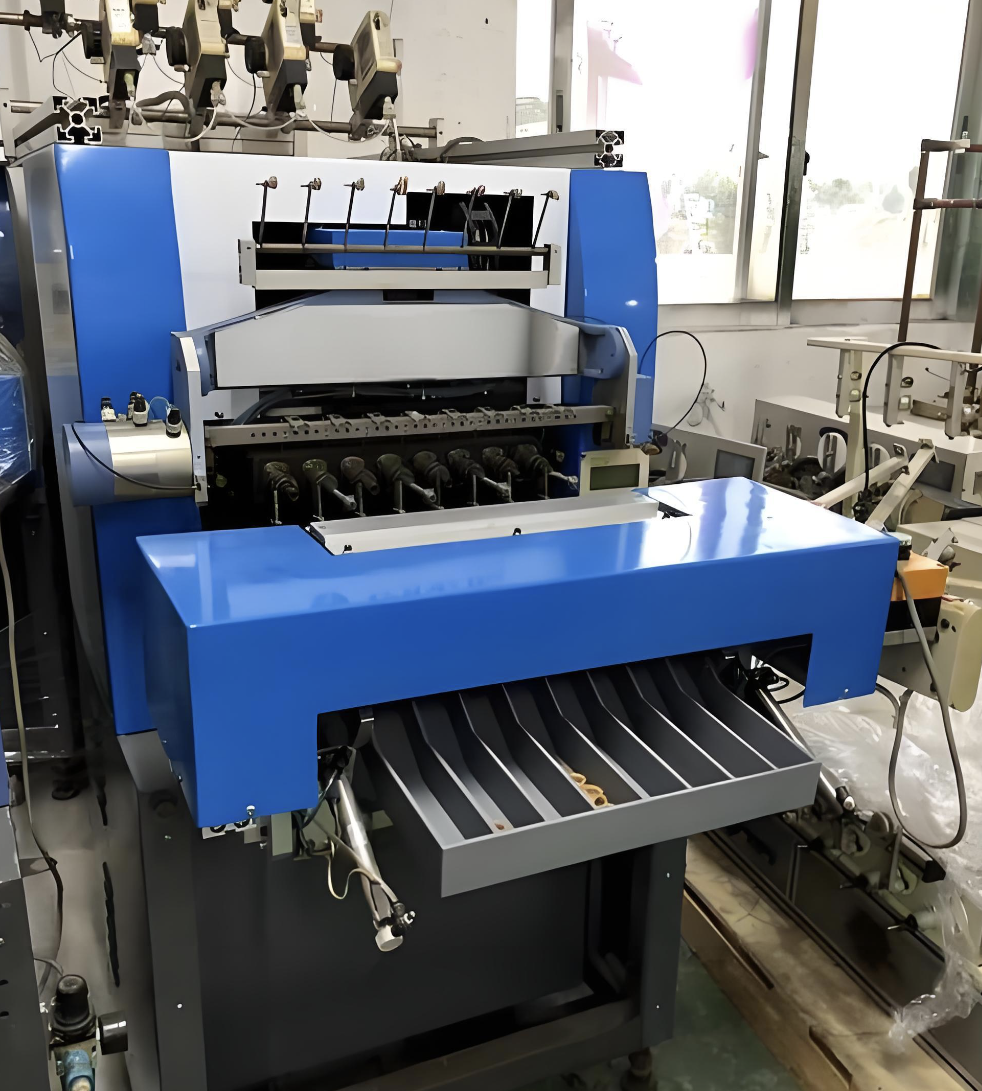

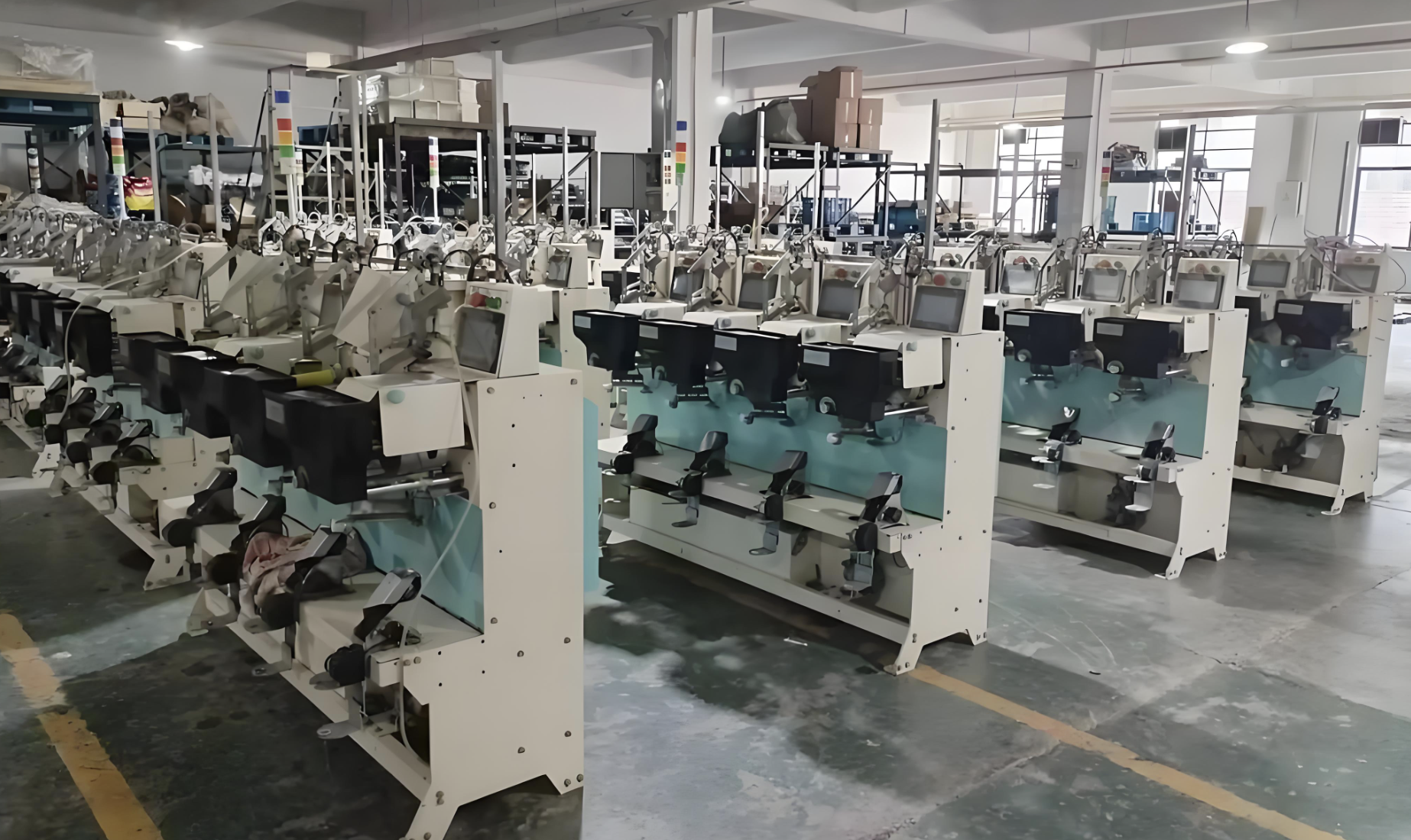

The core technical highlight is the 8-axis linkage control, which can adapt to complex coil winding tracks without multiple mold replacements. The built-in real-time tension monitoring system ensures that the wire tension is stable during the winding process, avoiding wire breakage or loose winding. The industrial touch screen supports one-key saving of production parameters, reducing debugging time for different coil specifications. It also has an automatic fault diagnosis function, which can quickly locate faults and reduce downtime. Compared with traditional semi-automatic winding machines, it can improve production efficiency by more than 250% and the qualified product rate by 98%.
The overall dimensions are 1800*1200*1600mm, with a net weight of 1200kg. The spindle chuck diameter is 80mm, and the maximum winding outer diameter is 200mm. It supports both round enameled wire and flat enameled wire within 0.1-6mm. The power consumption is about 5.5kW per hour. The equipment is equipped with a dedicated wire reel rack and a waste wire recycling device, which improves the production environment and reduces material waste. It complies with CE and ISO9001 international certification standards.
It is mainly applicable to the mass production of transformer coils, inductor coils, relay coils, small motor coils and other electronic component products. It is widely used in consumer electronics, automotive electronics, home appliances, industrial control and other industries. For example, it can be used to produce switching power supply transformers, automotive sensor coils, air conditioner compressor motor coils, etc., meeting the high-precision and high-volume production requirements of various industries.
