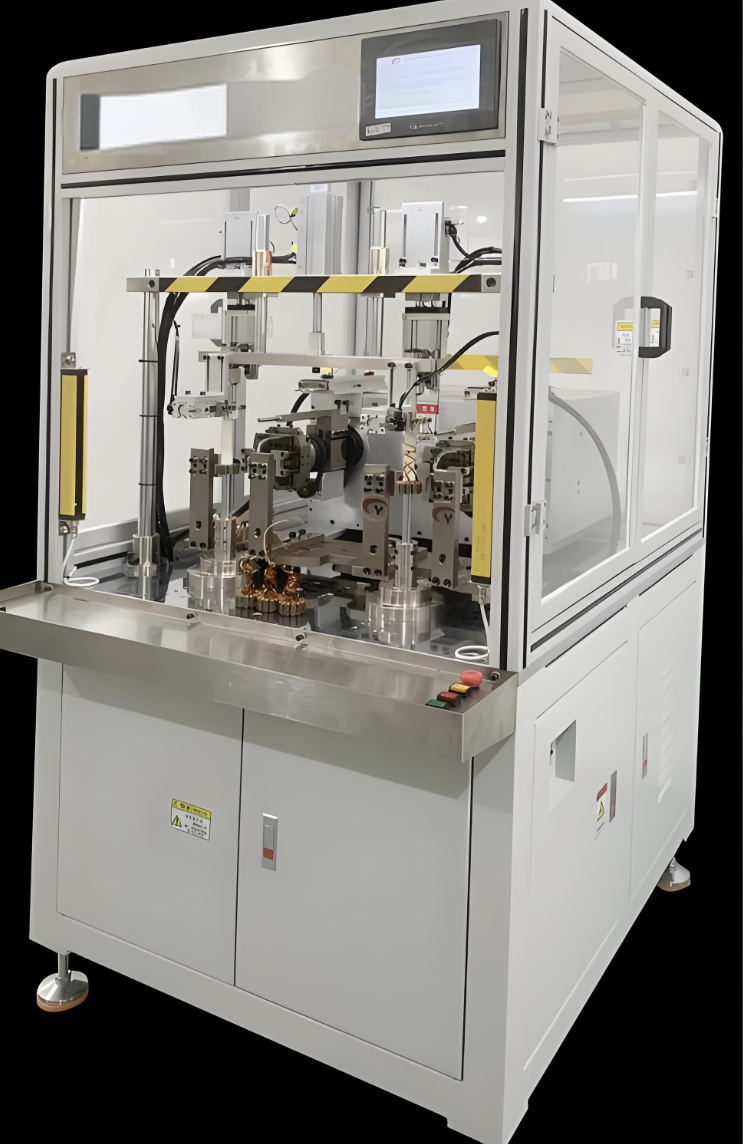

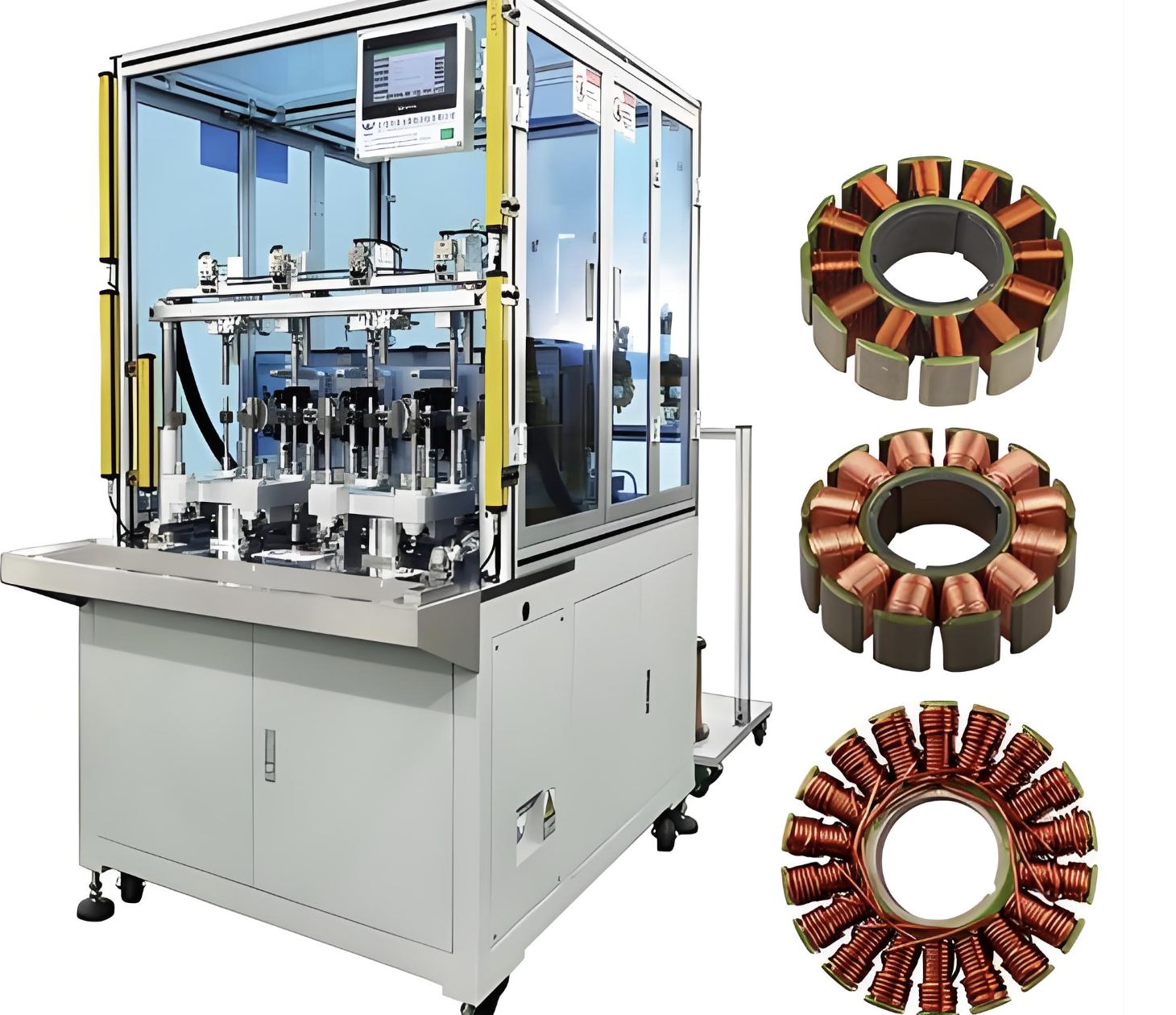

The biggest advantage of this machine is that it supports robot automatic loading and unloading, which can realize fully automated production and reduce the dependence on manual labor. It adopts a high-precision stator positioning system, with a positioning accuracy of ±0.01mm, which ensures the consistency of stator winding. The equipment is specially designed for flat wire winding, which can adapt to the winding requirements of large-section enameled copper flat wire. It is equipped with an online quality detection system, which can detect the winding quality in real time and reject unqualified products. It also supports quick replacement of fixtures, which can adapt to the production of stator of different specifications.
The overall dimensions are 3500*2500*2200mm, with a net weight of 2800kg. It is equipped with 15kW high-power servo motors, and the winding speed can be adjusted between 0-800rpm. The maximum wire passing diameter is 1.5-6mm, and the flat wire winding guide mechanism adopts a precision alloy material to avoid scratching the flat wire surface. The equipment is equipped with a fully automatic stator clamping mechanism, which can adapt to stators with an outer diameter of 100-400mm. The power consumption is about 15kW, and it is equipped with a safety protection system to ensure the safety of operators and equipment.
This machine is mainly applicable to the mass production of drive motor stators for new energy vehicles, electric motorcycles, electric trucks and industrial motors. It is widely used in large-scale new energy vehicle manufacturing bases, motor component factories and industrial equipment production enterprises, and can meet the high-volume and high-precision production requirements of motor stators.
