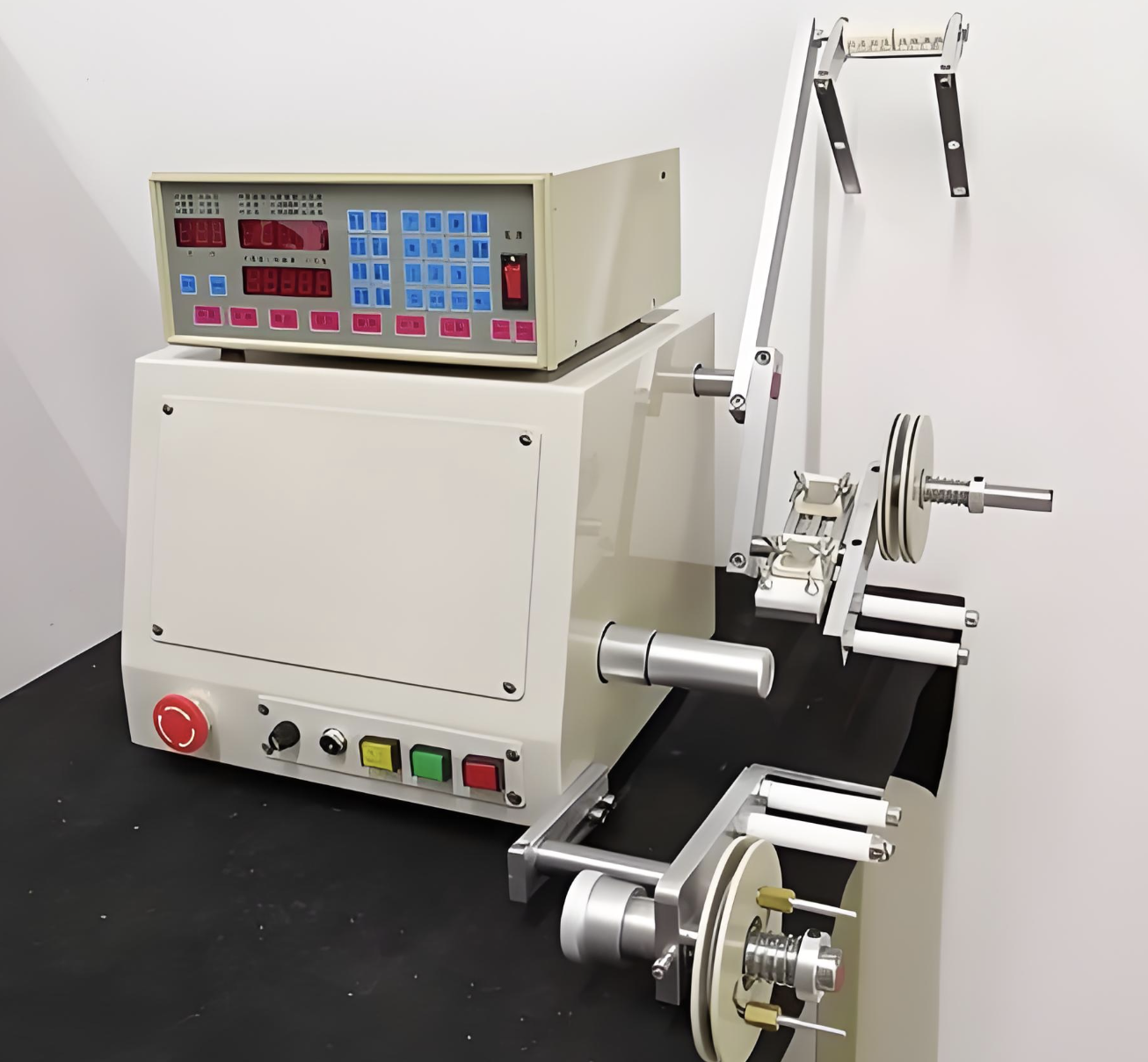

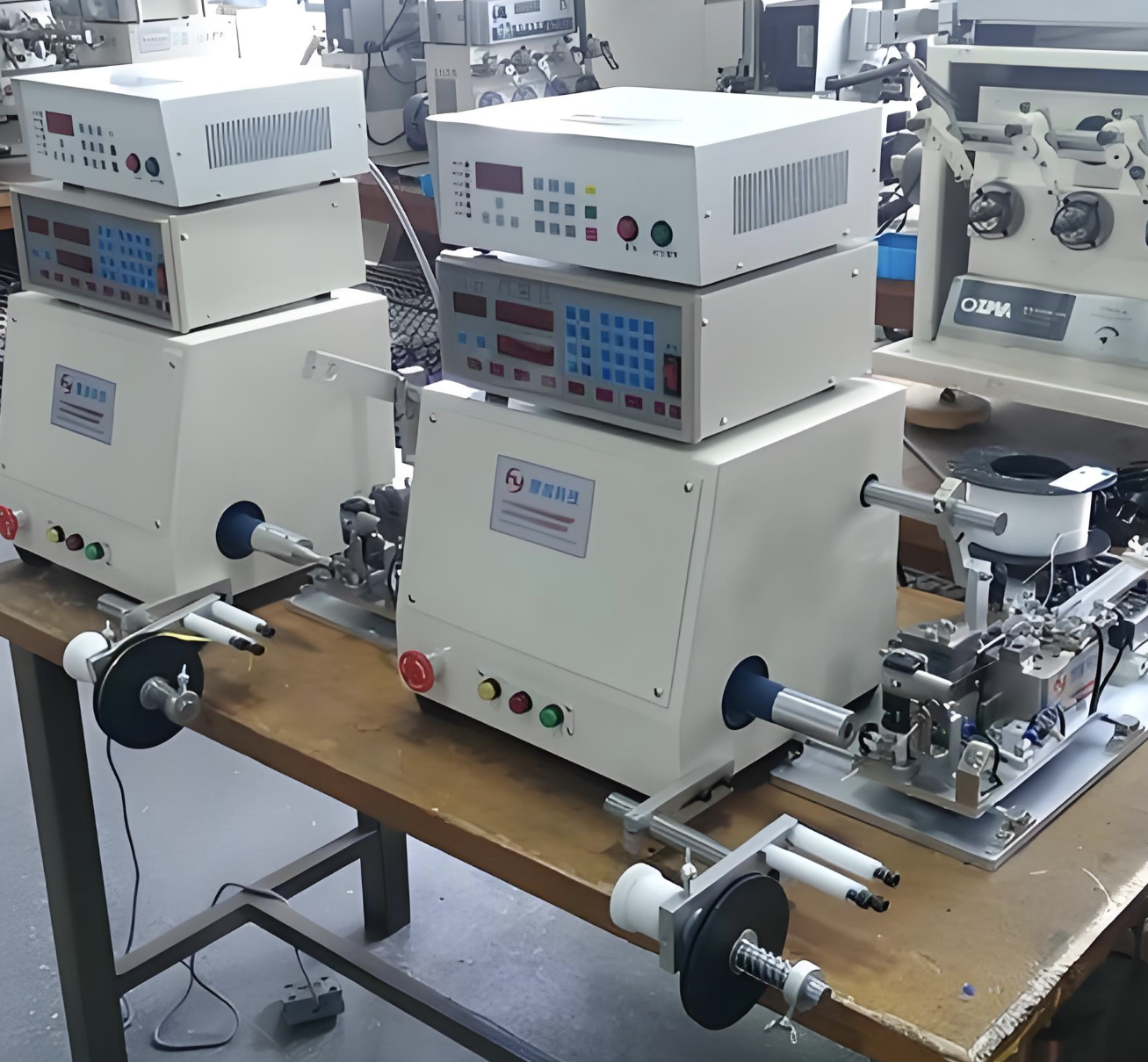

Focusing on the processing demand of micro precision coils, this machine adopts servo motor drive to ensure stable and accurate rotation of the spindle, with a winding accuracy of up to ±0.01mm. It is equipped with an automatic wire tension compensation system, which can adjust the tension in real time according to the winding speed to avoid wire breakage or loose winding. The compact structure saves workshop space, and the detachable fixture design is convenient for replacing different winding molds. It supports one-key storage of processing parameters, which can quickly reproduce the production process and reduce the difficulty of operation for beginners. Compared with manual winding, it improves the production efficiency by more than 3 times and ensures the consistency of product quality.
Overall dimensions: 650mm (length) * 450mm (width) * 700mm (height); Total weight: 35kg; Power supply: 110/220V 50/60Hz, rated power 0.75kW; Maximum winding speed: 1200rpm; Maximum usable wire diameter: 1.2mm (enameled wire); Spindle speed control range: 50-1200rpm; Winding turns setting range: 1-99999; Control mode: PLC touch screen Chinese/English interface; Cooling mode: natural air cooling; Applicable fixture range: φ0.5-φ50mm winding mandrel; Wire guide system: precision linear guide rail.
Mainly applicable to the production of micro electronic components, including earphone voice coils, micro solenoid valves, small signal transformers, sensor coils, medical micro induction coils and other precision winding parts. It is suitable for small and medium-sized electronic component processing factories, university scientific research laboratories, voice coil manufacturing workshops and hardware processing enterprises that need small-batch customized winding products. It can also be used for teaching and training of mechanical and electronic professional courses.
