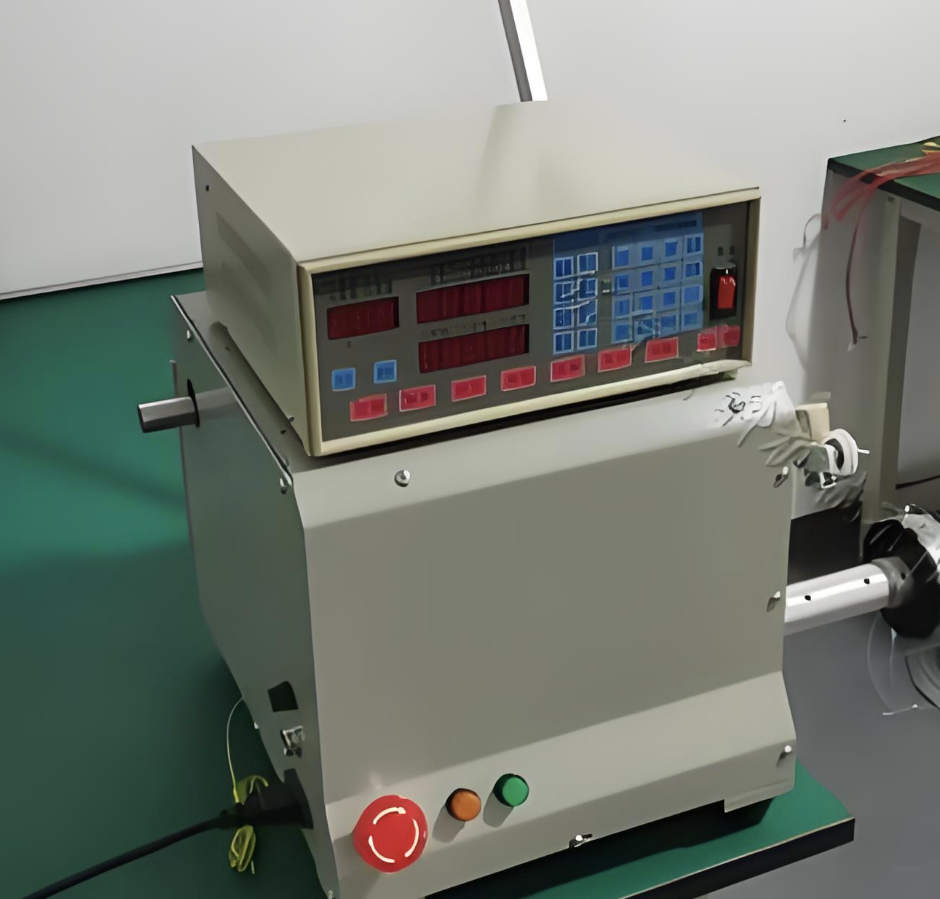

The main features of this machine include: 1. 8-axis synchronous winding design, which can produce 8 coils at the same time, improving production efficiency by 400% compared with single-axis equipment; 2. Ultra-high winding accuracy of ±0.005mm, which can meet the production requirements of high-precision electronic components such as 0402 SMD inductors; 3. Intelligent tension control system, which can adjust tension in real time according to wire diameter and winding speed, avoiding wire breakage and coil deformation; 4. Automatic wire arranging mechanism, which can accurately control the distance between coil turns, ensuring the consistency of coil inductance; 5. Touch screen human-computer interaction interface, which can quickly set production parameters and store production recipes. Compared with similar products, this machine has higher stability and lower failure rate, which can reduce the maintenance cost of enterprises.
Specific technical parameters: Number of spindles: 8 Axles; Maximum wire winding diameter: 0.03-2mm; Winding accuracy: ±0.005mm; Wire arranging distance: 0.01-5mm Adjustable; Control system: PLC + Servo Control; Power supply: 220V 50/60Hz; Rated power: 5.5 Kilowatts; Working efficiency: 3600 Pieces per hour; Applicable coil types: SMD inductor, RF coil, chip inductor, small transformer coil; Body size: 1800*1200*1600 Millimeters; Net weight: 2100 Kilograms; Applicable wire types: Enameled copper wire, silver-plated copper wire, alloy wire.
This multi-axis winding machine is widely used in the following fields: 1. Electronic component manufacturing: Producing SMD inductors, radio frequency coils and chip inductors for consumer electronics, communication equipment and medical electronics; 2. Consumer electronics production: Such as coils for mobile phones, headphones and smart watches; 3. Communication equipment manufacturing: Producing coils for base stations, antennas and other communication products; 4. Medical electronics: Producing precision coils for medical equipment such as hearing aids and medical sensors. It is an ideal equipment for electronic component factories pursuing mass production and high precision.
