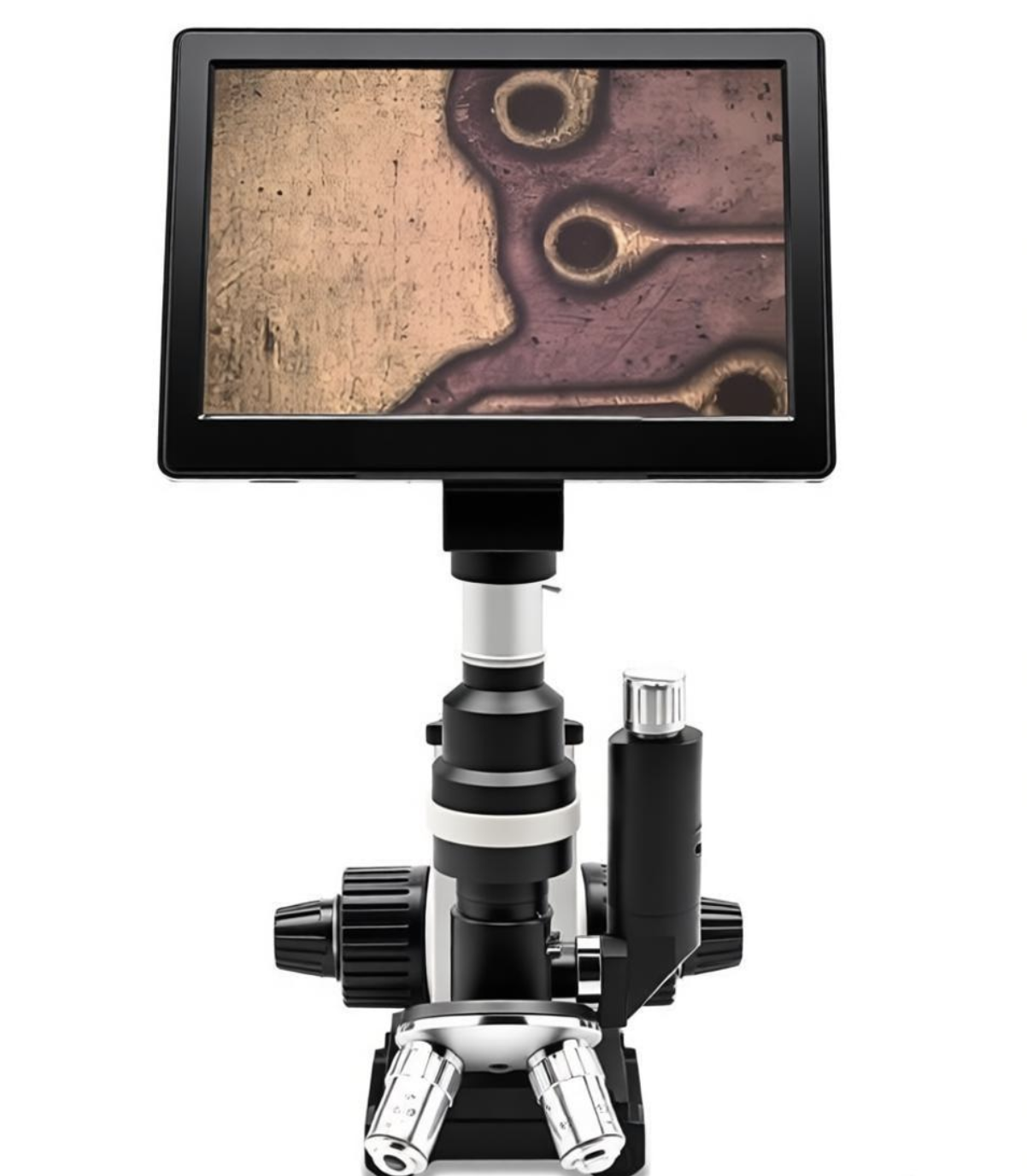

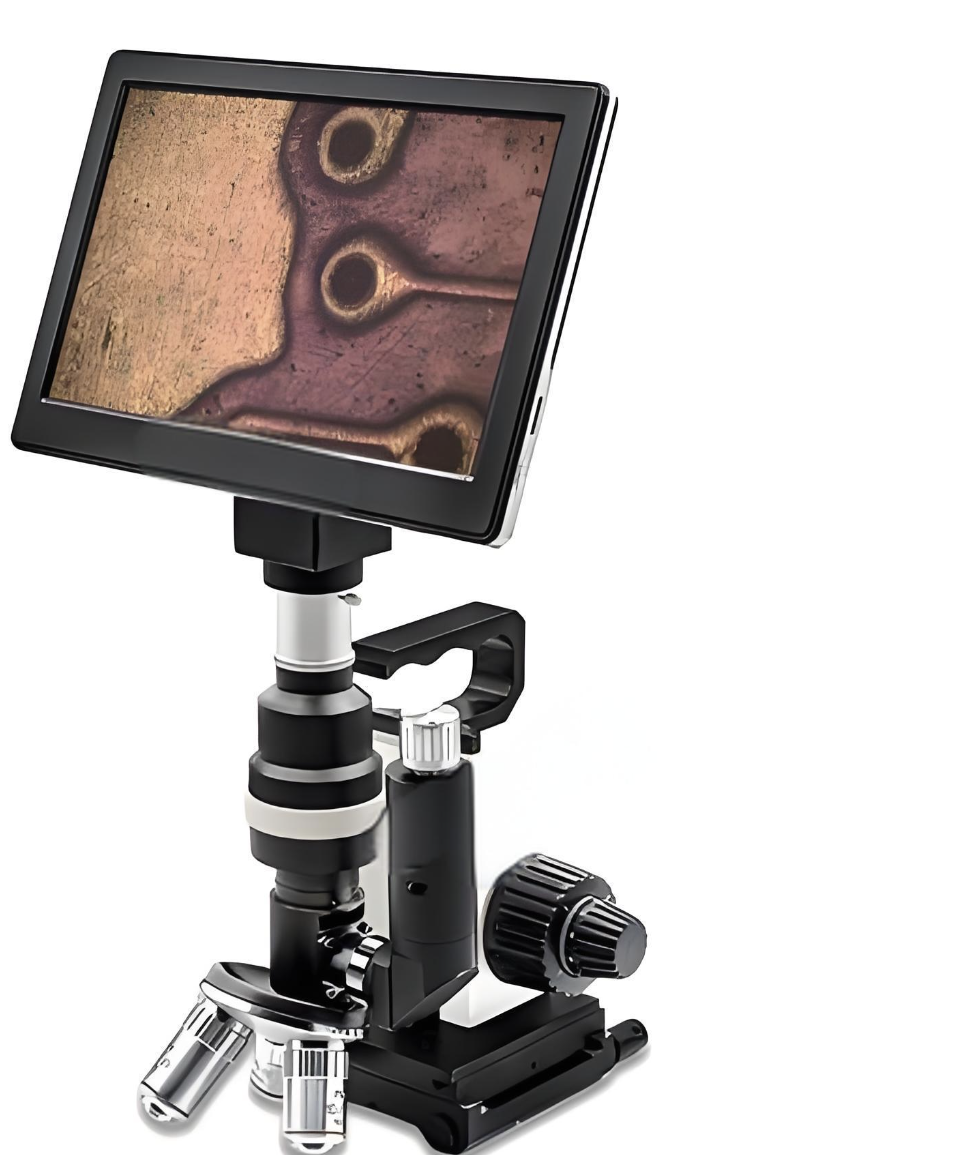

This digital metallurgical microscope breaks the use restrictions of traditional metallurgical microscopes that need external equipment. It has a built-in 12-megapixel CMOS imaging sensor and a 10.1-inch high-definition touch screen, which can directly observe metallographic samples on the screen without looking through the eyepiece. The automatic focusing system can quickly and accurately focus, without manual adjustment of the focal length, solving the pain points of traditional microscopes such as time-consuming focusing and difficult operation for novices. The built-in professional metallographic analysis software can automatically identify parameters such as grain size, inclusion proportion and defect location, and generate standardized test reports with one click, supporting export to PDF, JPEG and other formats for archiving and sharing. The device supports WiFi, USB 3.0 and HDMI connections, which can synchronize the observation screen to a large display for teaching demonstrations, and can also realize remote observation and operation through the remote control function. The LED cold light source has low power consumption and long service life, avoiding the problem of high heat generation of traditional halogen lamps, and is suitable for long-term continuous use. The overall dust-proof and water-proof design is suitable for complex working environments such as workshops.
This all-in-one digital metallurgical microscope has a magnification range of 50x to 2000x, equipped with 4 semi-apochromatic objectives, matched with a 10x wide-field eyepiece, and has a built-in 12MP CMOS imaging sensor with an imaging resolution of 4032*3024. It is equipped with a 10.1-inch 1920*1200 high-definition touch screen, supports multi-touch operation, and has a built-in 32GB high-speed storage memory, which can store more than 10,000 high-definition metallographic images. The illumination system adopts LED coaxial reflected light and transmitted light dual modes, with stepless adjustable brightness, and the service life of the light source can reach 100,000 hours. It is equipped with an automatic focusing system with a focusing stroke of 15mm and a focusing accuracy of 0.005mm, supporting one-click automatic focusing and manual fine-tuning. The built-in professional metallographic analysis software supports functions such as grain size measurement, inclusion rating and tissue proportion analysis, and can directly generate standardized test reports. The body is equipped with WiFi, USB 3.0 and HDMI interfaces, supports external keyboards, mice or large displays, and is also equipped with a remote control function, supporting mobile phone or computer remote control of the device. The overall size is 580*420*520mm, with a net weight of 10.8kg, adopts an aluminum alloy shell and dust-proof design, and is equipped with an anti-theft lock port, suitable for workshop and office scenarios. It adopts a 110/220V wide voltage design, with a power consumption of less than 50W during normal use.
This all-in-one digital metallurgical microscope is applicable to rapid batch testing of small and medium-sized metal testing enterprises, and can complete image collection and report generation without professional computer operators; experimental teaching of material majors in colleges and universities, allowing all students to observe metallographic samples synchronously through a large screen; rapid material verification of R&D teams, collecting and analyzing data in real time to generate reports and shorten the R&D cycle; parts failure analysis of auto repair shops, quickly detecting wear and defects of engine components; and metal internal structure analysis of jewelry testing institutions, verifying the material and process quality of precious metal jewelry.
