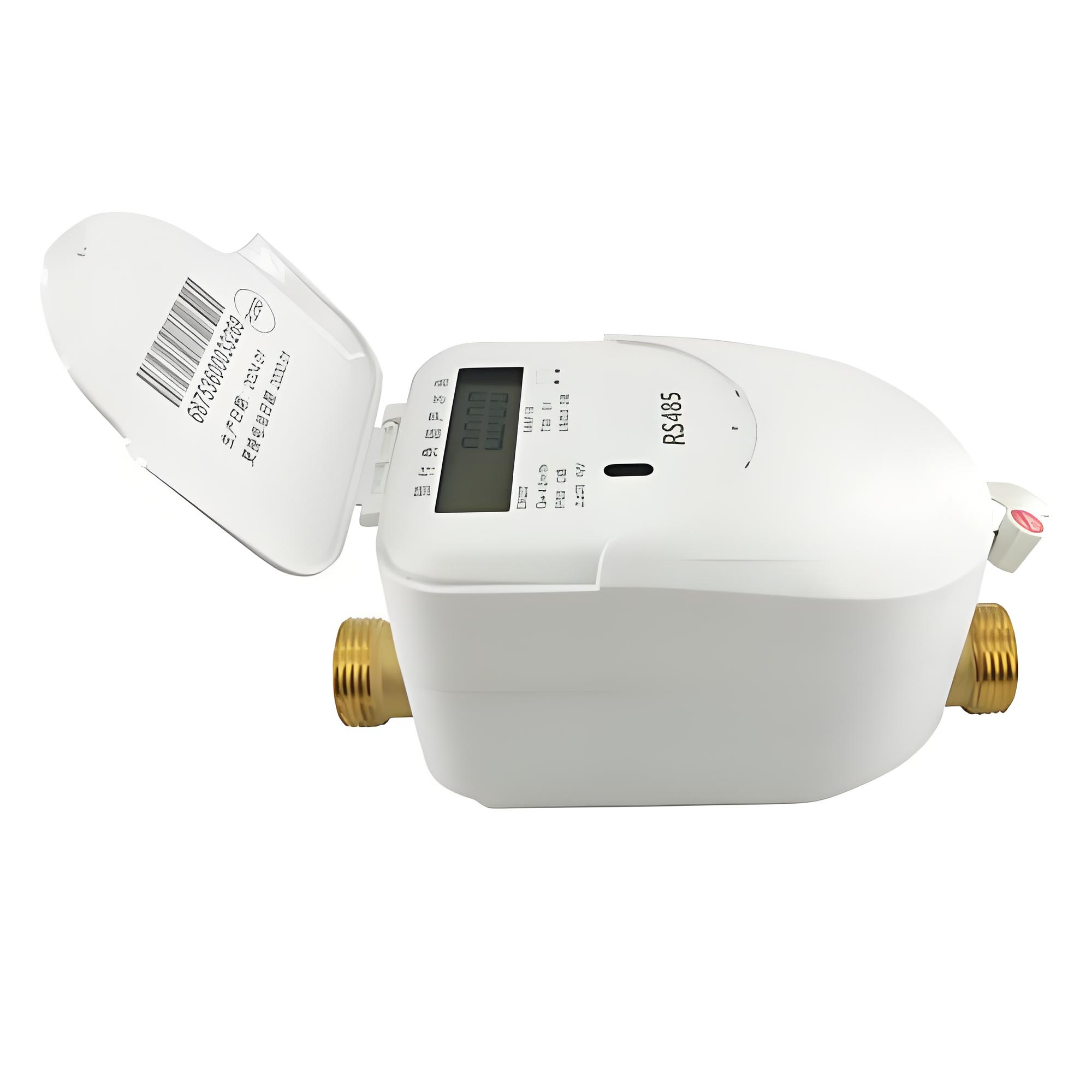

Embedded Ultrasonic Water Meter

Product features:

This embedded ultrasonic water meter is designed for seamless integration into commercial water equipment such as integrated water purifiers, industrial circulation systems and smart water supply units, providing compact and accurate flow measurement without occupying additional installation space. Unlike traditional external water meters, its low-profile design can be mounted directly inside equipment cabinets or piping systems, reducing overall equipment size and simplifying installation. It uses MQTT communication protocol, enabling seamless connection to cloud-based industrial IoT platforms, allowing real-time monitoring of water flow and consumption data from remote locations. The Class 1 accuracy per ISO 4064 standards ensures precise measurement across a wide flow range, making it suitable for both low-demand and medium-volume water systems. Its 316 stainless steel probe and ABS housing provide excellent corrosion resistance and durability, even in harsh industrial environments with aggressive water quality.

Product specifications:

Measurement Accuracy: Class 1 (ISO 4064); Flow Range: 0.01~50 m³/h; Communication Protocol: MQTT 3.1.1; Power Supply: DC12V ±10%; Probe Material: 316 stainless steel; Housing Material: ABS plastic; Operating Temperature: -10℃~70℃; Protection Rating: IP68; Data Storage: 2 years of historical consumption data; Interface Specification: DN25 to DN100 quick-connect flange; EMC Compliance: Industrial grade EN 61326; Optional Features: Water quality monitoring (pH, turbidity, TDS); Net Weight: 2.2 kg (base model); Dimensions: 180mm (L) × 100mm (W) × 80mm (H)

Product application:

This embedded ultrasonic water meter is applicable to flow measurement in commercial water purifiers, pipeline flow monitoring in industrial circulation systems, water usage statistics in smart direct drinking fountains, built-in metering in integrated water supply equipment and compact industrial water usage scenarios. It helps equipment manufacturers and industrial users achieve accurate water usage data monitoring and management, improve the intelligent level and operation and maintenance efficiency of equipment, and reduce the installation space and cost of overall equipment.
