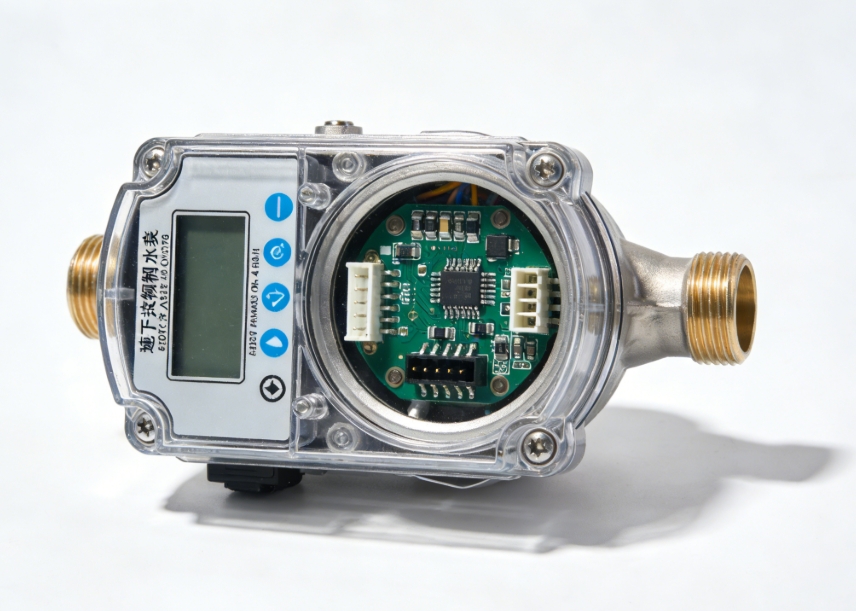

Compared with ordinary outdoor water meters, this product adopts a fully embedded underground design, with a reinforced plastic shell that can withstand a maximum ground pressure of 500kg, suitable for installation in public road wells or community parking lot wells. The IP68 protection rating can prevent water immersion and moisture corrosion, ensuring stable operation in humid underground environments for a long time. The LORA communication technology has a long transmission distance, which can realize data transmission of more than 5km in open areas, and does not need to lay special communication lines. The brass internal core ensures the accuracy and safety of water metering, and meets food safety standards. It also supports remote fault diagnosis and early warning, helping managers quickly locate the location of abnormal meters.
Thread specification: DN15 (1/2 inch); Total length: 110mm; Body diameter: 80mm; Weight: 2.1kg; Battery: 3.6V lithium thionyl chloride battery; Communication frequency: 868/915MHz optional; Operating voltage range: 3.2-3.6V; Storage temperature: -25~60℃; Shell material: Glass fiber reinforced plastic; Internal core material: Lead-free brass; Sealing material: Viton rubber; Maximum allowable error: ±2% under normal flow, ±5% under minimum flow.
Mainly applicable to municipal pipe network branch metering, community shared water supply points, rural outdoor water supply meters, and road edge water meters. It can be installed directly in underground wells without occupying ground space, and will not affect the normal use of roads or communities. Municipal managers can remotely monitor the water usage of each branch meter, timely detect pipeline leaks and abnormal water usage, and adjust the water supply plan in time. For rural areas with poor network conditions, the LORA communication technology can ensure stable data transmission, solving the problem of difficult remote management of traditional outdoor water meters.
