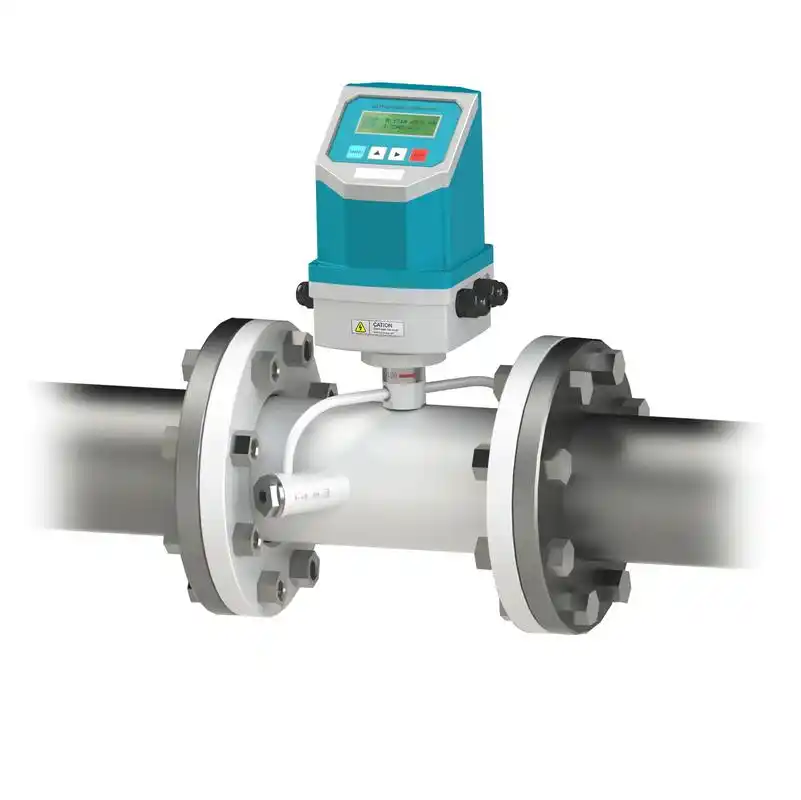

Industrial Ultrasonic Water Flow Meter

Product features:

This industrial ultrasonic water flow meter eliminates the wear and tear issues common in turbine-style industrial water meters, reducing annual maintenance costs by over 80% while delivering Class 1 accuracy per ISO 4064 standards across a wide flow range of 0.1 to 1000 m³/h. Its 4G/NB-IoT communication enables real-time data transmission to cloud-based monitoring platforms, allowing facility managers to track water usage trends, detect abnormal flow patterns and generate automated billing reports. The dual power supply design ensures uninterrupted operation during power outages, and the IP67 waterproof rating protects the unit from dust and temporary water immersion. It supports Modbus RTU protocol integration with existing industrial control systems, providing seamless data connectivity for enterprise-wide resource management. The 304 stainless steel housing provides excellent corrosion resistance for long-term use in harsh industrial environments.

Product specifications:

Measurement Accuracy: Class 1 (ISO 4064); Flow Range: 0.1~1000 m³/h; Communication Method: 4G/NB-IoT, Modbus RTU; Power Supply: AC220V ±10% + 3.7V backup lithium battery; Housing Material: 304 stainless steel; Operating Temperature: -10℃~80℃; Protection Rating: IP67; Display Type: 7-inch color backlit LCD; Data Storage: 365 days of historical consumption data; Interface Specification: DN50 to DN500 flange connection; Net Weight: 25~150 kg (varies by model size); Dimensions: 600mm (L) × 400mm (W) × 300mm (H) (base model)

Product application:

This meter is suitable for municipal water supply pipe network zoning metering, production and domestic water metering in large factories, central air conditioning circulation water metering in commercial complexes, effluent flow monitoring in sewage treatment plants and channel flow measurement in water conservancy projects. It helps enterprises and municipal departments achieve accurate water usage statistics and cost control, improving the efficiency of water supply management and supporting sustainable water resource utilization.
