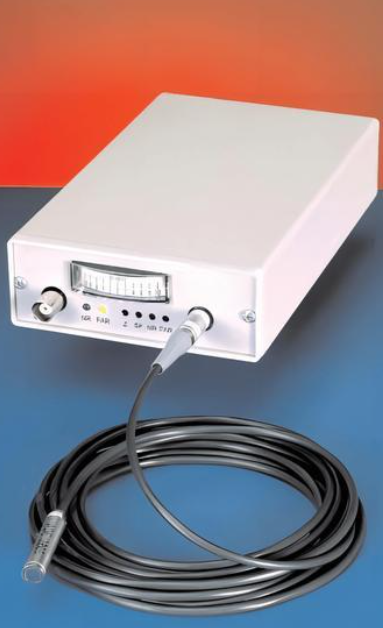

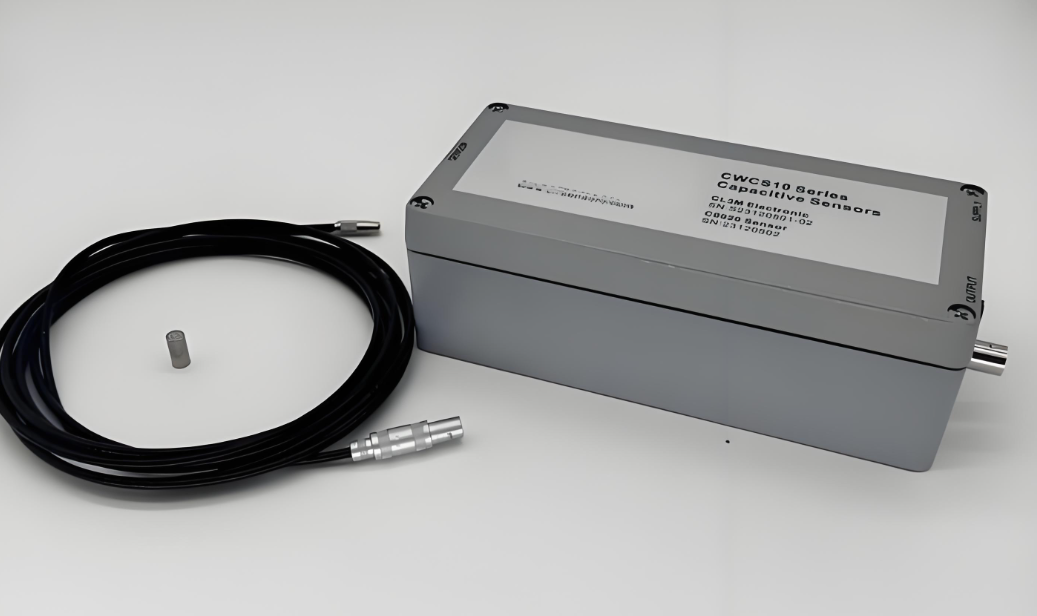

The core feature of this capacitive displacement sensor is its flexible mounting method, which supports magnetic suction and double-sided adhesive mounting, which can be installed on any smooth surface quickly without professional installation tools. It is specially designed for non-metallic material detection, and will not cause any damage to the measured surface. Compared with other non-contact displacement sensors, it has a lower price, which is suitable for small and medium-sized enterprises and laboratory testing scenarios. It has good anti-static interference performance, and can work stably in ordinary industrial environments.
This sensor has a measuring range of 0-100mm, with a measurement accuracy of ±0.05% F.S. and a resolution of 0.01mm. It supports two output modes of 0-10V and 4-20mA, which can be adapted to different data acquisition systems. The power supply ranges from 12V DC to 36V DC, and it can work stably in the temperature range of -10℃ to +50℃. The housing is made of ABS plastic, with overall dimensions of 80mm × 60mm × 30mm and a net weight of 0.3kg. It is equipped with matching magnetic mounting base and double-sided adhesive for flexible installation.
This capacitive displacement sensor is suitable for plastic film thickness detection, glass panel displacement monitoring, wood processing size detection, laboratory material deformation detection, packaging sealing position detection, and non-metallic material surface flatness detection. It can provide accurate displacement data for small-scale production and laboratory testing, helping enterprises and research institutions realize real-time monitoring and data collection of non-metallic materials.
