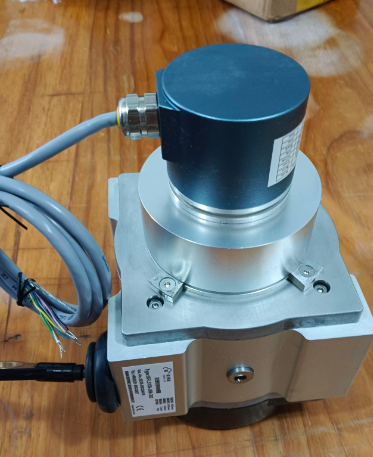

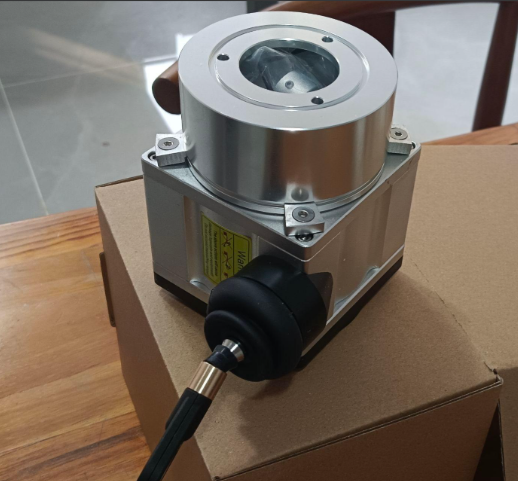

The core technical advantage of this draw-wire displacement transducer lies in its wear-resistant stainless steel wire transmission structure, which ensures long service life of over 1 million cycles. It supports multiple output signal options to adapt to different industrial control systems, and the IP65 protection grade makes it suitable for outdoor and humid industrial environments. Compared with traditional displacement sensors, it has the advantages of simple installation, high measurement accuracy, and low maintenance cost, effectively solving the problems of difficult displacement detection in narrow spaces and harsh working conditions.
.
This transducer has a measuring range of 0-1000mm (customizable ranges from 0-100mm to 0-5000mm are available), with a measurement accuracy of ±0.1% F.S. and a resolution of 0.01mm. It adopts an aluminum alloy housing with stainless steel wire, with overall dimensions of 120mm × 80mm × 60mm and a net weight of 1.2kg. The power supply ranges from 12V DC to 24V DC, and it can work stably in the temperature range of -20℃ to +70℃. It supports multiple mounting methods including flange and bolt fixing, and is compatible with most industrial control systems through standard electrical interfaces.
This draw-wire displacement transducer is widely applicable to water conservancy gate displacement monitoring, small engineering machinery stroke detection, elevator travel positioning, logistics conveying equipment position detection, bridge expansion joint monitoring, and hydraulic cylinder stroke monitoring. It can provide accurate displacement data for industrial automation production lines, equipment condition monitoring, and engineering structure safety detection, helping enterprises achieve real-time monitoring and early warning of equipment status.
