Equipped with aviation aluminum alloy pressure-resistant shell, which can withstand 100MPa downhole pressure and adapt to high water pressure deep hole operation environment. Adopts high-precision fiber optic gyroscope sensor, with measurement accuracy up to ±0.02°, which is much higher than the industry average. Supports two data transmission methods: wired and wireless RF, which can transmit downhole measurement data in real time. The built-in large-capacity lithium battery can work continuously for 8 hours, and with external power supply, it can realize long-term operation. With IP68 waterproof grade, it adapts to downhole humid environment. The body adopts modular design, which is convenient for on-site disassembly and maintenance, and comes with automatic calibration function, no need for frequent manual debugging, greatly improving operation efficiency.

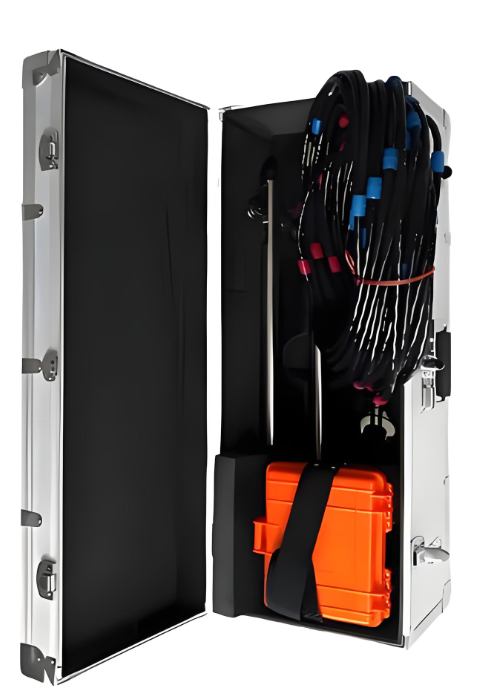

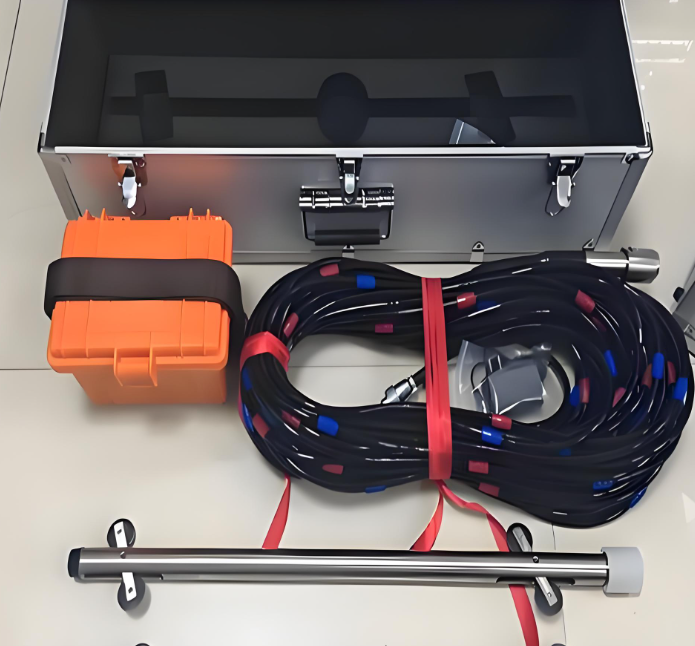

Measurement range is ±30°, measurement accuracy is ±0.02°, maximum detection depth is 1200 Meters, pressure resistance grade is 100MPa, waterproof grade is IP68, power supply is built-in 3.7V 5000mAh lithium battery + external 12V DC power supply, data transmission supports RS485 wired transmission and 433MHz wireless RF, storage capacity is 32000 sets of data, body dimensions Φ76mm ×320mm, total weight 2.5 Kilograms, material is 7075 aviation aluminum alloy, operating temperature range -20℃ to 60℃, comes with special portable box and calibration tools.
It is suitable for oil drilling borehole verticality detection, mineral exploration borehole inclinometer, building pile foundation depth detection, tunnel construction advanced borehole monitoring, water conservancy project dam borehole inclination detection and other scenarios. It can help the engineering team master the verticality deviation of borehole construction in real time, adjust construction parameters in time, and avoid engineering accidents caused by borehole deviation.
